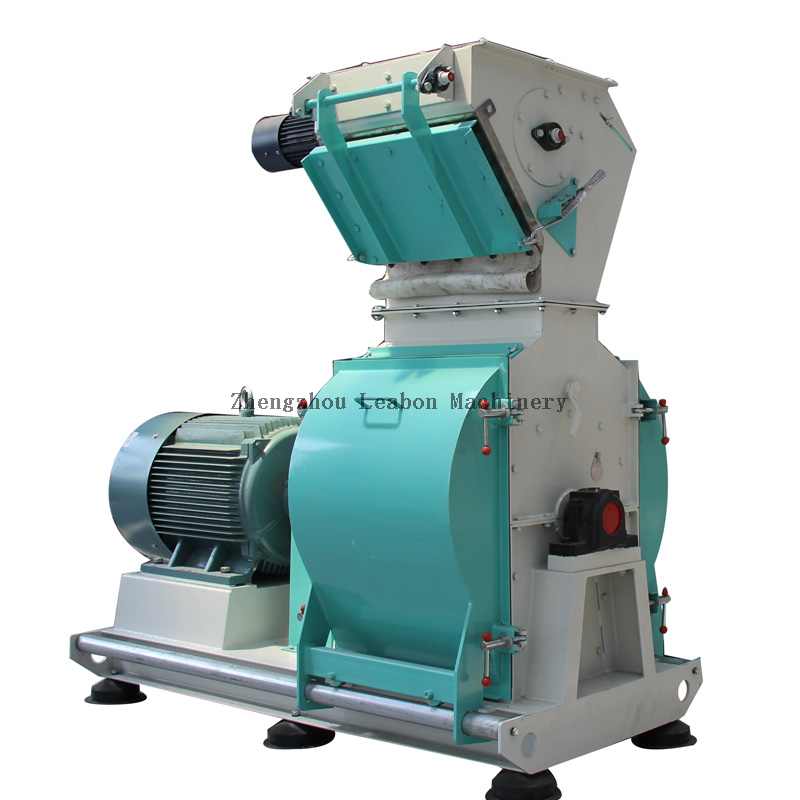

Introduction:
It is adopted international modern technique; crush room is designed to be water drip figure. Secondary crushing can increase output by 25%. Adjustable hammer-screen space can optimize hammers’ arrangement. One mill can work as ordinary crusher and micro crusher.
Full open operating door; coordinated screen fixing device; easy to replace and repair screen. It is widely used in feed factories to produce poultry feed, aquatic feed; also in alcohol plants, citric acid plants, food product factories to crush pellet material.
Main technical parameter:
Model | SFSP56 x 30 | SFSP56 x 36 | SFSP56 x 40 |
Rotor diameter(mm) | 560 | 560 | 560 |
Main shaft rotation speed (rpm) | 2950 | 2950 | 2950 |
Hammer's linear speed(m/s) | 86 | 86 | 86 |
Crushing chamber width(mm) | 300 | 360 | 400 |
Hammer Q’ty(pcs) | 16 | 20 | 24 |
Power (kw) | 11 | 22 | 37 |
Capacity (t/h) | 1-2 | 3-4 | 5-6 |
Dimension(mm) | 1400x860x1000 | 1430x860x1000 | 1630x860x1000 |
Performance characteristic:
1.Widely used in large-scale feed mills, food factories, farms and other industries.
2.Suitable for crushing all kinds of granular materials, such as: corn, sorghum, wheat, beans, sawdust, etc., is an ideal general-purpose hammer mill.
3.Rotor through precision balancing test, vibration, long life.
4. Special heat treatment after machining hammer, screen, pin long life, high grinding
efficiency.
5. Operating door with a self-locking device, convenient and flexible, safe and reliable.
Application

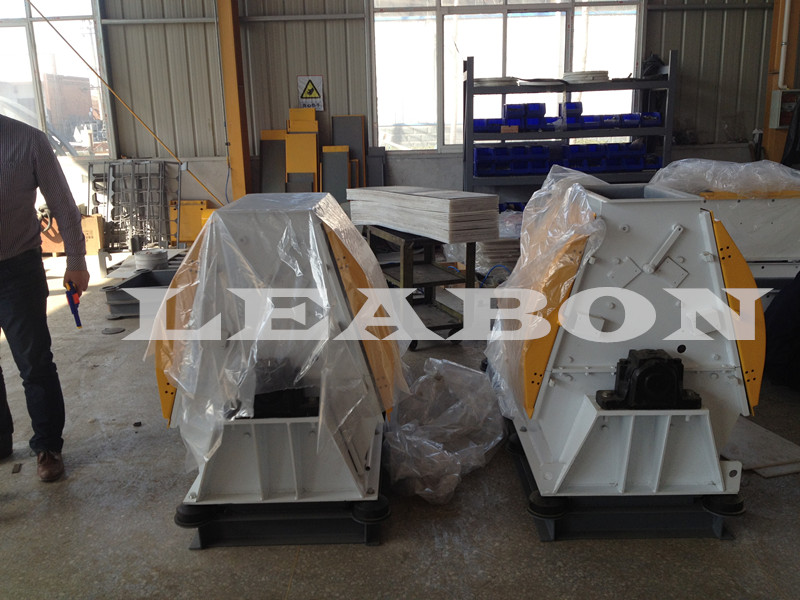

Export Package
Introduction:
It is adopted international modern technique; crush room is designed to be water drip figure. Secondary crushing can increase output by 25%. Adjustable hammer-screen space can optimize hammers’ arrangement. One mill can work as ordinary crusher and micro crusher.
Full open operating door; coordinated screen fixing device; easy to replace and repair screen. It is widely used in feed factories to produce poultry feed, aquatic feed; also in alcohol plants, citric acid plants, food product factories to crush pellet material.
Main technical parameter:
Model | SFSP56 x 30 | SFSP56 x 36 | SFSP56 x 40 |
Rotor diameter(mm) | 560 | 560 | 560 |
Main shaft rotation speed (rpm) | 2950 | 2950 | 2950 |
Hammer's linear speed(m/s) | 86 | 86 | 86 |
Crushing chamber width(mm) | 300 | 360 | 400 |
Hammer Q’ty(pcs) | 16 | 20 | 24 |
Power (kw) | 11 | 22 | 37 |
Capacity (t/h) | 1-2 | 3-4 | 5-6 |
Dimension(mm) | 1400x860x1000 | 1430x860x1000 | 1630x860x1000 |
Performance characteristic:
1.Widely used in large-scale feed mills, food factories, farms and other industries.
2.Suitable for crushing all kinds of granular materials, such as: corn, sorghum, wheat, beans, sawdust, etc., is an ideal general-purpose hammer mill.
3.Rotor through precision balancing test, vibration, long life.
4. Special heat treatment after machining hammer, screen, pin long life, high grinding
efficiency.
5. Operating door with a self-locking device, convenient and flexible, safe and reliable.
Application
Export Package
Model | SFSP60*30 | SFSP60*38 | SFSP60*45 | SFSP60*60 | SFSP60*75 | ||||||
Rotor diameter(mm) | 600 | 600 | 600 | 600 | 600 | ||||||
Spindle speed(rpm) | 2980 | 2980 | 2980 | 2980 | 2980 | ||||||
Hammer's linear speed (m/s) | 94 | 94 | 94 | 94 | 94 | ||||||
Width of the grinding chamber (mm) | 300 | 300 | 450 | 600 | 750 | ||||||
Hammer Q’ty(pcs) | General crushing | 24 | 32 | 36 | 48 | 60 | |||||
Fine crushing | 40 | 56 | 64 | 88 | 120 | ||||||
Power (kw) | 18.5 | 22 | 22 | 37 | 45 | 55 | 55 | 75 | 75 | 90 | |
Capacity (t/h) | 3.5 | 3-5 | 3-5 | 5-7 | 6-9 | 7-10 | 7-11 | 9-12 | 10-13 | 10-14 | |
Dimension (m) | 1.78*0.84*1.2 | 1.83*0.84*1.2 | 1.93*0.84*1.2 | 1.98*0.84*1.2 | 2.08*0.84*1.2 |
Model | SFSP60*30 | SFSP60*38 | SFSP60*45 | SFSP60*60 | SFSP60*75 | ||||||
Rotor diameter(mm) | 600 | 600 | 600 | 600 | 600 | ||||||
Spindle speed(rpm) | 2980 | 2980 | 2980 | 2980 | 2980 | ||||||
Hammer's linear speed (m/s) | 94 | 94 | 94 | 94 | 94 | ||||||
Width of the grinding chamber (mm) | 300 | 300 | 450 | 600 | 750 | ||||||
Hammer Q’ty(pcs) | General crushing | 24 | 32 | 36 | 48 | 60 | |||||
Fine crushing | 40 | 56 | 64 | 88 | 120 | ||||||
Power (kw) | 18.5 | 22 | 22 | 37 | 45 | 55 | 55 | 75 | 75 | 90 | |
Capacity (t/h) | 3.5 | 3-5 | 3-5 | 5-7 | 6-9 | 7-10 | 7-11 | 9-12 | 10-13 | 10-14 | |
Dimension (m) | 1.78*0.84*1.2 | 1.83*0.84*1.2 | 1.93*0.84*1.2 | 1.98*0.84*1.2 | 2.08*0.84*1.2 |
