Easy Operation 3-6T/H Large Capacity Tree Shredder Drum Type Wood Chipper with Conveyor
You are here: Home » Products » Chipping Process » Easy Operation 3-6T/H Large Capacity Tree Shredder Drum Type Wood Chipper with Conveyor
Easy Operation 3-6T/H Large Capacity Tree Shredder Drum Type Wood Chipper with Conveyor

loading

Easy Operation 3-6T/H Large Capacity Tree Shredder Drum Type Wood Chipper with Conveyor Easy Operation 3-6T/H Large Capacity Tree Shredder Drum Type Wood Chipper with Conveyor
Easy Operation 3-6T/H Large Capacity Tree Shredder Drum Type Wood Chipper with Conveyor Easy Operation 3-6T/H Large Capacity Tree Shredder Drum Type Wood Chipper with Conveyor
Easy Operation 3-6T/H Large Capacity Tree Shredder Drum Type Wood Chipper with Conveyor Easy Operation 3-6T/H Large Capacity Tree Shredder Drum Type Wood Chipper with Conveyor
Easy Operation 3-6T/H Large Capacity Tree Shredder Drum Type Wood Chipper with Conveyor Easy Operation 3-6T/H Large Capacity Tree Shredder Drum Type Wood Chipper with Conveyor
Easy Operation 3-6T/H Large Capacity Tree Shredder Drum Type Wood Chipper with Conveyor Easy Operation 3-6T/H Large Capacity Tree Shredder Drum Type Wood Chipper with Conveyor
Easy Operation 3-6T/H Large Capacity Tree Shredder Drum Type Wood Chipper with Conveyor Easy Operation 3-6T/H Large Capacity Tree Shredder Drum Type Wood Chipper with Conveyor

Easy Operation 3-6T/H Large Capacity Tree Shredder Drum Type Wood Chipper with Conveyor

$ 10000 / set

Size:
Availability:
Quantity:
  • BX series

  • LEABON

Large Capacity Tree Shredder Drum Type Wood Chipper
Product Description

Easy Operation 3-6T/H Large Capacity Tree Shredder Drum Type Wood Chipper with Conveyor

Introduction:
The machine is made up of airframe, knife roller, and feed roller, conveyer belt, hydraulic system components.
1Drum chipper series product is the special equipment, production of wood products are widely applied in particieboard factory, and the high density fiberboard, stubble, biomass power plant, wood factory industries and manufacturer of preparation before production units. The product structure, advanced materials, cutting of high quality raw light adaptability, convenient operation and maintenance. The main raw materials are cutting wood, wood cutting, paths using (such as the branches, branches, and the slab, attrib wattle, logs, waste veneer, etc), and it can also be used to cutting non-wood materials (such as sugar cane, reed, bamboo, etc.)

3
It is special equipment for high quality wood chips. It is widely used in stock workshop section of industrial manufacture, for example, the flake board, fiber board, building board, straw power plant.


The drum chipper is of compact structure, easy operation, high capacity, wide raw materials adaptability, high quality, safe and reliable, convenient maintenance.

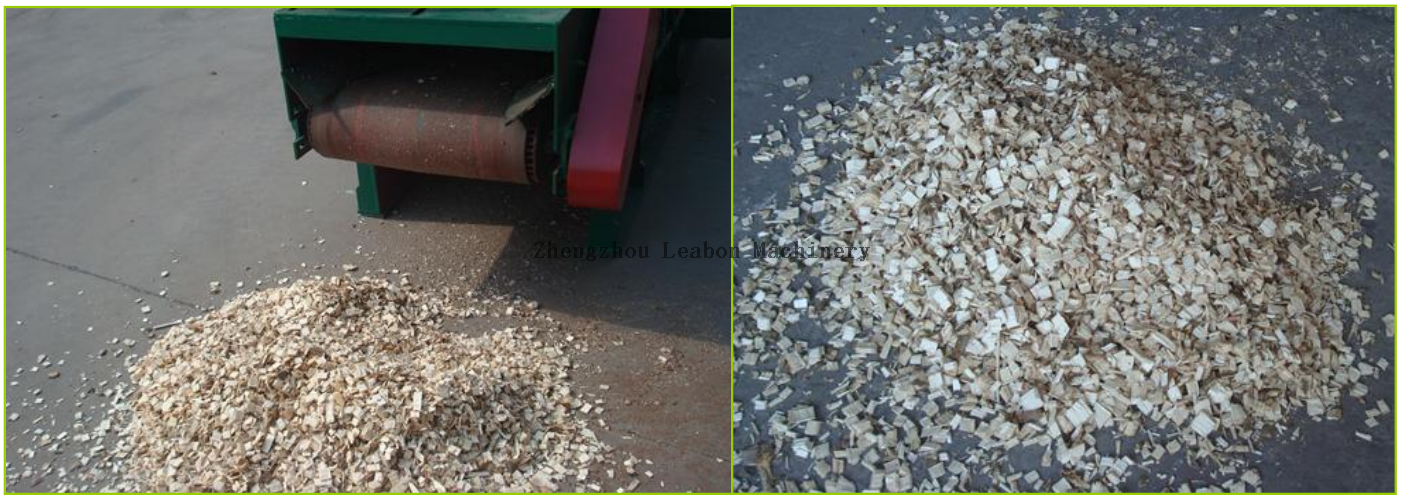

Detail photos:

5

More pictures:

单机与加传送带的

Customer using site:

客户生产现场1

Technical Data Sheet

Main data:

       Model       knife roller Dia (mm)       knife Qty (pcs)       Input Opener  (mm)       Input Max Diameter  (mm)       Chips size
       (thickness /length,mm)
       Power
       (KW)
       Rotary speed/rpm       Capacity    tons/hour       Overall size (mm)       Weight   (kg)
       BX-215
       (small size)
       500       2-4       540x200       150       3-8/10-35       45+7.4       595       3-6       1800*1800*1150       3100
       BX-315
       (no need concrete-base)
       500       2-4       540x200       150       3-8/10-35       45+8.9       595       3-6       2600*1800*1400       3380
       BX-216
       (need concrete-base)
       650       2-4       540x260       210       3-8/10-35       45-55+9.2       592       8-12       2000*2000*1250       4420
       BX-316
       (no need concrete-base)
       650       2-4       540x260       210       3-8/10-35       45-55+11       592       8-12       3100*2000*1500       4680
       BX-218
       (need concrete-base)
       800       2-4       680*310       260       3-8/10-35       110+12.5       650       15-25       2400*2180*1500       7120
       BX-318
       (no need concrete-base)
       800       2-4       680*310       260       3-8/10-35       110+14.7       650       15-25       3500*2180*1800       8320
       BX-2113
       (big size model)
       1300       2-4       700*360       300       3-8/10-35       220+17       520       30-50       3680*2450*2050       11850
       BX-2116
       (super size model)
       1600       2-4       1200*400       350       3-8/10-35       350+24       500       60-80       7700*2960*2200       19600
