Feature:
1) The length of the work table has 3 dimension-1000mm, 1200mm and 1500mm.
2) The nominal pressure is 30ton, 40ton, 50ton and so on depend on different model.
3) We can design the splitter with different pressure according to the customers' request.

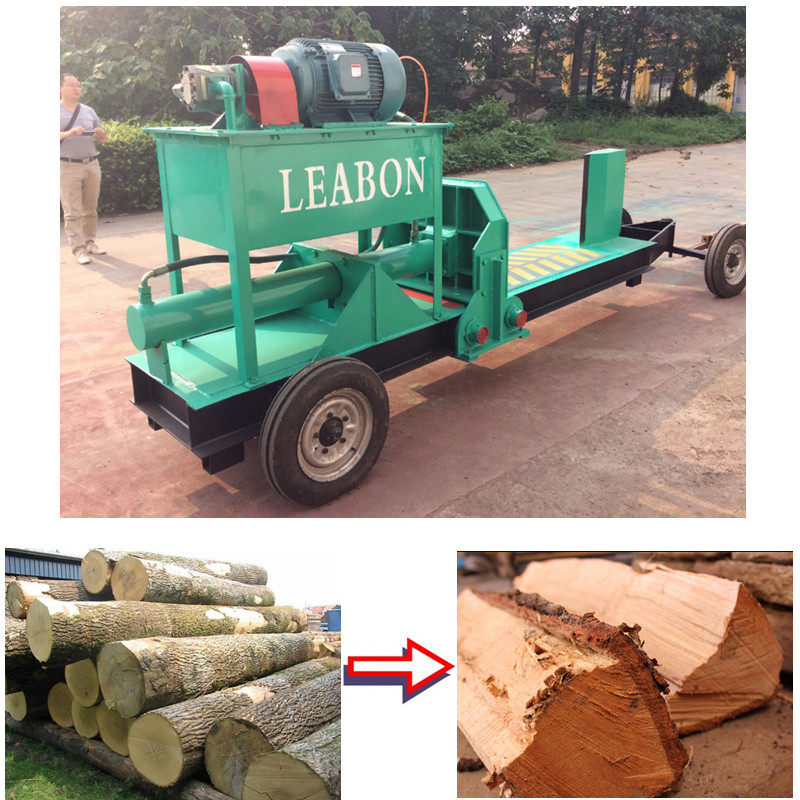

4) The horizontal type splitter is more convenient to operate. The power can be electric motor or diesel engine depends on customers' need. We also can design it to be mobile type with tires which can be attached to tractor or car.
Feature:
1) The length of the work table has 3 dimension-1000mm, 1200mm and 1500mm.
2) The nominal pressure is 30ton, 40ton, 50ton and so on depend on different model.
3) We can design the splitter with different pressure according to the customers' request.
4) The horizontal type splitter is more convenient to operate. The power can be electric motor or diesel engine depends on customers' need. We also can design it to be mobile type with tires which can be attached to tractor or car.
Model | Working platform size (mm) | Max. Log Length (mm) | Max Log Diameter (mm) | Power (KW) | Oil cylinder pressure (tons) | Overall size (mm) | Weight (kg) |
WP-800 | 800x600 | 800 | 500 | 7.5 | 30 | 2800*600*1100 | 1200 |
WP-1000 | 1000x600 | 1000 | 650 | 11 | 35 | 3100*600*1200 | 1400 |
WP-1200 | 1200x600 | 1200 | 980 | 15 | 40 | 3400*650*1300 | 1800 |
WP-1500 | 1500x850 | 1500 | 1200 | 18.5 | 45 | 4200*1100*1500 | 2400 |
Model | Working platform size (mm) | Max. Log Length (mm) | Max Log Diameter (mm) | Power (KW) | Oil cylinder pressure (tons) | Overall size (mm) | Weight (kg) |
WP-800 | 800x600 | 800 | 500 | 7.5 | 30 | 2800*600*1100 | 1200 |
WP-1000 | 1000x600 | 1000 | 650 | 11 | 35 | 3100*600*1200 | 1400 |
WP-1200 | 1200x600 | 1200 | 980 | 15 | 40 | 3400*650*1300 | 1800 |
WP-1500 | 1500x850 | 1500 | 1200 | 18.5 | 45 | 4200*1100*1500 | 2400 |
