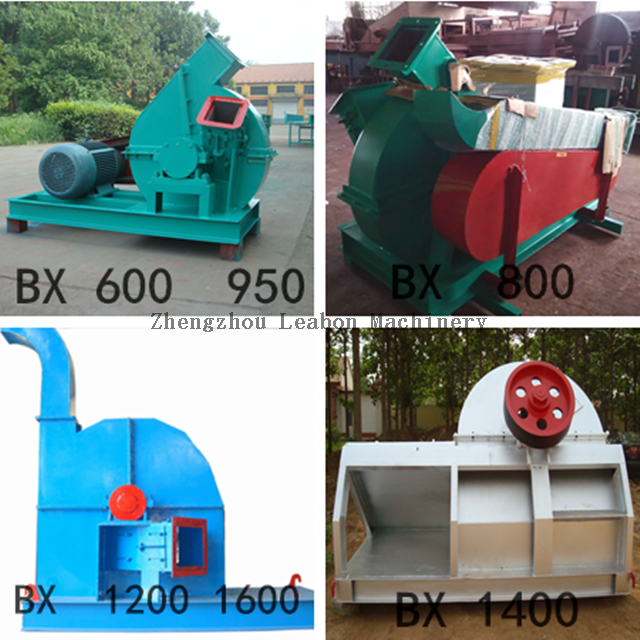

BX series
LEABON
Hot Selling New Mode Wood Chipping Machine High Output Branch Crusher Disc Type Wood Chipper Price
Introduction of Disc Type Wood Chipper:
The machine can chip wood branches into settled dimensions, for producing fiberboard, pulp etc. Can be made as up outlet or down outlet according to users’ requirement, also can be driven by diesel engine, for using in somewhere no electricity.
Technical Parameter of Disc type Wood Chipper :
Item | Knife number | Input opener (mm) | Input Dia(mm) | Capacity (t/h) | Power (kw) | Dimension (mm) | Weight (kg) | Unit price |
BX-600 | 3 | 150*140 | 130 | 1-3 | 22 | 1600*1000*1400 | 880 | $2550 |
BX-800 | 4 | 170*160 | 150 | 3-6 | 37 | 1800*1100*1500 | 1680 | $3850 |
BX-950 | 6 | 220*210 | 200 | 8-12 | 55 | 2000*1200*1600 | 2180 | $5760 |
BX-1200 | 6 | 350*250 | 250 | 12-18 | 90 | 2800*1520*1630 | 3580 | $12150 |
BX-1400 | 6 | 460*350 | 300 | 20-30 | 110 | 3500*1780*1800 | 4980 | $24250 |
BX-1600 | 6 | 540*380 | 350 | 30-40 | 160 | 3800*1850*2100 | 8750 | $35320 |

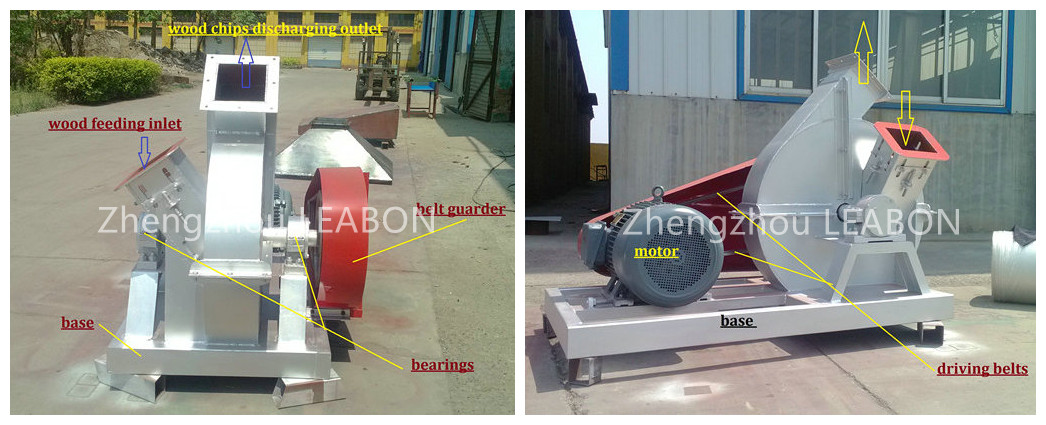

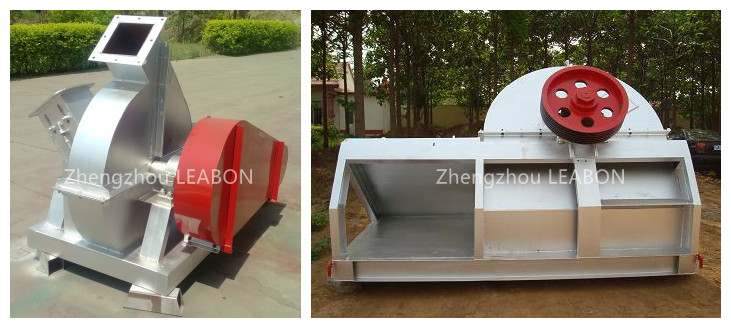

Details Image of Disc Type Wood Chipper :
It can be driven by electric motor or the diesel engine. The series of the products have the compact structure and reliable simple operation.
Raw Material of Disc Type Wood Chipper :
Kind of wood logs, branch,etc.

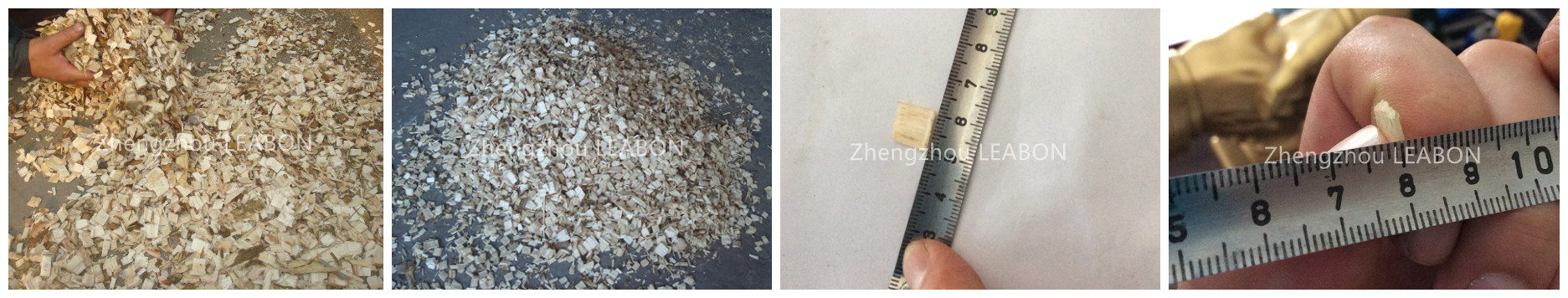

Final wood chips :
Hot Selling New Mode Wood Chipping Machine High Output Branch Crusher Disc Type Wood Chipper Price
Introduction of Disc Type Wood Chipper:
The machine can chip wood branches into settled dimensions, for producing fiberboard, pulp etc. Can be made as up outlet or down outlet according to users’ requirement, also can be driven by diesel engine, for using in somewhere no electricity.
Technical Parameter of Disc type Wood Chipper :
Item | Knife number | Input opener (mm) | Input Dia(mm) | Capacity (t/h) | Power (kw) | Dimension (mm) | Weight (kg) | Unit price |
BX-600 | 3 | 150*140 | 130 | 1-3 | 22 | 1600*1000*1400 | 880 | $2550 |
BX-800 | 4 | 170*160 | 150 | 3-6 | 37 | 1800*1100*1500 | 1680 | $3850 |
BX-950 | 6 | 220*210 | 200 | 8-12 | 55 | 2000*1200*1600 | 2180 | $5760 |
BX-1200 | 6 | 350*250 | 250 | 12-18 | 90 | 2800*1520*1630 | 3580 | $12150 |
BX-1400 | 6 | 460*350 | 300 | 20-30 | 110 | 3500*1780*1800 | 4980 | $24250 |
BX-1600 | 6 | 540*380 | 350 | 30-40 | 160 | 3800*1850*2100 | 8750 | $35320 |
Details Image of Disc Type Wood Chipper :
It can be driven by electric motor or the diesel engine. The series of the products have the compact structure and reliable simple operation.
Raw Material of Disc Type Wood Chipper :
Kind of wood logs, branch,etc.
Final wood chips :
