BX series
LEABON
One Year Warranty Disk Wood Chipper Waste Wood Chipper Cutter Chipper Shredder Sales
Introduction:
It is an ideal equipment of processing the raw materials including wood branch, round logs, square blocks, and wood pieces into wood chips with settled dimensions.
Final Wood Chips:
The final wood chips is widely used in the production of paper making, edible fungus, shaving board, sawdust, high density board, and fiberboard etc.
The upper inlet and down output could be customized according to clients’ requirement. It can be driven by electric motor or diesel engine; the series of products have compact structure, reliable simple operation and solve the problem of the large difficult wood feeding.

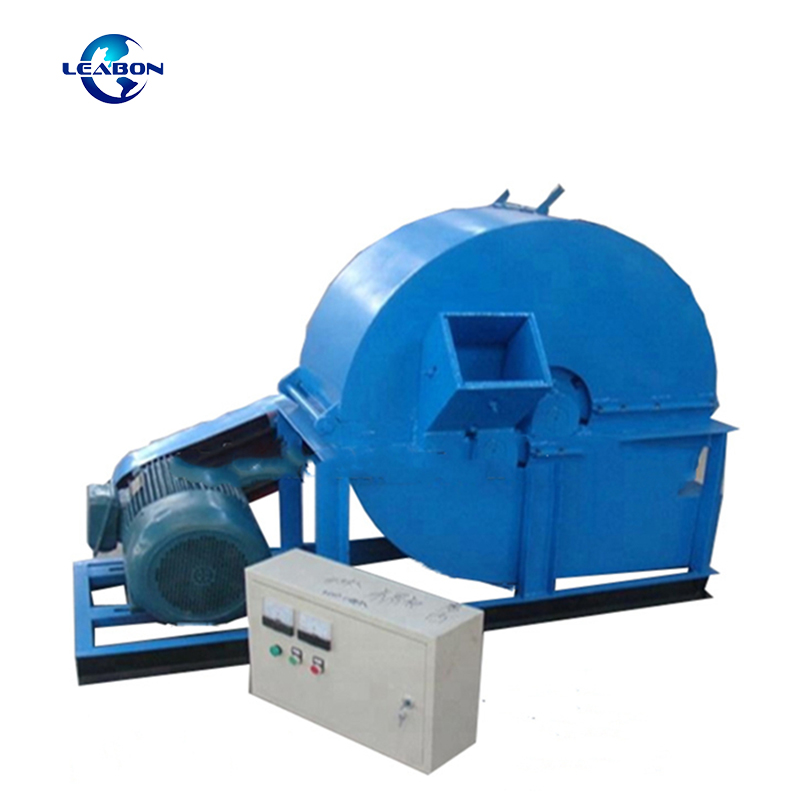

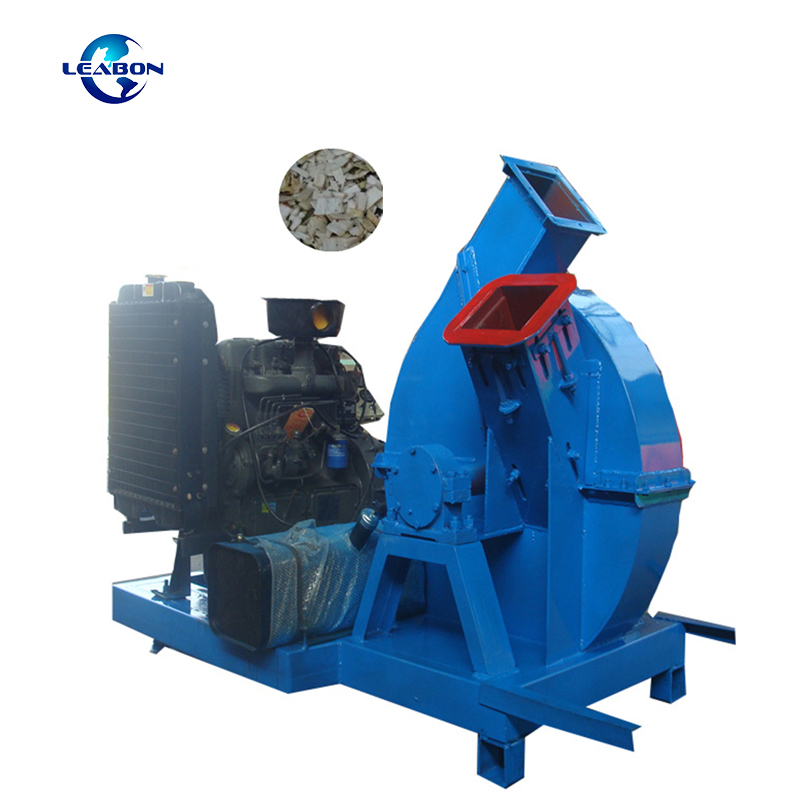

Detailed photos:
Machine working site:
Packing details:
Standard export packaging
One Year Warranty Disk Wood Chipper Waste Wood Chipper Cutter Chipper Shredder Sales
Introduction:
It is an ideal equipment of processing the raw materials including wood branch, round logs, square blocks, and wood pieces into wood chips with settled dimensions.
Final Wood Chips:
The final wood chips is widely used in the production of paper making, edible fungus, shaving board, sawdust, high density board, and fiberboard etc.
The upper inlet and down output could be customized according to clients’ requirement. It can be driven by electric motor or diesel engine; the series of products have compact structure, reliable simple operation and solve the problem of the large difficult wood feeding.
Detailed photos:
Machine working site:
Packing details:
Standard export packaging
Main data:
| Model | knife disc Dia (mm) | knife Qty (pcs) | Input opener (mm) | Input Dia (mm) | Chips size (mm) | Power (kw) | Capacity (t/h) |
| BX-600 | 600 | 3 | 150*140 | 130 | 20-35 | 22 | 1-3 |
| BX-800 | 800 | 4 | 170*160 | 150 | 20-35 | 37 | 3-6 |
| BX-950 | 950 | 6 | 220*210 | 200 | 25-35 | 55 | 8-12 |
| BX-1200 | 1200 | 6 | 350*250 | 250 | 25-40 | 90 | 12-18 |
| BX-1400 | 1400 | 6 | 460*350 | 300 | 25-40 | 110 | 20-30 |
| BX-1600 | 1600 | 6 | 540*380 | 350 | 30-45 | 160 | 30-40 |
Main data:
| Model | knife disc Dia (mm) | knife Qty (pcs) | Input opener (mm) | Input Dia (mm) | Chips size (mm) | Power (kw) | Capacity (t/h) |
| BX-600 | 600 | 3 | 150*140 | 130 | 20-35 | 22 | 1-3 |
| BX-800 | 800 | 4 | 170*160 | 150 | 20-35 | 37 | 3-6 |
| BX-950 | 950 | 6 | 220*210 | 200 | 25-35 | 55 | 8-12 |
| BX-1200 | 1200 | 6 | 350*250 | 250 | 25-40 | 90 | 12-18 |
| BX-1400 | 1400 | 6 | 460*350 | 300 | 25-40 | 110 | 20-30 |
| BX-1600 | 1600 | 6 | 540*380 | 350 | 30-45 | 160 | 30-40 |
