BX series
LEABON
Large Scale Disc Type Wood Chips Shredder Tree Branch Wood Chipper Machine Offered
Introduction:It is an ideal equipment of processing the raw materials including wood branch, round logs, square blocks, and wood pieces into wood chips once.
It has compact structure, reliable simple operation and solves the problem of the large difficult wood feeding.
Final chipps like these.

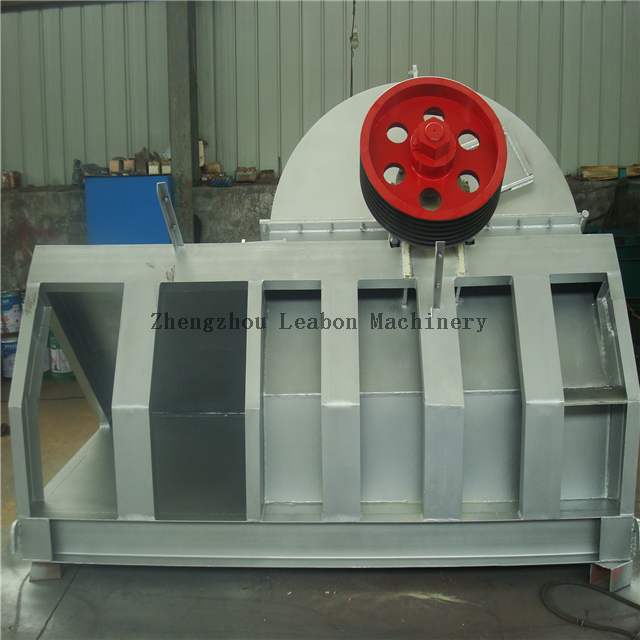

Deatiled photos
Spare parts-----Blades
Large Scale Disc Type Wood Chips Shredder Tree Branch Wood Chipper Machine Offered
Introduction:It is an ideal equipment of processing the raw materials including wood branch, round logs, square blocks, and wood pieces into wood chips once.
It has compact structure, reliable simple operation and solves the problem of the large difficult wood feeding.
Final chipps like these.
Deatiled photos
Spare parts-----Blades
Main data:
| Model | BX-600 | BX-800 | BX-950 | BX-1200 | BX-1400 |
| knife disc Dia (mm) | 600 | 800 | 950 | 1200 | 1400 |
| knife Qty (pcs) | 3 | 4 | 6 | 66 | 6 |
| Input opener (mm) | 150*140 | 170*160 | 220*210 | 350*250 | 460*350 |
| Input Dia (mm) | 130 | 150 | 200 | 250 | 300 |
| Chips size (mm) | 20-35 | 20-35 | 25-35 | 25-40 | 25-40 |
| Power (KW) | 22 | 37 | 55 | 90 | 110 |
| Rotary (speed/rpm) | 950 | 900 | 850 | 800 | 750 |
| Capacity (tons/hour) | 1-3 | 3-6 | 8-12 | 12-18 | 20-30 |
| Overall size (mm) | 1600*1000*1400 | 1800*1100*1500 | 2000*1200*1600 | 2800*1520*1630 | 3500*1780*1800 |
| Weight (kg) | 880 | 1680 | 2180 | 3580 | 4980 |
| Remark | Inclined input | Inclined input | Inclined input | horizontal input | horizontal input |
Driven type:
Electric ,diesel engien,PTO,tractor,etc.
Advantages:
1. Easy operation
2. Low and simple maintenance
3. Long working life and low noisy
4. Wood chipper would be the best choice for dealing with wood scraps.
Usage:
Wood chipper machine can cut wood, branches, bamboo into small pieces, which is extensively applied in the material-preparing of pulp paper-making, OSB and MDF production and also in the individual wood chips production, we supply a series of models with different capacity.
Main data:
| Model | BX-600 | BX-800 | BX-950 | BX-1200 | BX-1400 |
| knife disc Dia (mm) | 600 | 800 | 950 | 1200 | 1400 |
| knife Qty (pcs) | 3 | 4 | 6 | 66 | 6 |
| Input opener (mm) | 150*140 | 170*160 | 220*210 | 350*250 | 460*350 |
| Input Dia (mm) | 130 | 150 | 200 | 250 | 300 |
| Chips size (mm) | 20-35 | 20-35 | 25-35 | 25-40 | 25-40 |
| Power (KW) | 22 | 37 | 55 | 90 | 110 |
| Rotary (speed/rpm) | 950 | 900 | 850 | 800 | 750 |
| Capacity (tons/hour) | 1-3 | 3-6 | 8-12 | 12-18 | 20-30 |
| Overall size (mm) | 1600*1000*1400 | 1800*1100*1500 | 2000*1200*1600 | 2800*1520*1630 | 3500*1780*1800 |
| Weight (kg) | 880 | 1680 | 2180 | 3580 | 4980 |
| Remark | Inclined input | Inclined input | Inclined input | horizontal input | horizontal input |
Driven type:
Electric ,diesel engien,PTO,tractor,etc.
Advantages:
1. Easy operation
2. Low and simple maintenance
3. Long working life and low noisy
4. Wood chipper would be the best choice for dealing with wood scraps.
Usage:
Wood chipper machine can cut wood, branches, bamboo into small pieces, which is extensively applied in the material-preparing of pulp paper-making, OSB and MDF production and also in the individual wood chips production, we supply a series of models with different capacity.
