Powerful Vertical type TMR 8 Cubic Meter TMR Mixer for Cow Farm Double Auger Cattle Feed Mixer
Product Description:
1.TMR feed mixer, also known as the whole dietary feed mixer, TMR feed preparation machine, TMR feed mixer, TMR mixer, is a kind of feed processing equipment including crushing, stirring and mixing.
2.It is suitable for feed mixing operations in farming area, large and medium-sized farms and standard community feeding factory.
Main Date:
Model | LB-7 | LB-10 |
Capacity(m3) | 7 | 10 |
Tractor match | Above 55hp | Above 70hp |
QTY of blades(PCS) | 7 | 7 |
QTY of twisted dragon(PCS) | 1 | 1 |
Blade type | Metal serrated reamer | d Metal serratereamer |
Air pump discharge system | 1 unit | 1 unit |
Reducer | I unit Planet-Gear Reducer | I unit Planet-Gear Reducer |
Transmission shaft | PTO with 1 piece | PTO with 1 piece |
Dimension(mm) | 4000*2100*2500 | 4500*2200*2700
|
Weight（kg） | 1900 | 2500 |
Work Principle:
Vertical full-mixing dietary mixer is mainly composed of one or two screw-shaped, and the spiral twisted dragon is divided into upper and lower spin. During the mixing and stirring, the material from both ends of the box at the same time all directions to the middle of the mixer peeling stirring. Each helix of the screwdriver is equipped with a moving blade to cut the fixed tooth at the position of the center line of the feed mixer, and cut and agitate all kinds of fibrous forages and stalks passed through, so as to achieve the complete mixing and crushing and dietary feeding effect.
Picture of blades:

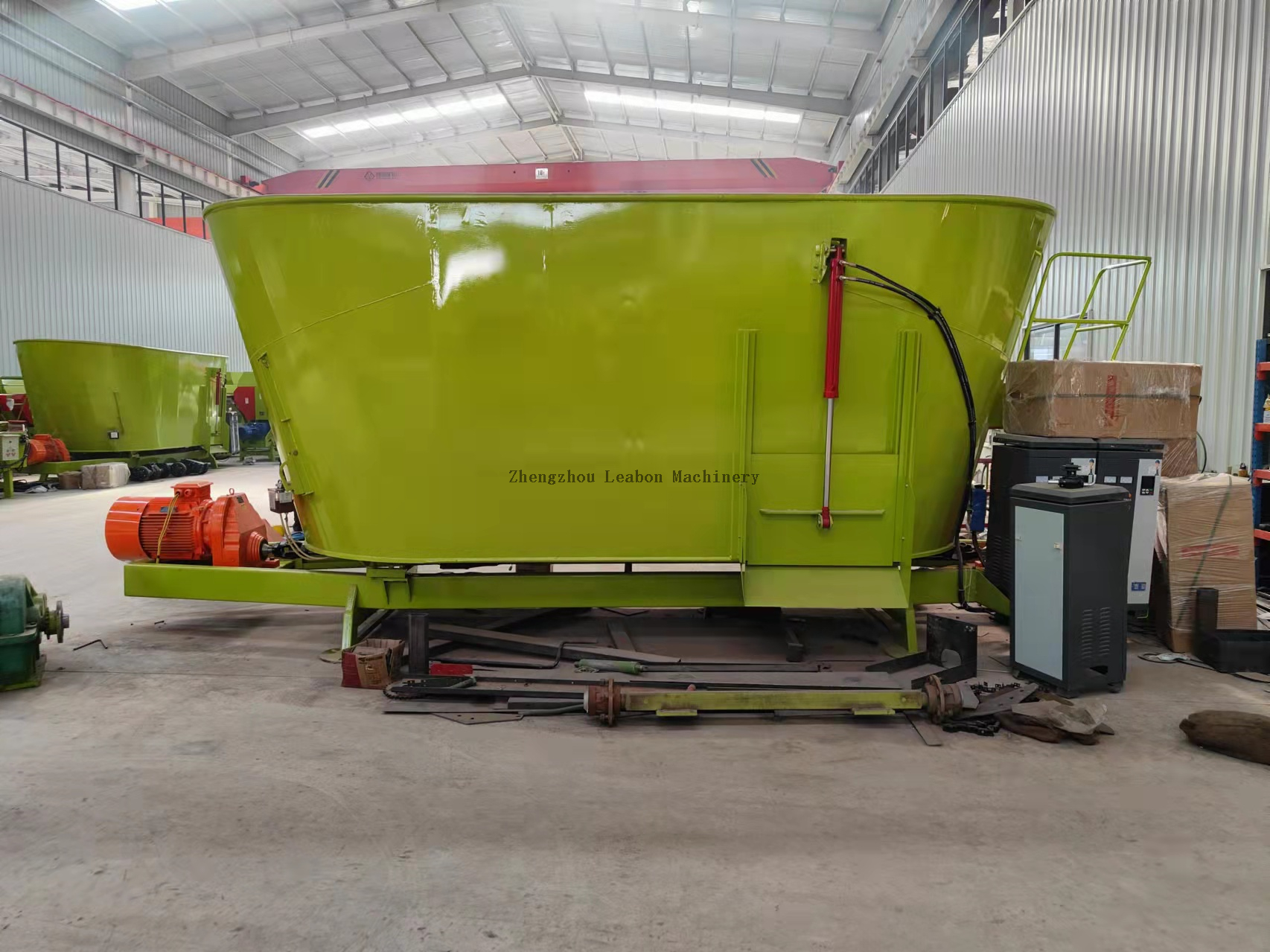

Pictures of feed mixer:
Horizontal PTO Type Feed Mixer for reference:
