Do You Know How to Use The Blade Grinding Machine? Check Out This Article!

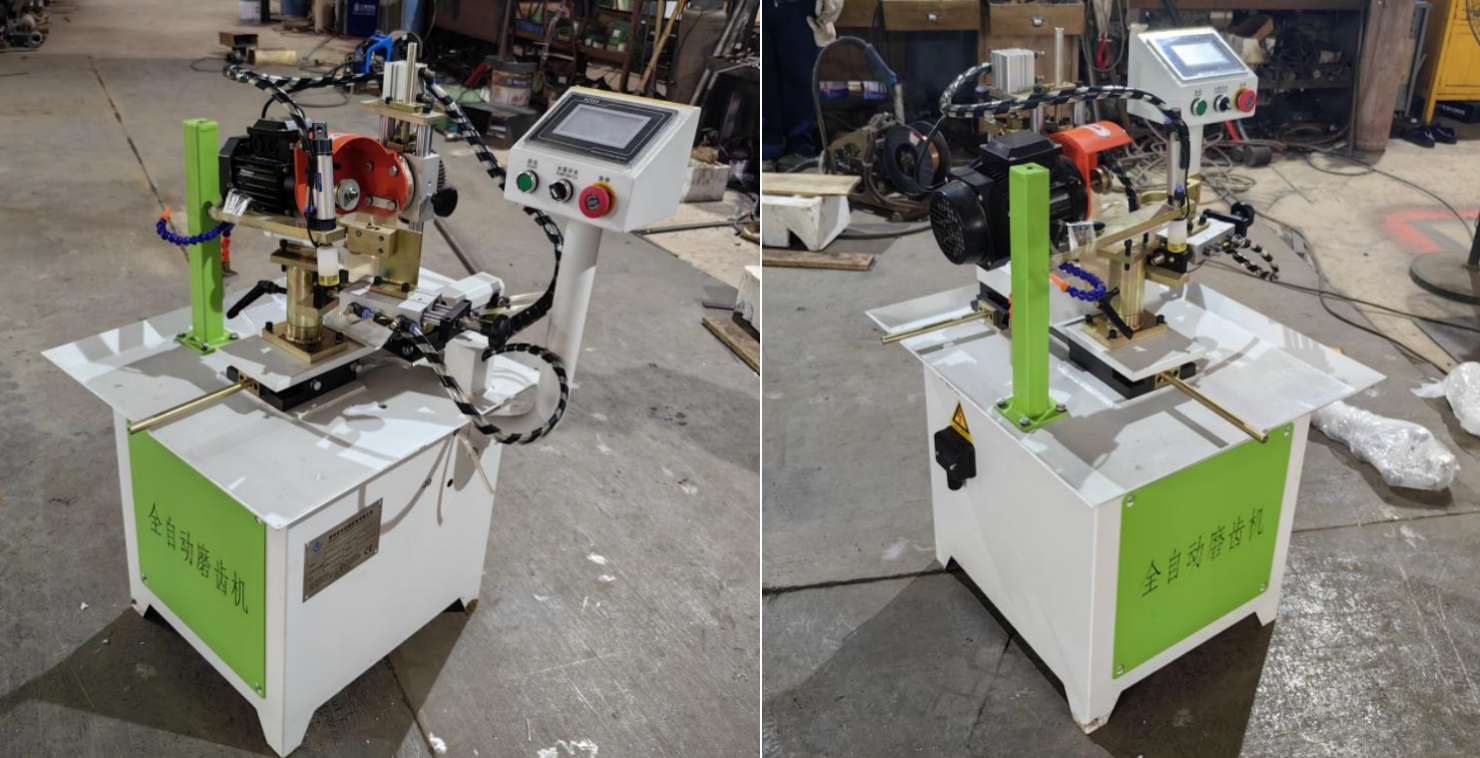

Product description of Automatic Blade Grinding Machine

This machine is a fully automatic gear grinding machine designed according to the circular saw blade grinding, and it is a supporting equipment developed by our company for multi-blade saw, bench saw and so on.

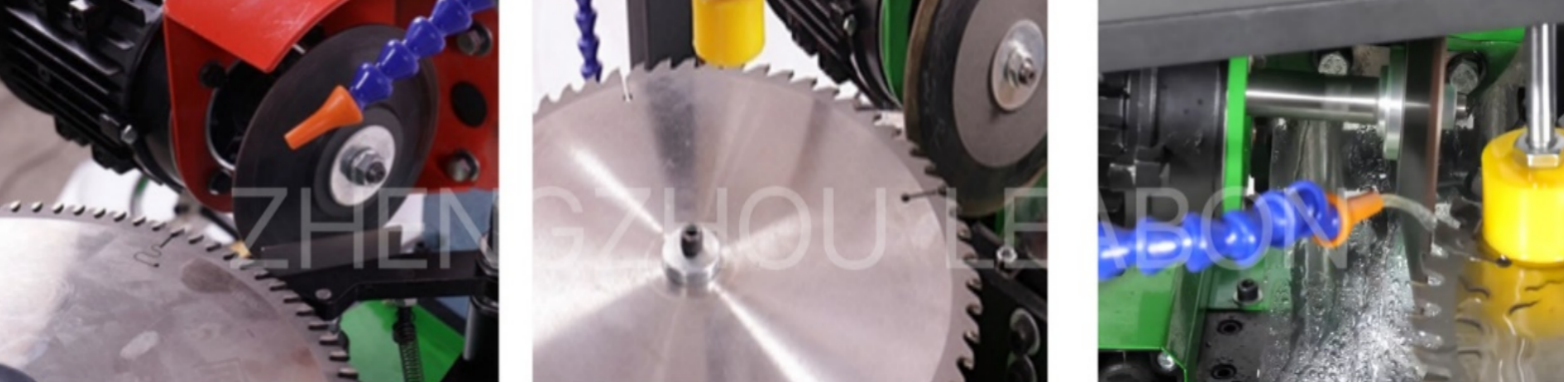

Operation and use of Saw Blade Grinder

1. Before grinding, move the grinding wheel motor backward to avoid touching the grinding wheel during debugging; Mount the saw blade to fix the slide plate → Mount the saw blade → Adjust the push → Move the grinding wheel blade → Angle the saw blade according to the situation.

2. When debugging, enter the manual interface for debugging, so that the pushed tooth surface is parallel to the front and back movement direction of the table top. If it is not parallel, swing the direction of the saw blade sliding seat according to the situation to make it parallel. If the tooth is flat, turn the grinding wheel motor to zero, and then set the tooth type of the parameter interface as "flat tooth". For left and right teeth, swing the grinding wheel motor for 3-5 degrees and set the tooth type as "left and right teeth".

3. Push the teeth and start working after adjustment. The number of grinding teeth can be adjusted according to the number of teeth of the saw blade (for example, the number of teeth of the saw blade is set to 60 for a 60-tooth saw blade), and it will automatically stop working after grinding.

Matters needing attention in electrical use

a) For personal safety, please install and use the single-phase leakage protection switch.

b) If there is any circuit fault, please arrange for an electrician with a valid electrician certificate to maintain it, so as to ensure personal and equipment safety.
