LBMS
LEABON

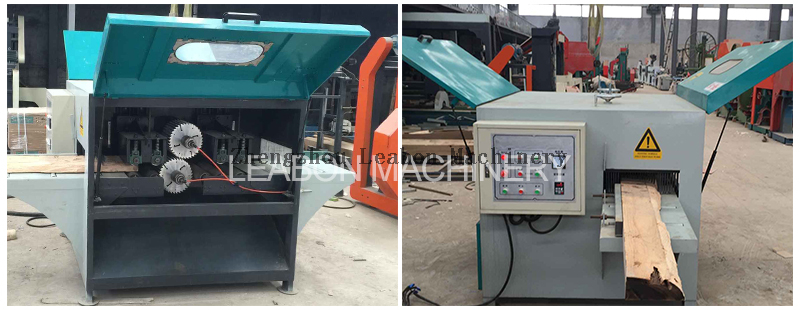

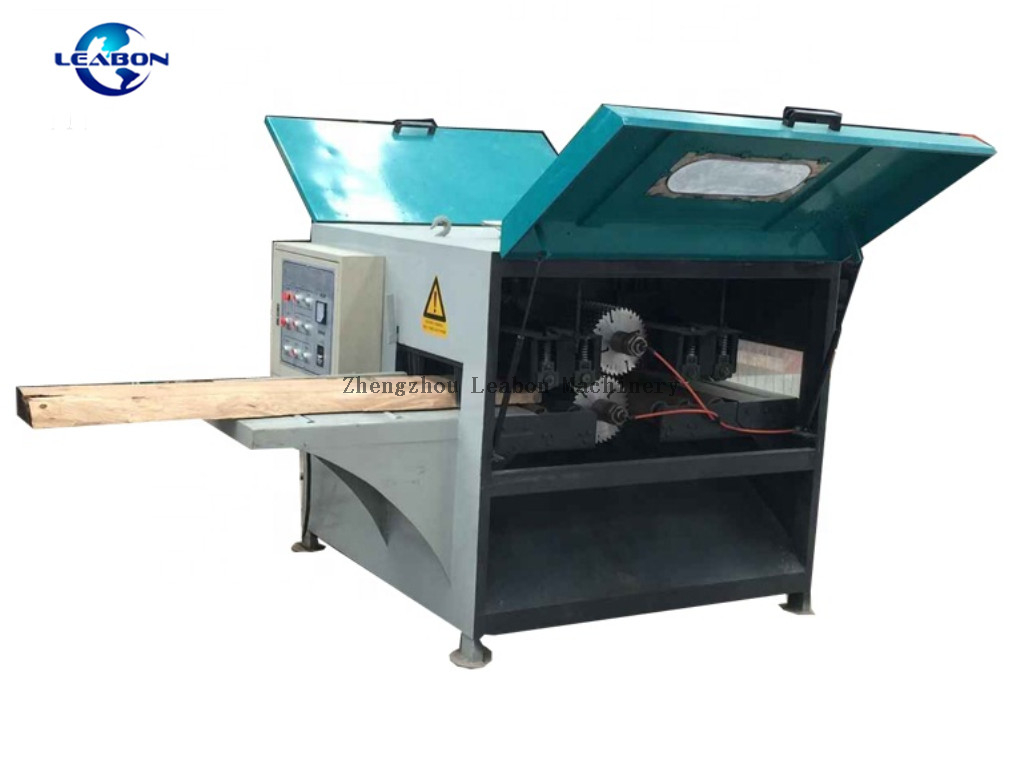

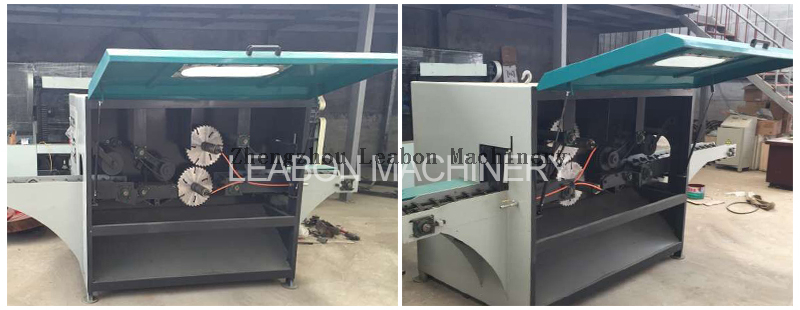

Double Spindle Multi-Blade Rip Sawmill for Wood Board
Introduction
Multi-blade ripsawmill is mainly used for the handling of the whole wood planks and process them into multiple specifications wood plank.
It have Upper and lower shaft and big handle diameter.
During Processing, the two drive shaft can achieve automatic feedingautomatic material output and smooth feeding. For the saw road,smooth saw pin surface increase rate of material handling.
It is the ideal sawing machine forthe furniture board, joinery board and wood packing planks making.
Features
1.Flat and smooth sawing surface
2.Energy-saving and low waste with the multi-blade design;
3.High feeding speed and greatly improve efficiency;
4.Fast loading, easy operation and high timber utilization;
5.The Upper pressing rolls increase automatically tensile force to ensure stable feeding;
6.The axis of hydraulic cooling method can increase the effects of the spindle cooling and decrease electric cost.
Specification
Parameter | LBBC 120-250 | LBBC 160-250 | LBBC200-250 | LBBC160-350 |
Max. sawing wood plate width | 250mm | 250mm | 250mm | 350mm |
Max. sawing wood plate thickness | 120mm | 160mm | 200mm | 160mm |
Sawing wood plate length | More than 500mm | More than 500mm | More than 500mm | More than 600mm |
Speed of main shaft | 2800 r/min | 2800 r/min | 2800 r/min | 2800 r/min |
Main motor power | 15KW*2 | 18.5KW*2 | 22KW*2 | 30KW*2 |
Feeding motor power | 1.5KW | 1.5KW | 2.2KW | 2.2KW |
saw blade diameter | 212mm | 255mm | 305mm | 255mm |
saw blade quantity | 2-10pieces | 2-10pieces | 2-10pieces | 2-10pieces |
saw blade arrangement | Two group of blades | Two group of blades | Two group of blades | Two group of blades |
Feeding speed | Frequency control | Frequency control | Frequency control | Frequency control |
Cooling water pressure | 0.3-0.6PA | 0.3-0.6PA | 0.3-0.6PA | 0.3-0.6PA |
Cooling method | Axial water | Axial water | Axial water | Axial water |

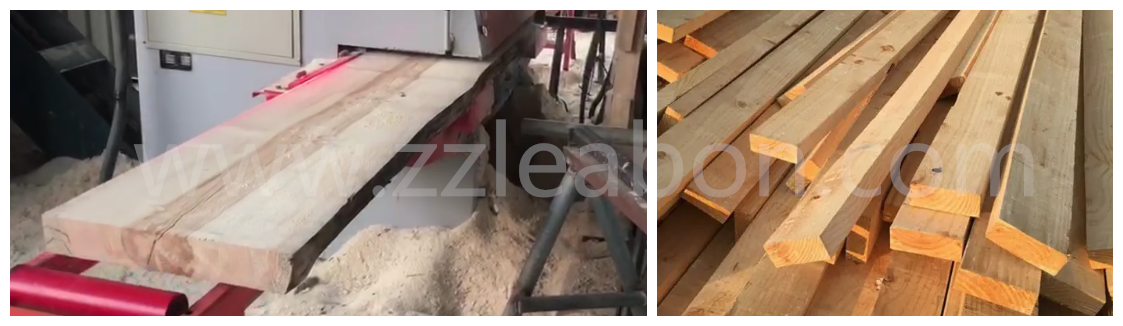

Raw Materials&Final Products
Double Spindle Multi-Blade Rip Sawmill for Wood Board
Introduction
Multi-blade ripsawmill is mainly used for the handling of the whole wood planks and process them into multiple specifications wood plank.
It have Upper and lower shaft and big handle diameter.
During Processing, the two drive shaft can achieve automatic feedingautomatic material output and smooth feeding. For the saw road,smooth saw pin surface increase rate of material handling.
It is the ideal sawing machine forthe furniture board, joinery board and wood packing planks making.
Features
1.Flat and smooth sawing surface
2.Energy-saving and low waste with the multi-blade design;
3.High feeding speed and greatly improve efficiency;
4.Fast loading, easy operation and high timber utilization;
5.The Upper pressing rolls increase automatically tensile force to ensure stable feeding;
6.The axis of hydraulic cooling method can increase the effects of the spindle cooling and decrease electric cost.
Specification
Parameter | LBBC 120-250 | LBBC 160-250 | LBBC200-250 | LBBC160-350 |
Max. sawing wood plate width | 250mm | 250mm | 250mm | 350mm |
Max. sawing wood plate thickness | 120mm | 160mm | 200mm | 160mm |
Sawing wood plate length | More than 500mm | More than 500mm | More than 500mm | More than 600mm |
Speed of main shaft | 2800 r/min | 2800 r/min | 2800 r/min | 2800 r/min |
Main motor power | 15KW*2 | 18.5KW*2 | 22KW*2 | 30KW*2 |
Feeding motor power | 1.5KW | 1.5KW | 2.2KW | 2.2KW |
saw blade diameter | 212mm | 255mm | 305mm | 255mm |
saw blade quantity | 2-10pieces | 2-10pieces | 2-10pieces | 2-10pieces |
saw blade arrangement | Two group of blades | Two group of blades | Two group of blades | Two group of blades |
Feeding speed | Frequency control | Frequency control | Frequency control | Frequency control |
Cooling water pressure | 0.3-0.6PA | 0.3-0.6PA | 0.3-0.6PA | 0.3-0.6PA |
Cooling method | Axial water | Axial water | Axial water | Axial water |
Raw Materials&Final Products
