Introduction:
9FQ System hammer mill is the most ideal milling equipment of all kinds of wood pieces, straw, grass, stalk, tree branches, waste cardboard, bamboo, wood scrap, corn stalk, peanut shell, wheat stalk, wood fuel, cotton stalk, biomass shell and so on.
This kind of hammer mill is widely used in swine farm, wood factory, etc. Hammer mill is equipped with high carbon steel blade. The raw materials can be crushed into straw particles, whose diameter is 3-5mm. The durable hammer mill works with high efficiency and gains more good reputation from European users.

The machine could be driven by the diesel engine, motor, tractor, etc.
The kinds of machine could be matched with mounting plate for motor or diesel engine, and collector.

9FQ Series Hammer Mill

Working Principle

Hammer mill work on the principle that most materials will crush or pulverize upon impact using the following steps:

Firstly, Materials is fed into the mill's chamber typically by gravity.

The second, the material is struck by ganged hammers (rectangular pieces of hardened steel) which are attached to a shaft which rotates at high speed inside the chamber. The material is crushed or shattered by the repeated hammer impacts, collisions with the walls of the grinding chamber, as well as particle on particle impacts.

The third, perforated metal screens, or bar grates covering the discharge opening of the mill retains coarse materials for further grinding while allowing the properly sized materials to pass as finished product.

Varying the screen size, shaft speed, or hammer configuration can dramatically alter the finished size of the product being ground. Faster speed, a smaller screen, and more hammers result in a finer end product. Each component can be changed individually. Or in any combination to produce the precise grind required. All of this is determined by taking advantage of our free of charge testing service.

The Main Parameters

MODEL	POWER(KW) 3phase/380v/50hz	CAPACITY(KG/H)	DIMENSION(MM)	Weight(KG)
9FQ 360-20	5.5	300-350	900*500*800	260
9FQ 400-28	7.5	400-500	1100*550*850	350
9FQ 500-28	11	600-800	1250*650*1000	450
9FQ 500-40	22	900-1000	1400*780*1250	750
9FQ 500-50	30	1500-2000	1600*850*1350	900
9FQ 500-60	37	2000-3000	1750*900*1550	1300

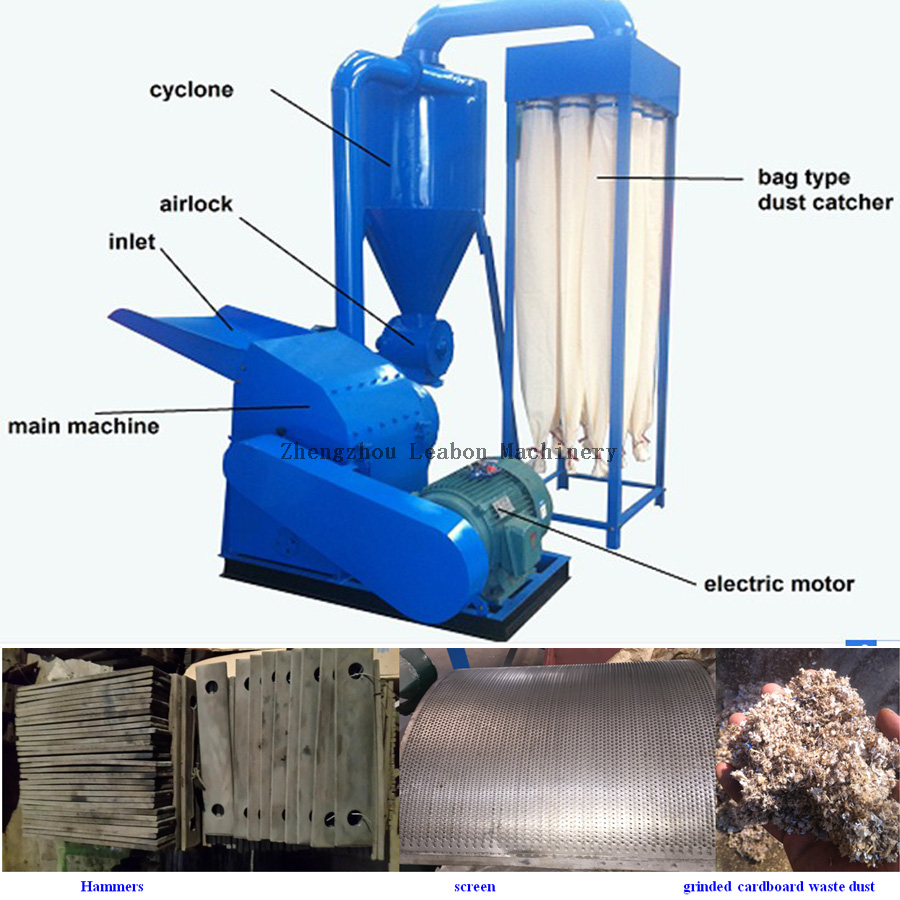

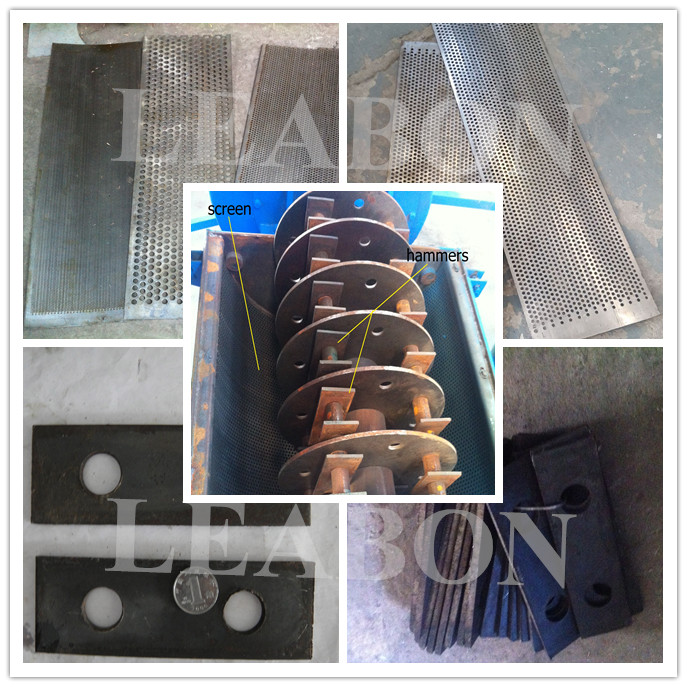

Spare parts: Hammers + Sieve

different crushing results with different size of sieve

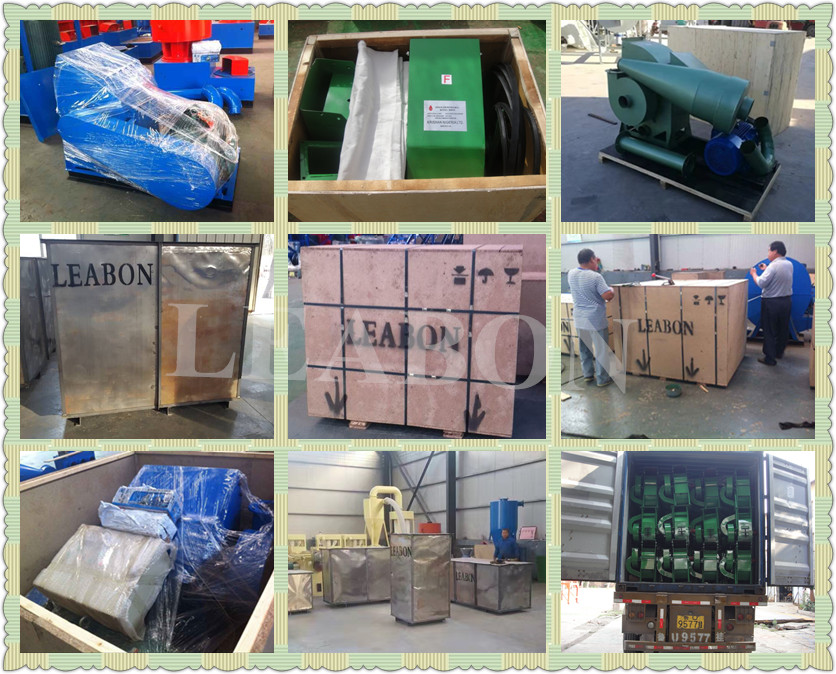

Packing and Shipping



Model	Power (kw)	Capacity (kg/h)	Dimension (mm)	Weight (kg)
9FQ 36-20	5.5	300-350	900*500*800	260
9FQ 40-28	7.5	400-500	1100*550*850	350
9FQ 50-28	11	600-800	1250*650*1000	450
9FQ 50-40	22	900-1000	1400*780*1250	750
9FQ 50-50	30	1500-2000	1600*850*1350	900
9FQ 50-60	45	2000-3000	1750*900*1550	1300

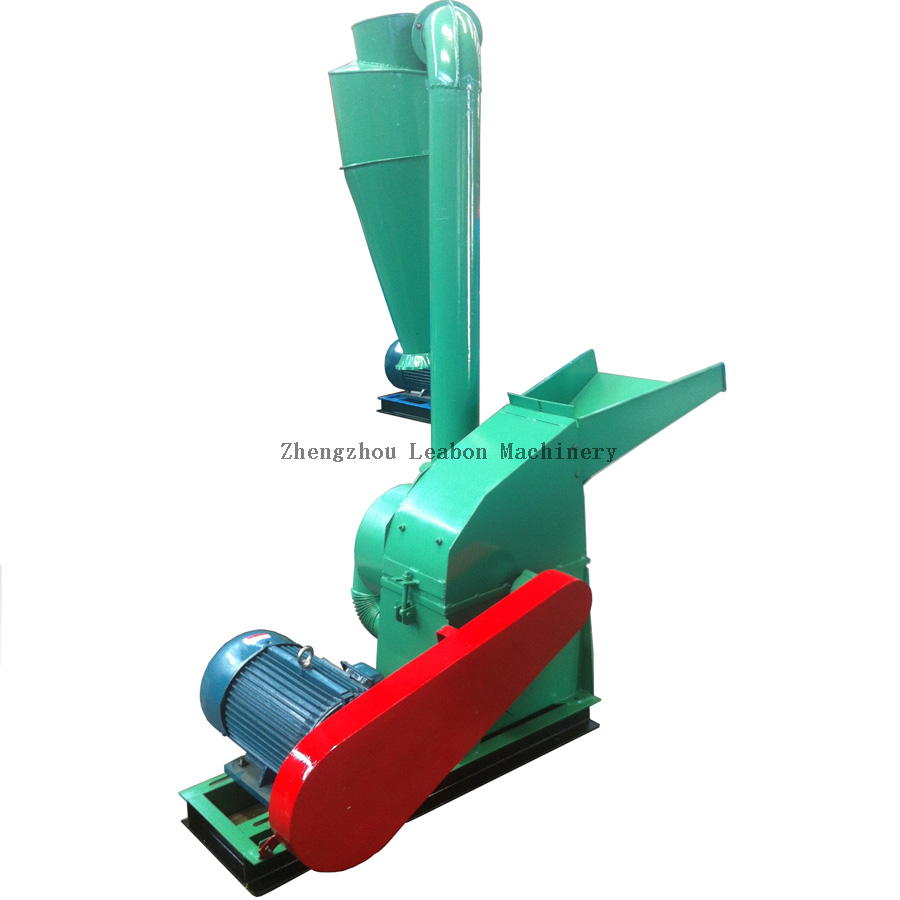

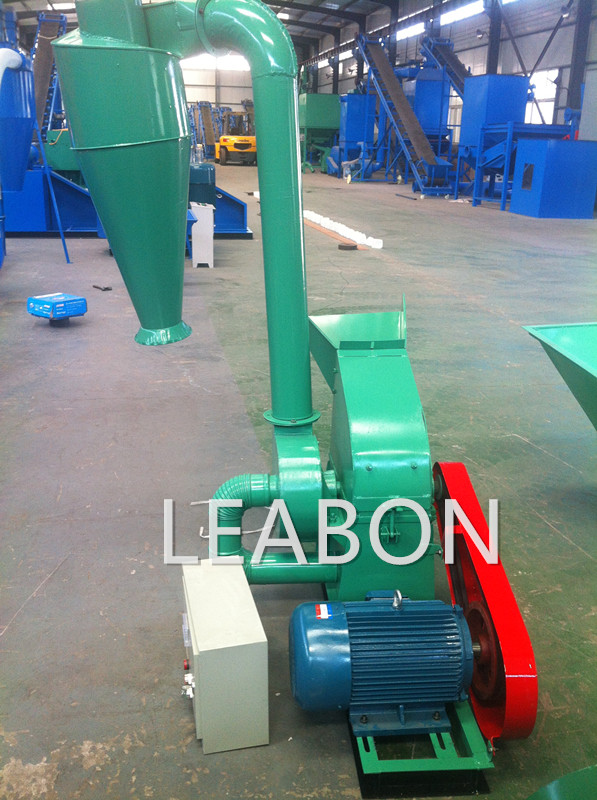

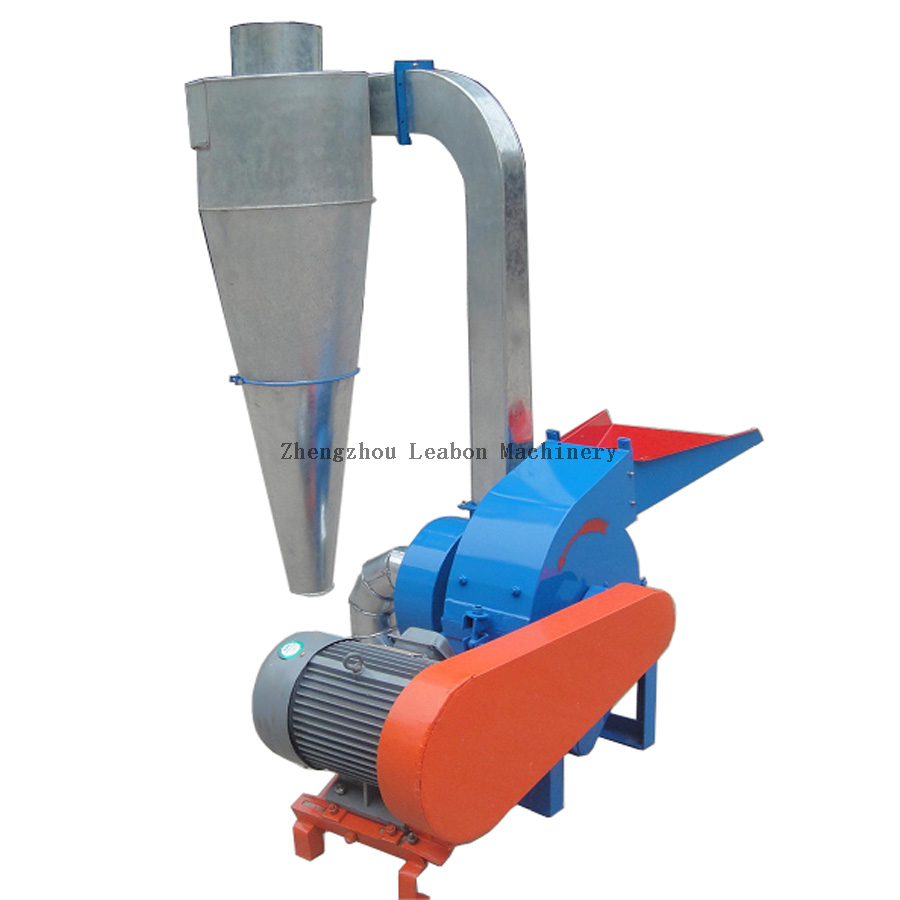

Photos of Hammer mill:
