Automatic Wood Twin Blade Board Edger
You are here: Home » Products » Sawmill » Sawmill Production Line » Automatic Wood Twin Blade Board Edger

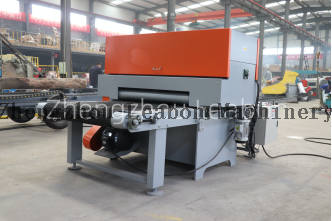

Automatic Wood Twin Blade Board Edger

loading

Automatic Wood Twin Blade Board Edger Automatic Wood Twin Blade Board Edger
Automatic Wood Twin Blade Board Edger Automatic Wood Twin Blade Board Edger
Automatic Wood Twin Blade Board Edger Automatic Wood Twin Blade Board Edger
Automatic Wood Twin Blade Board Edger Automatic Wood Twin Blade Board Edger
Automatic Wood Twin Blade Board Edger Automatic Wood Twin Blade Board Edger
Automatic Wood Twin Blade Board Edger Automatic Wood Twin Blade Board Edger

Automatic Wood Twin Blade Board Edger

Availability:
Quantity:
  • LBEG-600A, LBEG-800A, LBEG-1000A

  • LEABON

Product Description

Automatic Wood Twin Blade Board Edger

Twin Blade Board Edger (9)

-Working Principle:

One saw blade is fixed, one saw blade can move freely, cutting 2 sets at the same time, the saw blade moves with infrared light and moves at the same time



-TECHNICAL PARAMETER:

Model

LBEG-600A

LBEG-800A

LBEG-1000A

Processing Max Wood Width

600MM

800MM

1000MM

Processing Min Wood Width

50MM

50MM

50MM

Processing Max Wood Thickness

80mm

80mm

80mm

Saw Blade

2*350MM

2*350MM

2*350MM

Front/Back Feed Way

Automatic Feed Conveyor

Speed

20-25m/ minute

20-25m/ minute

20-25m/ minute

Power

7.5KW*2

7.5KW*2

7.5KW*2

Weight

900KG

1000KG

1200KG


-APPLICATION RANGE:

The win blade edger developed by our company, it is a professional edge cutting machine.

Twin Blade Board Edger (7)
