Industrial Briquette Machine – Efficient, Durable & Low Maintenance

●Description

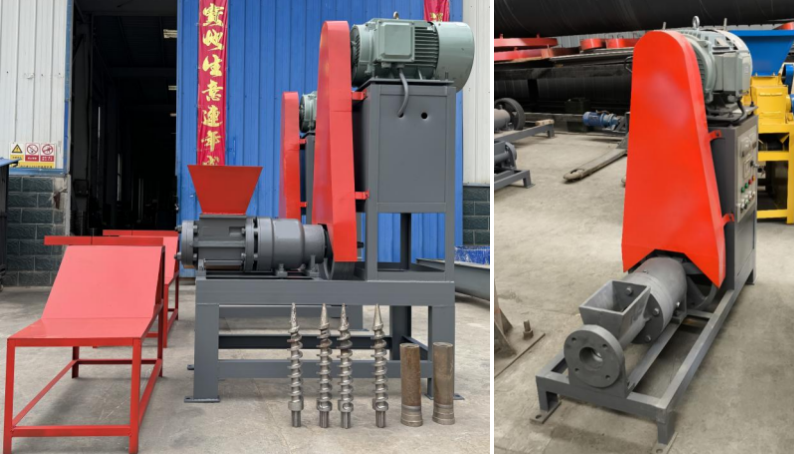

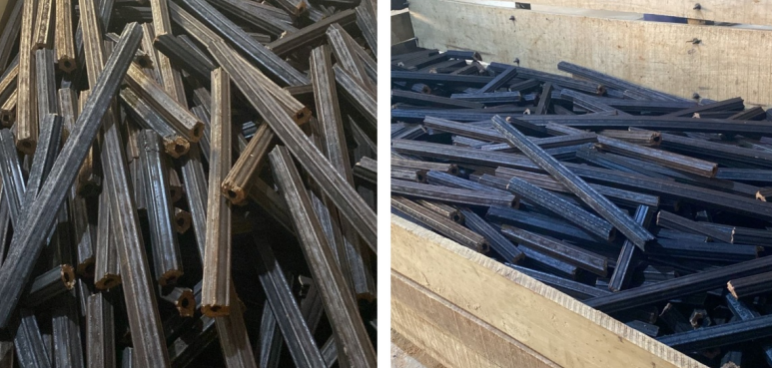

This machine is the main equipment for making hollow rod-shaped solid fuel (machine-made charcoal) using bamboo (wood) chips, rice husks, peanut shells, shavings, sugarcane bagasse and other wooden materials (without adding any binder) under high pressure conditions.

●Working principle of rod making machine

This machine utilizes the inherent characteristics of wood raw materials, and through screw extrusion, under high temperature and high pressure, the lignin in the wood raw materials is plasticized to combine the fine fibers to form a rod-shaped solid fuel.

●Before starting up

1. Check or add the machine oil level. Generally, add about 750ml of engine oil;

2. Tighten all screws, especially the screws at the flange of the forming barrel, to ensure that the forming barrel is fastened and parallel;

3. Check the dry humidity of the material (8-12%). The raw materials must meet the requirements for rod making.

●How to adjust the optimal rod exit temperature

When the thermostat of the rod making machine reaches the preset temperature, press the green start button to turn it on. After idling for about 5 seconds, put the dry wood chips evenly into the hopper. At this time, the feeding speed should not be too high, so that the material always covers the spiral. Accurate, don’t break the material.
