Charcoal Coal Briquette Making Machine with Charcoal and Coal Powder

Quantity:
  • LB-140
  • CE,SGS,BV
  • LEABON
  • 1-2T/Hour
  • Henan, China
  • International Standard Package
  • Set
  • 30SETS/MONTH
  • 1set
  • 15-20 Days after Deposit.
  • 1
  • T/T

  Charcoal Coal Briquette Making Machine with Charcoal and Coal Powder


 1. Brief Introductions

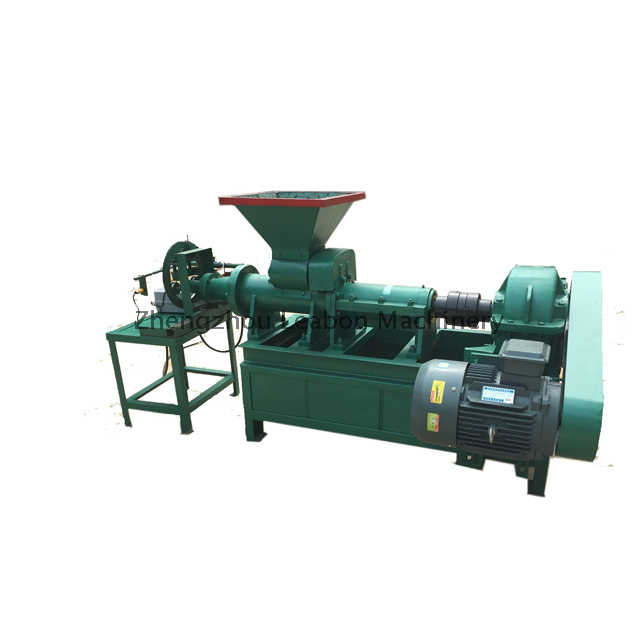

 (1). This is Briquette machine used for making charcoal powder and coal powder into fuel briquettes with different shape and size for your demand.

 (2). it could produce both hollow or solid fuel briquettes.
2. Main Data

Model Hedical diameter(mm Spindle speed(r/min) Forming specification(mm) Capacity
(T/H)
Power
(KW)
LBJ-140 120 46-60 Φ20-40 1-2 11-15
LBJ-180 160 39-60 Φ20-60 2-3 18.5-30
LBJ-220 200 39-60 Φ20-60 3-4 37-45
LBJ-300 280 35-60 Φ20-80  4-5 55-90
LBJ-350 330 35-60 Φ20-80 5-8 110-132
LBJ-450 420 35-60 Φ20-80 8-10 200

 3. Final Briquettes Shape Showing
 Coal

 4. Various Mould Showing
 Coal Pictures


       Model        LB-140        LB-180
       Capacity        Charocal Briquette        500Kg/Hour        800-1000Kg/Hour
       Coal Briquette        1000-2000Kg/Hour        2000-3000Kg/Hour
       Motor Power        7.5Kw        22Kw
       Raw Materials Size
       for Feeding
       Powder
       Feeding
       Moisture Content
       40%
       Solid Briquettes Diameter        Min—5mm Diameter; Max—100mm Diameter.
       Hollow Briquettes Diameter        Min—6mm Diameter; Max—100mm Diameter.
       Final Shapes        Cylinder, Square, Hexagon, Quincunx (Selectable)
       Machine Size(L*W*H)        2*0.8*1.16Meter        2.32*1*0.89Meter
       Machine Weight        850Kg        1200Kg
