Biomass Piston Briquette Machine

Introduction of Biomass Briquette Machine

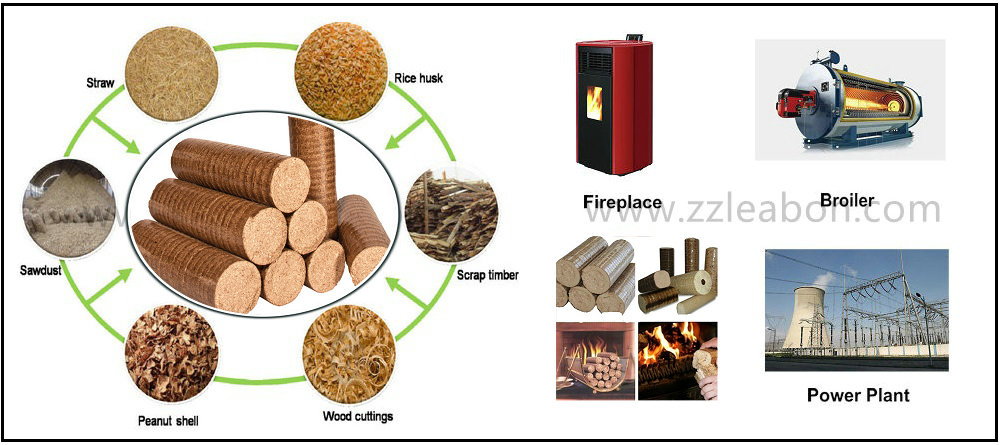

1. This briquette press machine makes the high density briquettes from the biomass waste such as agriculture waste, wood, sawdust, wood chips, straw, rice husk etc

material to round briquette product as fuel.

2. This press machine is of high working efficiency, low power consumption and longer lifespan etc.

3. The piston briquette press machine is widely used in the heating and cooking field and also used as for the raw material of power stations.

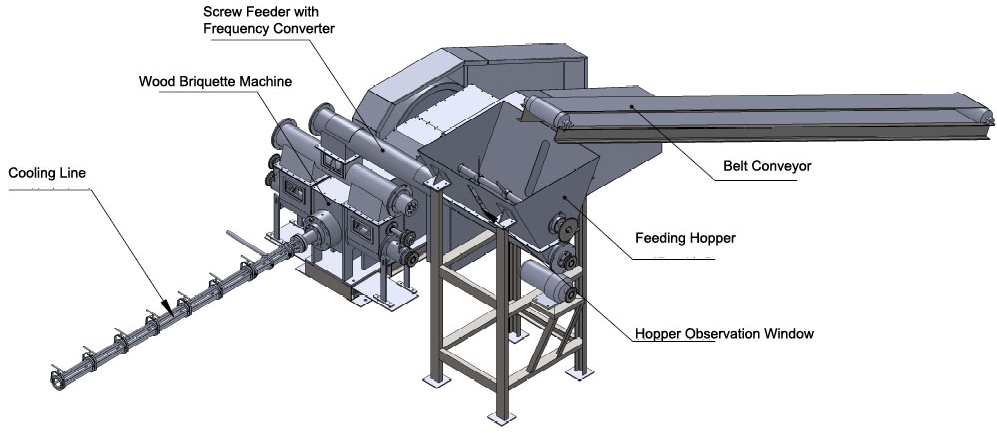

Structure of Sawdust Briquetting Machine

Installation Step of Wood briquette press:

1. Install the briquette press. Adjust the briquetting machine,then fixed with anchor bolts. Install the main motor and V-belt and adjust the tightness.

2. Install pre-silo Hopper.

3. Install belt conveyor. Connect the pre-silo by belt conveyor and fixed by bolt.

4. Connect the hopper of briquette press and pre-Silo

5. Connect the Power supply.

How to Start and Running rice husk briquette extruder?

A. Check the security of power supply.

B. Start the oil pump, the pressure should be 0.1～0.5Mpa

C. Start the main motor of briquette press, start system is lowing pressure starting. The voltage will become normal in 15-20 seconds.

D. Start the motor of screw conveyor to ensure the material in delivering is smoothly.

E. Start the motor of dispatching materials device, then start the motor of feeding.

F: During feeding materials, pay attention on the puddler in the raw materials silo, make sure it’s not get stuck.
