Views: 0 Author: Site Editor Publish Time: 2025-07-10 Origin: Site

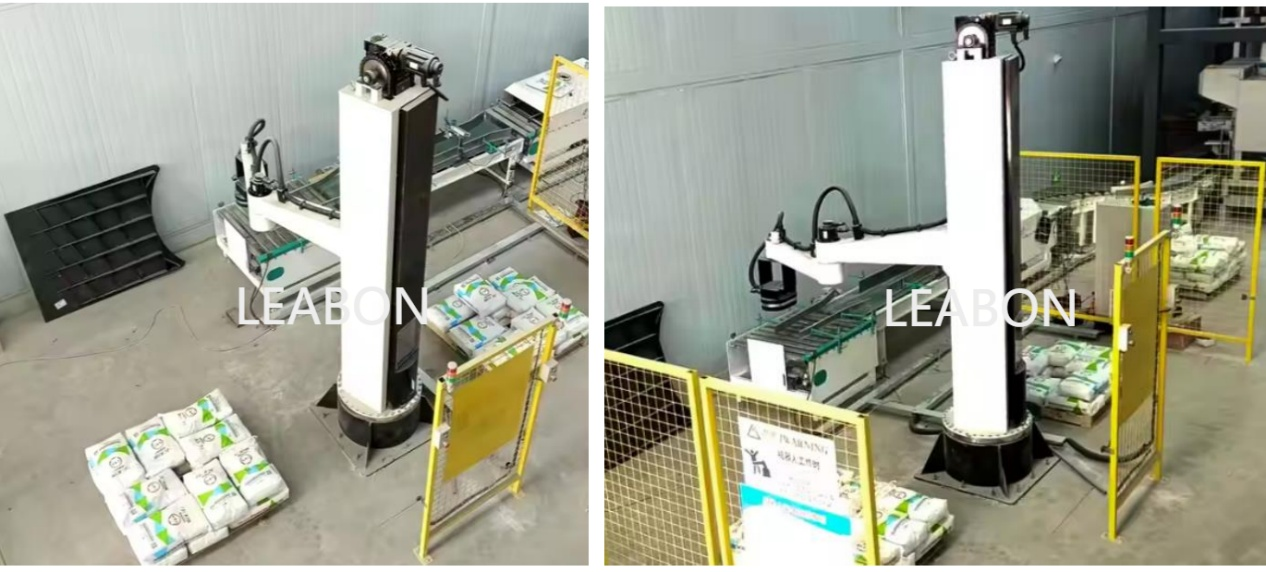

Introduction of Column Palletizer:
Column Palletizer is a type of automatic stacking equipment designed with a fixed vertical column and horizontal arm. It efficiently stacks bags, boxes, buckets, and other packaged products onto pallets in a pre-set pattern.
Compact in size, highly reliable, and easy to integrate, it is ideal for medium to high-speed production lines across a wide range of industries.
Technical Parameter of Column Palletizer:
Model | LBLZ-120 |
Palletizing Speed | 300-400Bags/Hour |
Number of palletizing layers | 4-8Layer |
Air source | 0.5-0.8Mpa |
Power | 12kw |
Voltage | 380VAC/220VAC 50HZ,±10%; |
Palletizing | Palletizing on both sides |
Package box size | 3670x1910x2030mm, |
Weigh | Net weight : 2160kg, Gross weight: 2400kg |
Key Features & Benefits of Column Palletizer:
1. Fast & Stable: Stacks 300-400 units per hour, improving line efficiency.
2. Accurate Stacking: Servo motor and optional vision system ensure neat, precise placement.
3. Flexible & Easy to Maintain: Modular design supports different products; maintenance is simple.
4. Smart Control: User-friendly PLC touchscreen system with multiple stacking modes and remote monitoring.
