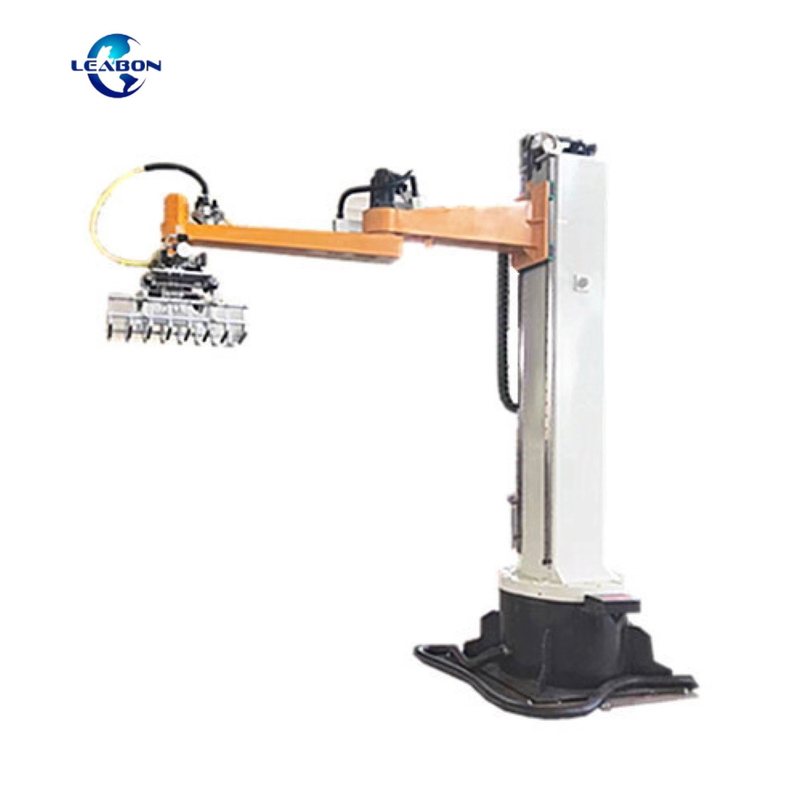

Pallet palletizer products are widely used in granules, powders, blocks, flakes, boxes, etc. , packaging and palletizing production line for solid and liquid materials such as boxes, bottles, bags, barrels, etc. The utility model is composed of a vertical column and a horizontal arm installed on the vertical column. The vertical column is installed on the rotary base, and the horizontal arm can be freely retracted and moved up and down along the vertical column. This type of robot has one axis of rotation and two axes of translation.
Product Parameter
Capacity
Specifications
350-400box/H
Model:LZ-500
Package weight: 80 kg/bag.
Capacity: 350-400 bags/box/hour
Main components are included as following:
A:Main machine frame 1.LZ robot 2.X-axis kinematics 3.Y-axis kinematics 4.Z-axis kinematics 5.C-axis kinematics B:Special fixture 1.Palletizing box mechanical gripper C:Security fence D:Conveying unit 1.Roller buffer conveyor:L2000mm 2.Conveyor to be picked:L900mm E: Electronic control system Robot control board Robot teaching unit Servo motion unit Auxiliary electrical F: Form a complete set Drive part: motor Pneumatic part: cylinder
Product Description
Pallet palletizer products are widely used in granules, powders, blocks, flakes, boxes, etc. , packaging and palletizing production line for solid and liquid materials such as boxes, bottles, bags, barrels, etc. The utility model is composed of a vertical column and a horizontal arm installed on the vertical column. The vertical column is installed on the rotary base, and the horizontal arm can be freely retracted and moved up and down along the vertical column. This type of robot has one axis of rotation and two axes of translation.
Product Parameter
Capacity
Specifications
350-400box/H
Model:LZ-500
Package weight: 80 kg/bag.
Capacity: 350-400 bags/box/hour
Main components are included as following:
A:Main machine frame 1.LZ robot 2.X-axis kinematics 3.Y-axis kinematics 4.Z-axis kinematics 5.C-axis kinematics B:Special fixture 1.Palletizing box mechanical gripper C:Security fence D:Conveying unit 1.Roller buffer conveyor:L2000mm 2.Conveyor to be picked:L900mm E: Electronic control system Robot control board Robot teaching unit Servo motion unit Auxiliary electrical F: Form a complete set Drive part: motor Pneumatic part: cylinder
