Product Description
Self-propelled prestretch film winding machine, by the use of winding film to wrap and fix the pallet of goods, the product is suitable for the packaging requirements of cargo storage, transportation and mechanized handling operations.
The product is compact in structure, beautiful in appearance, advanced in technology, and adopts strict safety protection measures for machine operation. At the same time, in order to facilitate the use of this equipment by non-professionals, measures are adopted to reduce the complexity of the operation panel, so that the operation of the equipment is simple and easy to understand.
Not limited by pallet size and weight; High mobility and low cost (use pre-drawn film rack to save materials); Small packing space.
Product Parameter
Model | |
Film pulling mechanism | Automatic pre-stretching (film pre-stretching ratio up to 1:2.5) |
Power supply for charging | AC220V 50HZ/60HZ 15A |
With storage battery capacity | 100AH (12V)2 |
Charging time of storage battery | 8-10H |
Rated work cycle | 8H-24H |
Walking Motor | Power 0.55 kw DC motor, with governor |
Lift Motor | Power 0.37 kw DC motor, with governor |
Packaging film stretching motor | Power 0.2 kw AC motor |
Minimum package size | 600×600MM |
Maximum walking speed | 62M/min |
Maximum packing size | 2000mm |
Maximum film reel diameter | ¢250mm |
Diameter of rat race cylinder | ¢75mm |
Film tube height | 500mm |
Machine weight | 350KG |
Application
This product is suitable for the packing requirements of container storage, transportation and mechanized loading and unloading of goods. It is widely used for export, food and beverage, filling, paper making, dyestuff, plastic, etc. , chemical, glass ceramics, mechanical and electrical castings and other products of the container cost, improve production efficiency, but also to prevent the goods in the handling process of damage, and play, to dust, moisture and cleaning.

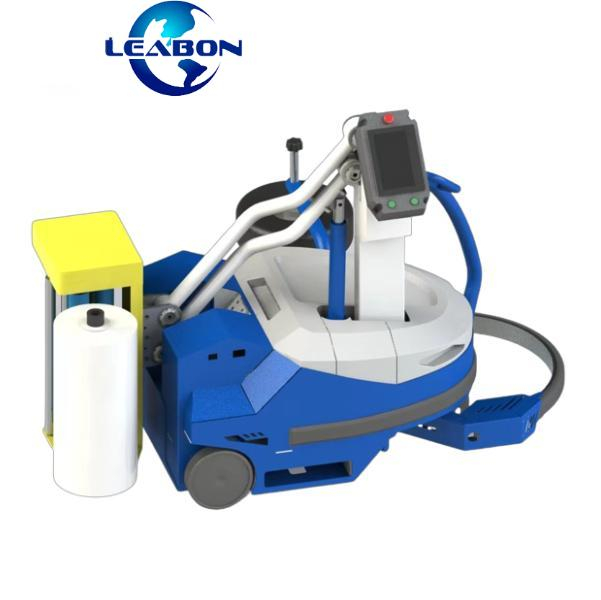

R600 Self-Propelled Wrapping Machine
Product Parameter
R600 | |
Load weight | Unlimited |
Wrapping speed | 3-10RPM/mins |
Packing heigt | Maximum 2000mm(1800mm/2400mm optional) |
Pre-stretch rate | 200% (1m stretch to 3m) or 250% (1m stretch to 3.5m) |
Up&down speed | 1.5-5.5m/mins |
Wrapping speed | 25-30load/H(1*1.2*1.8m pallet Wrap Two layers) |
Film width | 500mm(750mm optional) |
Film diameter | 250mm |
Film paper core | 76mm(50mm optional) |
Film weight | Maximum 15kg |
Machine power | 1.5KW |
Soft strzt&stop | Included |
Intelligent alarm | Included |
Automatic film breaking function | optional |
Speed adjustable | Included |
Measure height | Automatic black/blue color optional |
Wrapping force | Adjustable |
Product memory | Five Mode |
Sensor brand | SICK(Gemany Brand) |
Fix film on pallet | Manual |
PLC | SIEMENS |
Inverter | X-line |
Touch screen | SIEMENS |
Voltage | 220V-240V/50/60HZ Single-Phase |
