LBMS
LEABON

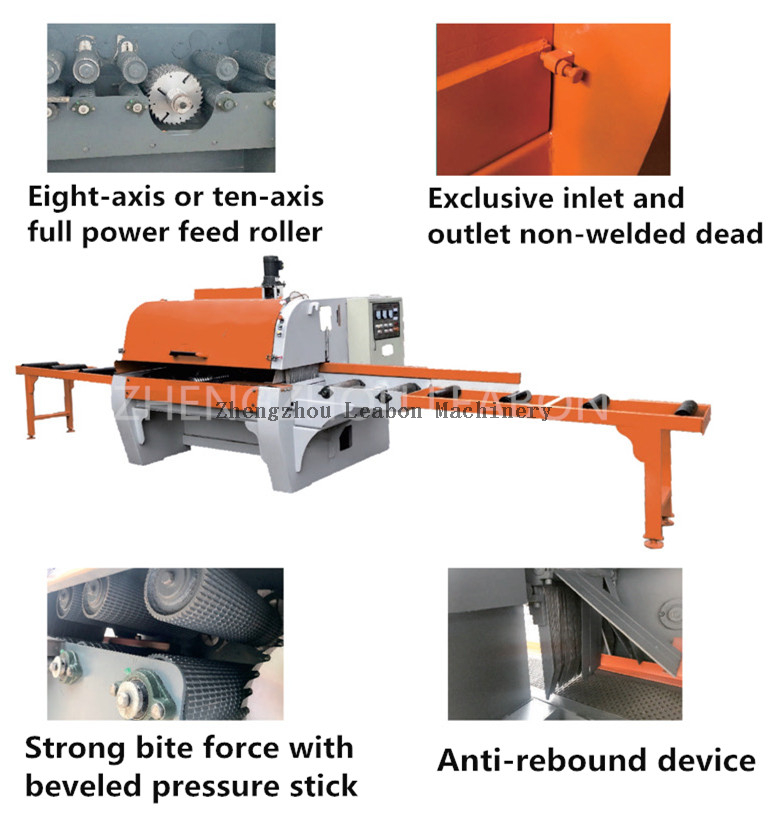

Introduction Light Single-axis Square Wood Multi Rip Saw
1. Machine cabinet: adopt thick wall square shape piping, equilibrium distribution of stress and load. The hole surface of the transmission system and the spindle is formed by one-time wire cutting, ensuring same flatness and verticality!
2.The main shaft: use the high quality material, disposable hole, after the quenching and tempering, grinding, chrome plating and dynamic balance treating, it features at high stability, wear resistance and corrosion resistance!
3.Bearing: imported brand, waterproof, anti tip heating assembly. Long service life and flexible rotation.
4.Saw blade: processing materials dependent, optional to choose alloy saw blade with different specifications, abrasion resistance, heat resistance and no deformation.
5.Cooling: rear shaft spraying, effective in place.
Technical Parameters
Model | LBMS7x20/25/30S |
Processing length(cm) | Over 50cm |
Minimum processing thickness (cm) | 7cm |
Effective processing width(cm) | 20/25/30 |
Saw blade diameter (mm) | 160/180/210 |
Total power equipment (kw) | 22/27/30 |
Feeding speed(m/min) | 8m |
Feeding mode | Semi-automatic |
Installation dimensions(m) | 2.2*1.5*1.5 |
Equipment weight (kg) | 1400kg-1500kg |
Introduction Light Double-axis Square Wood Multi Rip Saw
1.Machine cabinet: adopt thick wall square shape piping, equilibrium distribution of stress and load. The hole surface of the transmission system and the spindle is formed by one-time wire cutting, ensuring flatness and verticality.
2.The main shaft: use the high quality material, disposable hole, after the quenching and tempering, grinding, chrome plating and dynamic balance treating, it features at high stability, wear resistance and
3.Bearing: imported brand, waterproof, anti tip heating assembly. Long service life and flexible rotation.
4.Saw blade: processing materials dependent, optional to choose alloy saw blade with different specifications, abrasion resistance, heat resistance and no deformation.
5.Cooling: rear shaft spraying, effective in place.
6.Feeding: Chain plate feeding. Upper pressure wheel, can be lifted and lowered, and the lower chain plate type. Ensure that smart sensing distributes power and speed properly. The saw pin is even and smooth.
7.Advantage of the whole machine: convenient design, convenient for blade assembly and disassembly, processing timber with multiple specifications. High efficiency and energy saving, convenient operation, simple in maintenance, security and stability!
Technical Parameters
Model | LBMS7x20/25/30 | LBMS9x20/25/30 | LBMS11x20/25/30 | LBMS13x20/25/30 | LBMS15x20/25/30 |
Processing length (cm) | Over 40cm | Over 50cm | Over 70cm | ||
Minimum working height （cm) | 7 | 9 | 11 | 13 | 15 |
Effective machining width (cm) | 20/25/30 | 20/25/30 | 20/25/30 | 20/25/30 | 20/25/30 |
Saw blade diameter(mm) | 160 | 180 | 210 | 230 | 255 |
Total power equipment(kw) | 31/38/45 | 31/38/45 | 31/38/45 | 38/45/55 | 45/55/61 |
Feeding speed(m/min) | 8m | 8m | 8m | 8m | 8m |
Feeding way | Semi-automatic | ||||
Installation dimensions (m) | 2.2×1.5x1.5 | 2.2×1.5x1.5 | 2.2x1.5x1.5 | 2.2×1.5x1.5 | 2.2x1.5x1.5 |
Equipment quality (kg) | 1450kg | 1500kg | 1550klg | 1600kg | 1700kg |
Raw Materials&Final Products
Introduction Light Single-axis Square Wood Multi Rip Saw
1. Machine cabinet: adopt thick wall square shape piping, equilibrium distribution of stress and load. The hole surface of the transmission system and the spindle is formed by one-time wire cutting, ensuring same flatness and verticality!
2.The main shaft: use the high quality material, disposable hole, after the quenching and tempering, grinding, chrome plating and dynamic balance treating, it features at high stability, wear resistance and corrosion resistance!
3.Bearing: imported brand, waterproof, anti tip heating assembly. Long service life and flexible rotation.
4.Saw blade: processing materials dependent, optional to choose alloy saw blade with different specifications, abrasion resistance, heat resistance and no deformation.
5.Cooling: rear shaft spraying, effective in place.
Technical Parameters
Model | LBMS7x20/25/30S |
Processing length(cm) | Over 50cm |
Minimum processing thickness (cm) | 7cm |
Effective processing width(cm) | 20/25/30 |
Saw blade diameter (mm) | 160/180/210 |
Total power equipment (kw) | 22/27/30 |
Feeding speed(m/min) | 8m |
Feeding mode | Semi-automatic |
Installation dimensions(m) | 2.2*1.5*1.5 |
Equipment weight (kg) | 1400kg-1500kg |
Introduction Light Double-axis Square Wood Multi Rip Saw
1.Machine cabinet: adopt thick wall square shape piping, equilibrium distribution of stress and load. The hole surface of the transmission system and the spindle is formed by one-time wire cutting, ensuring flatness and verticality.
2.The main shaft: use the high quality material, disposable hole, after the quenching and tempering, grinding, chrome plating and dynamic balance treating, it features at high stability, wear resistance and
3.Bearing: imported brand, waterproof, anti tip heating assembly. Long service life and flexible rotation.
4.Saw blade: processing materials dependent, optional to choose alloy saw blade with different specifications, abrasion resistance, heat resistance and no deformation.
5.Cooling: rear shaft spraying, effective in place.
6.Feeding: Chain plate feeding. Upper pressure wheel, can be lifted and lowered, and the lower chain plate type. Ensure that smart sensing distributes power and speed properly. The saw pin is even and smooth.
7.Advantage of the whole machine: convenient design, convenient for blade assembly and disassembly, processing timber with multiple specifications. High efficiency and energy saving, convenient operation, simple in maintenance, security and stability!
Technical Parameters
Model | LBMS7x20/25/30 | LBMS9x20/25/30 | LBMS11x20/25/30 | LBMS13x20/25/30 | LBMS15x20/25/30 |
Processing length (cm) | Over 40cm | Over 50cm | Over 70cm | ||
Minimum working height （cm) | 7 | 9 | 11 | 13 | 15 |
Effective machining width (cm) | 20/25/30 | 20/25/30 | 20/25/30 | 20/25/30 | 20/25/30 |
Saw blade diameter(mm) | 160 | 180 | 210 | 230 | 255 |
Total power equipment(kw) | 31/38/45 | 31/38/45 | 31/38/45 | 38/45/55 | 45/55/61 |
Feeding speed(m/min) | 8m | 8m | 8m | 8m | 8m |
Feeding way | Semi-automatic | ||||
Installation dimensions (m) | 2.2×1.5x1.5 | 2.2×1.5x1.5 | 2.2x1.5x1.5 | 2.2×1.5x1.5 | 2.2x1.5x1.5 |
Equipment quality (kg) | 1450kg | 1500kg | 1550klg | 1600kg | 1700kg |
Raw Materials&Final Products
