Product Description

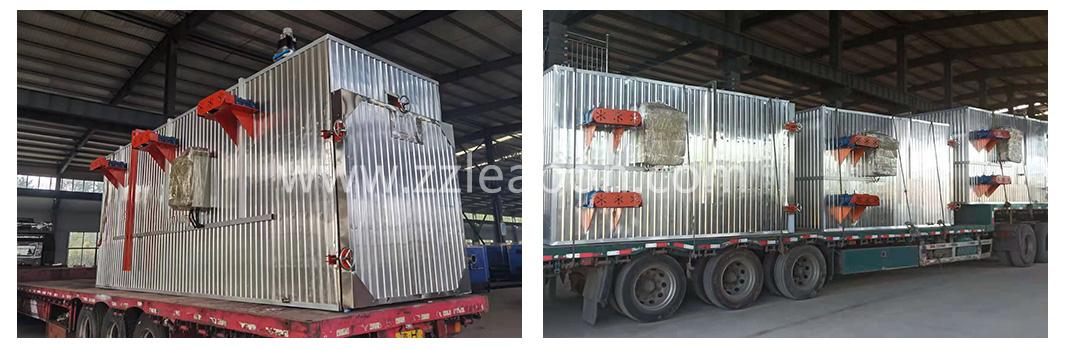

1.Wood Carbonization Kiln
Working principle of wood Carbonization Kiln
Wood Carbonization Kiln is a method of drying wood by stacking it in a closed container under the condition of lower atmospheric pressure. Under vacuum conditions, the boiling point of water decreases and the rate of evaporation increases, thus increasing the drying rate of wood at lower temperatures. In the drying process of wood, on the one hand, surface moisture evaporates into the surrounding air; On the other hand, the water inside is constantly moving toward the surface.
Parameters of Wood Carbonization Kiln
Model | MX-3 | MX-5 | MX-8 | MX-10 | MX-12 | MX-15 | MX-20 |
Main machine size (L*W*H) | 4*2.1*2.2 M | 5.5*2.1*2.2 M | 6.8*2.1*2.2 M | 10*2.1*2.2 M | 12*2.1*2.2 M | 15*2.1*2.2 M | 15*3*2.5 M |
Vacuum pump power | 3KW | 7.5KW | 7.5KW | ||||
Heating system power | 9KW | 27KW | 36KW | 42KW | 6 SETS | ||
High temperature fan | 1PC | 1PC | 1PC | 1PC | 6PCS | 1PC | 6PCS |
2.Heat Pump (Air Energy) Wood Drying Kiln
Advantages of Heat Pump Wood Drying Kiln
l Simple: The installation is simple, no special equipment verification is required. The operation is simple, no special equipment operation certificate is required, and it is unattended, and the labor management cost is greatly reduced
l Low operating cost: Due to the high efficiency and energy saving of the heat pump, the cost of wood drying is greatly reduced. Taking the geographical location of Zhejiang Province as an example, the electricity cost of a heat pump wood drying kiln is equivalent to the cost of steam supply for a wood-fired boiler.
l Energy saving: The energy efficiency of system operation reaches 35%. That is, 1 part of electric energy input can obtain 3.5 parts of heat for wood drying.
l Environmental protection: No pollution and zero emission during the operation of the system, in line with the national environmental protection requirements, replacing boilers.
Parameters of Heat Pump Wood Drying Kiln
Product model | WFT-KHG15 | WFT-KHG20 | WFT-KHG25 | WFT-KHG30 |
Heating capacity [KW] | 48 | 64 | 72 | 96 |
Rated power [KW] | 13.4 | 16.5 | 22.5 | 23.5 |
Rated current [A] | 20.2 | 24.9 | 34.8 | 35.5 |
Maximum input power [KW] | 20.1 | 24.75 | 28.5 | 35.25 |
Maximum input current [A] | 30.5 | 37.6 | 42.8 | 53.6 |
Maximum dehydration [L/h] | 38 | 58 | 67.5 | 84 |
Optimal air temperature | 55 | 55 | 55 | 55 |
Maximum outlet air temperature | 75 | 75 | 75 | 75 |
Use ambient temperature | -5~43℃ | |||
Power supply | 380V~50Hz | |||
Type of refrigerant | Mixed condensation | Mixed condensation | Mixed condensation | Mixed condensation |
Dimensions (L*W*H) [mm] | 1510*810*1545 | 2100*910*2020 | 2100*910*2020 | 2100*910*2020 |
Main unit weight [KG] | 360 | 770 | 850 | 850 |
Main unit noise [DB(A)] | ≤68 | ≤72 | ≤72 | ≤72 |
3.Steam heating wood drying kiln
Full automatic control system feature:
1-The whole drying process is automatic control with computer.
2-To realize automatic program control on heating, steam infection, dehumidifying, fan positive inversion
3-It real-time display and alarm of the drying process, drying parameters and drying fault.
4-It prepares and stores 99 drying process benchmark program according to the thickness of the different species.
5-Automatic control system: Italy Control System and Leabon Control System,
Leabon control system applies to drying ordinary wood (such as pine, fir, lauan, Merbau etc,)
Italy control system applies to drying high-grade rare wood (such as Lobular red sandalwood, Siam Rosewood, rosewood, ebony etc.)
Parameters
Type | valume in theory m2 | The size of pilingwood( WxLxH)mm | The size of external kiln (WxLxH)mm | Motor quantity | Total power(kw) | Drying source |
Aluminum alloy structure | ||||||
MYHG-60 | 30 | 4000x3600x4200 | 4400x5000x5500 | 2 | 6 | Steam |
MYHG-80 | 40 | 4000x4600x4200 | 4400x6200x5500 | 2 | 6 | |
MYHG-100 | 50 | 6000x3800x4200 | 6400x5000x5500 | 3 | 9 | |
MYHG-120 | 60 | 6000x4600x4200 | 6400x6200x5500 | 3 | 9 | |
MYHG-160 | 80 | 8000x4600x4200 | 8400x6200x5500 | 4 | 12 | |
NYHG-200 | 100 | 8000x6000x4200 | 8400x8000x5500 | 5 | 15 | |
MYHG-240 | 120 | 10000x6000x4200 | 10500x8000x5500 | 6 | 18 | |
MYHG-300 | 150 | 12000x6000x4200 | 12600x8000x5500 | 8 | 24 | |
MYHG-400 | 200 | 12000x7000x4200 | 12600x9200x6100 | 10 | 30 |
