Horizontal Wood Shaving Machine
You are here: Home » Products » Wood Grinding, Shaving, Wooling,etc. Process » Horizontal Wood Shaving Machine
Horizontal Wood Shaving Machine

loading

Horizontal Wood Shaving Machine Horizontal Wood Shaving Machine

Horizontal Wood Shaving Machine

Availability:
Quantity:
  • BH500 BH1000

  • LEABON

Our new design Mechanica wood shaving machine also called wood shaves making machine, wood crusher machine, wood chips machine. According to the domestic need and adopt Turkey process technology, we do some improvement on the machine.
Product Description

Mechanical Horizontal Wood Shaving Machine

Introduction of Mechanical Wood Shaving Machine

1)Wood shaving machine (also named wood chipper/cutting machine) is an ideal machine, which for preparing with producing wood shavings.
2)It can make the logs, tree branch, edge processed wood into wood shavings with less investment low energy consumption, high efficient, yield good economic returns .
3)The finished shaving is the same as that produced from the furniture factory. They are mainly used as the bed of the horse, chicken or other animal by farm or horse club, poultry/animal’s farms.
4)Also be used as raw materials, which for produce edible mushrooms, shaving board, sawdust board and dense board.

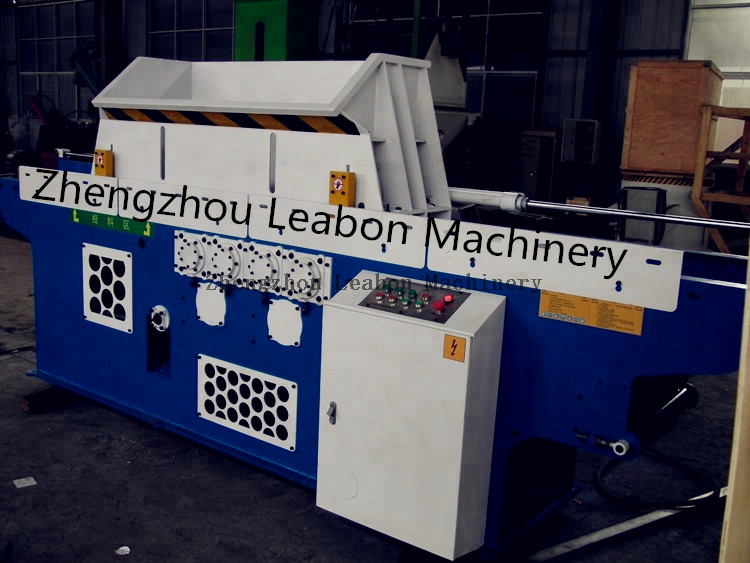

automatic wood shaving machine1

Feature of Mechanical Wood Shaving Machine

Advanced technology:Based on the Turkey techonlogy, do some improvement on the base, using the accurate punching and embed method which avoide loosing wih the machine when running

Widely use:The wood shaving machine can produce the small valume and light wood shavings which can be used in paper mill, transportation filler and animal bedding etc.

High quality:spare partsYou have the choice of HSS or KS55 for the blades, and FAG for the bearing which can be use for a long time and quite durable.

 Hydraulic transmission:Stable performance and low noise

raw material of wood shaving machine

Main Data of Horizontal Wood Shaving Machine

Model

  BH500-1

BH500-2

BH500-4

 BH500-6

BH1000-6

Wood length(mm)

800

800

1600

1600

1800

Wood width(mm)

500

500

500

500

1000

Planer head

1

2

4

6

6

Blade

4

8

16

24

48

Speed(r/min)

3500

3500

3500

3500

3500

Hopper length(mm)

800

800

1600

1600

1800

Motor

7.7KW

10.5KW

21.25KW

28.75KW

50KW

Length of planing

0.2-2

0.2-2

0.2-2

0.2-2

0.2-2

Capacity(kg)

250KG/Hour

500KG/Hour

1000KG/Hour

1500KG/Hour

4000KG/Hour

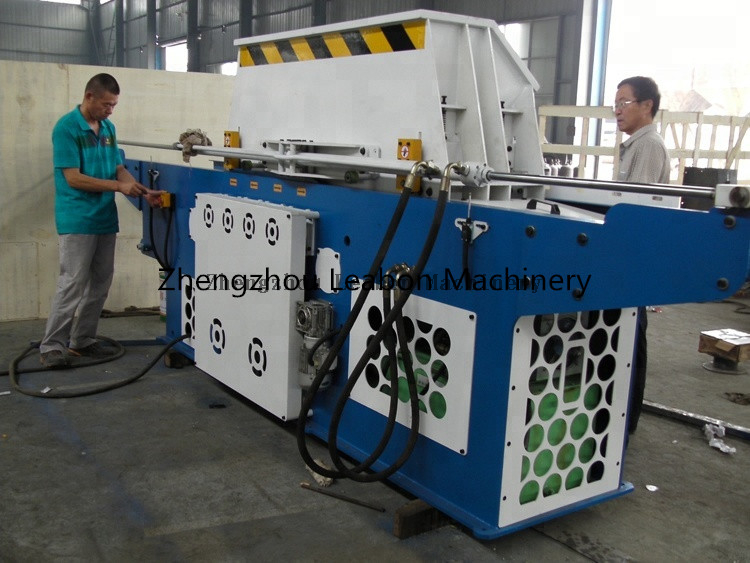

autoamtic wood shaving machine

The parts of wood shaving machine :

wood shaving machine parts

Final shavings :

final shavings
