Product Description

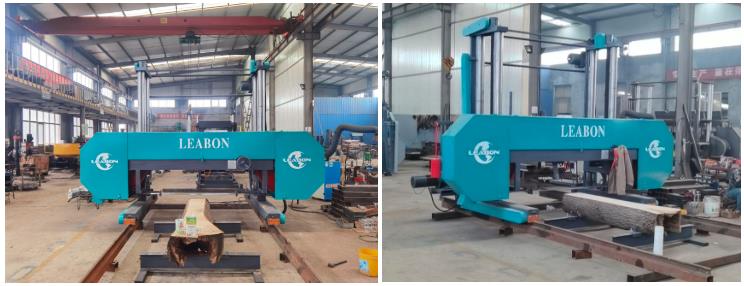

Horizontal Sawing Heavy Duty Horizontal Band Saw

Heavy Duty Horizontal Band Saw (1)_副本

-PRODUCT FUNCTIONS:

1. This machine is applicable to processing of large-diameter logs, square wood and tree
roots(1000mm--2500mm).
2. Able to automatically move forward or backward and carry out NC ascending 8
descending, with step less speed regulation function.
3. The cut wood plate has the uniform thickness, with high flatness and small thickness error.
4. Have simple and reasonable structure to be convenient for installation debugging and moving.

- TECHNICL PARAMETER:

Model	LB-1500	LB-2000	LB-2500
Max sawing wood diameter	1500mm	2000mm	2500mm
Max sawing wood length	12000mm	12000mm	12000mm
Max sawing wood thickness	350mm	450mm	450mm
Max Sawing Height	1200mm	1500mm	2000mm
Width of sawing wheel	120mm	150mm	150mm
Total Power(380V,50Hz,3phase)	34KW	50KW	61KW
Main Motor Power	30KW	45KW	55KW
Max forward speed	6m/min	4m/min	4m/min
Max backward speed	6m/min	4m/min	4m/min
Size of Saw balde	84001201.25mm	94001501.25mm	104001501.25mm
Rail lenngth(Standard model)	15000mm	15000mm	15000mm
Main machine Dimension(L×B×H)	380016002000mm	4200×2000×2500mm	480020003000mm
Weight	4000kg	5000kgs	6000kgs

APPLIANCE:

wood log debarker (1)_副本
