Automatic Package Wood Pallet/Carton Box/Bag by Plastic Package Bags
Product Description

High Quality Intelligent Online Fully Automatic Pallet Wrapping Machine With Slewing RingTurntable
High Quality Intelligent Online Fully Automatic Pallet Wrapping Machine with Slewing Ringturntable

Tehnical Parameter of Full Automatic Pallet Wrapping Machine for Pallet:
Model
X100
PLC
SIEMENS
Turntable size
Standard 1650mm
(1800/2000mm optional)
Inverter
SIEMENS
Wrapping height
Standard 2400mm
(1800/3200mm optional)
Touch screen
SIEMENS
Max Load Weight
2000kg
Sensor brand
SICK (Germany Brand)
Pre-stretch rate
300% (1m stretch to 3 meter)
Product Memory
Five Mode
Wrapping speed
30 - 40 load / H (1x1.2x1.8m pallet Warp Two Layers)
Measure height
Automatic (black/blue color optional)
Up & down speed
1.5 ~5.5 m/mins
Pallet Grip System
pallet top/bottom grip optional
Film Width
500mm (750mm optional)
Safety device
Film carriage pressure-proof device
Film diameter
250mm
Remote start machine
Have
Film paper core
76 mm (50 mm optional)
Stop at original
Included
Film weight
Maximum 15KG
Cut film clamp film
Fully automatic
Machine power
1.5KW
Wrapping force
Adjustable
Voltage
220V-240V/50/60HZ Single-Phase (110V/50 Hz optional)
Intelligent Alarm
Included
Machine weight
750KG
Certificate
CE
Machine size
2800*1650*2745mm(L*W*H)
Optional device
Ramp ,Weighing scale

Different Angle of Full Automatic Pallet/Carton Wrapping Machine:
High Quality Intelligent Online Fully Automatic Pallet Wrapping Machine with Slewing Ringturntable
High Quality Intelligent Online Fully Automatic Pallet Wrapping Machine with Slewing Ringturntable

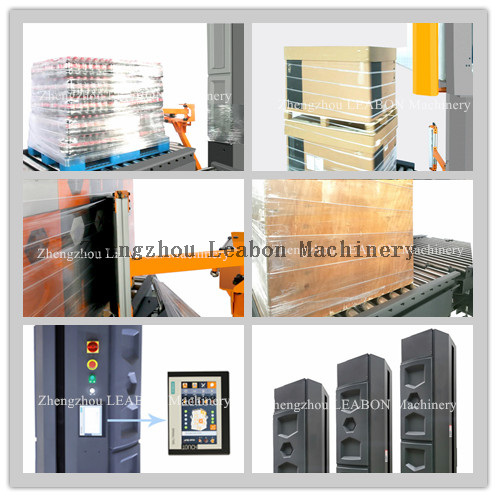

Detailed Photos

Detils Introduction of Full Automatic Wrapping Machine :
High Quality Intelligent Online Fully Automatic Pallet Wrapping Machine with Slewing Ringturntable

1. Variable wrapping force system
Automatic adjust wrap force according to pallet shape
1.let every part of the pallets be wrapped tightly
2.protect the corner of the loads ,avoid the corner concave. 300% Pre-stretch rate , save 30% film compared to traditional pallet wrapping machine .


2. Pallet Grip system
Pallet grip system : film bottom narrowed to become film rope , film rope grip to pallet & products during wrapping.
1.during transport ,no need worry the products fall down when the pallets get violent vibration
2.if the truckfork damage the film on the bottom of pallet ,the film do not breach .
3.pallet bottom grip and whole journey grip can replace the horizontal strapping machine

3. Intelligent Touch Screen
We all use Siemens Touch Screen, Siemens Inverter and Siemens PLC.
We do not want to use cheap brand spare parts that may cause lots of trouble to our customers .

4.Slewing Bearing Turntable
Pallet wrapper use the slewing bearing turntable ,max load weight 3000KG ,more quiet and lower vibration compare with the chain drive turntable.

5. Durable Conveyor
Automatic pallet wrapping machine use 89mm stainless steel roller , the joint conveyor on wrapper which need be linked to input&output conveyor also use chain drive.
So that the pallet can be moved from the conveyor to wrapper smoothly.

6. Auto Cut & Clamp Film System
New Design , More Better Performance can cut and clamp film automatically.

7. Safety Device - Intelligent Alarm System
Safety device under film carriage can protect the head of the operator .
During the machine working ,if the have have any problem, the machine will alarm to inform the operate come to check machine ,
all the alarm problems will be shown on the touch screen ,the operator can solve it immediately.

High Quality Intelligent Online Fully Automatic Pallet Wrapping Machine with Slewing Ringturntable
Application Site

Automatic Wrapping Machine Working At Customer's Factory
High Quality Intelligent Online Fully Automatic Pallet Wrapping Machine with Slewing Ringturntable
