Product Description

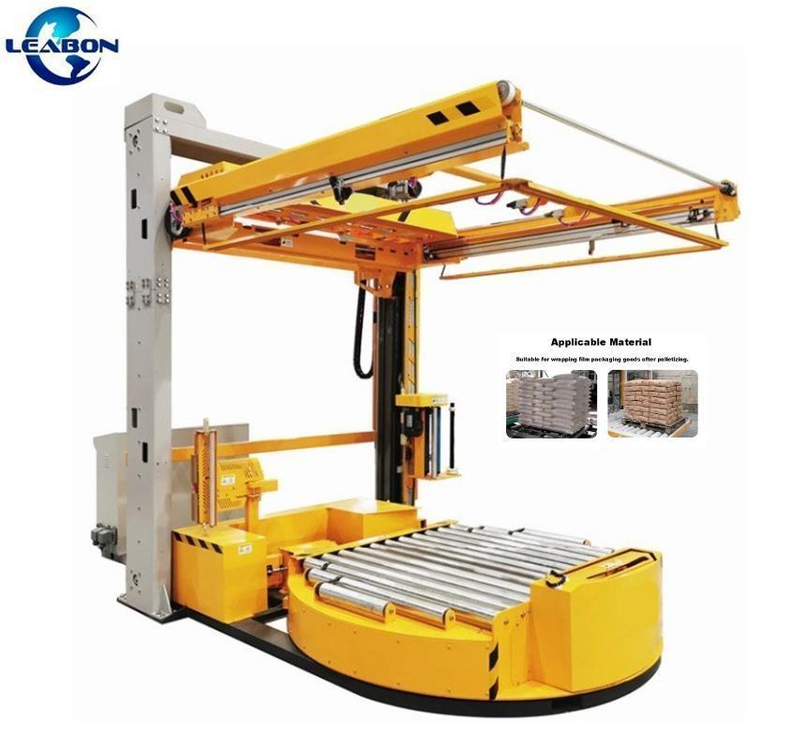

Online Top-covering Film Wrapping Machine
The online top film winding packaging machine is a new automatic winding packaging machine based on the market demand at this stage, which is suitable for wrapping film packaging goods after palletizing.
The winding packaging machine can play a positive role in preventing loose packaging of products, improving the packaging efficiency, improving the packaging effect, and increasing the added value of the product. The supporting production line can realize five-sided automatic packaging.
Product Parameter
Structure of Product
Applicable Material
Other Type Top-Covering Wrapping Machine
Cantilever top covering membrane winding packaging machine
Product Parameter
Model | LB-YB1800FM |
Turning diameter | 1900mm |
Wrapping specification | 1200mm x 1200mm ( LxW ) |
Packaging height | 2000mm/2400mm/2800mm |
Packaging efficiency | 20-30orr/h |
Rotation speed | 3-15rpm ; Speed variable frequency adjustable |
Membrane rack system | Pre stretching membrane rack, pre stretching up to 250%, automatic film feeding, variable frequency speed regulation |
Control system | PLC control, touch screen display, adjustable winding layers and times, automatic reset of turntable, automatic sensing of cargo height |
Air source | 1000ml/m3 |
Operating Weight | 1200KG |
Overall dimensions | 3400mm x2000mmx3100mm |
Power/Voltage | 3.5KW AC220V/50HZ |
Operating Weight | 350KG |
Overall dimensions | 1900mm*900mm*2100mm |
Power/Voltage | 1.5KW AC220V/50HZ |
Optional | Weighing device/heightening/weighting |
Product Description
Online Top-covering Film Wrapping Machine
The online top film winding packaging machine is a new automatic winding packaging machine based on the market demand at this stage, which is suitable for wrapping film packaging goods after palletizing.
The winding packaging machine can play a positive role in preventing loose packaging of products, improving the packaging efficiency, improving the packaging effect, and increasing the added value of the product. The supporting production line can realize five-sided automatic packaging.
Product Parameter
Structure of Product
Applicable Material
Other Type Top-Covering Wrapping Machine
Cantilever top covering membrane winding packaging machine
Product Parameter
Model | LB-YB1800FM |
Turning diameter | 1900mm |
Wrapping specification | 1200mm x 1200mm ( LxW ) |
Packaging height | 2000mm/2400mm/2800mm |
Packaging efficiency | 20-30orr/h |
Rotation speed | 3-15rpm ; Speed variable frequency adjustable |
Membrane rack system | Pre stretching membrane rack, pre stretching up to 250%, automatic film feeding, variable frequency speed regulation |
Control system | PLC control, touch screen display, adjustable winding layers and times, automatic reset of turntable, automatic sensing of cargo height |
Air source | 1000ml/m3 |
Operating Weight | 1200KG |
Overall dimensions | 3400mm x2000mmx3100mm |
Power/Voltage | 3.5KW AC220V/50HZ |
Operating Weight | 350KG |
Overall dimensions | 1900mm*900mm*2100mm |
Power/Voltage | 1.5KW AC220V/50HZ |
Optional | Weighing device/heightening/weighting |
