LBH-700,LBH-1000,LBH-1300
LEABON

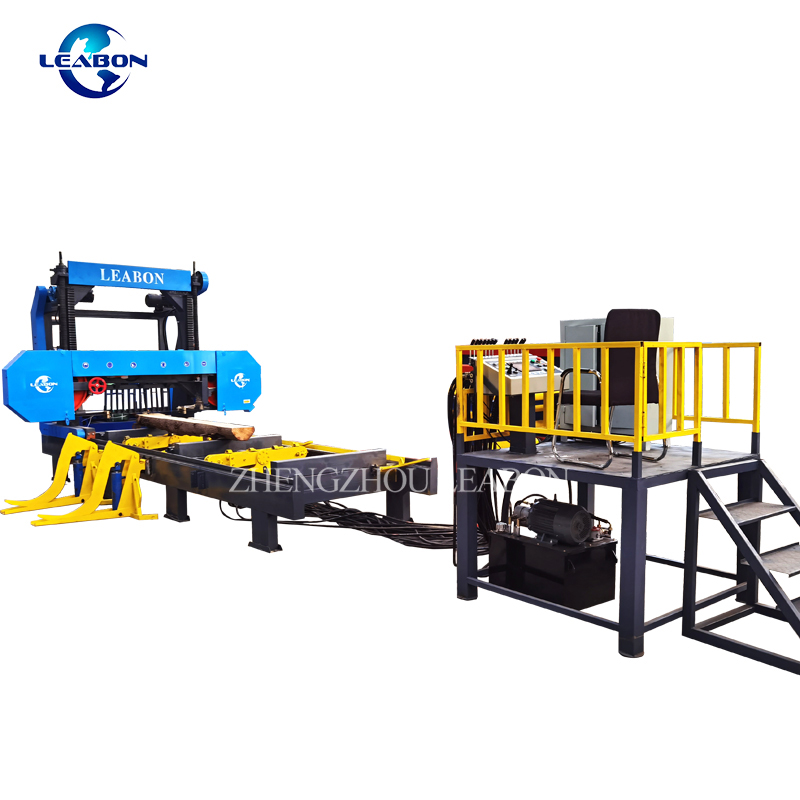

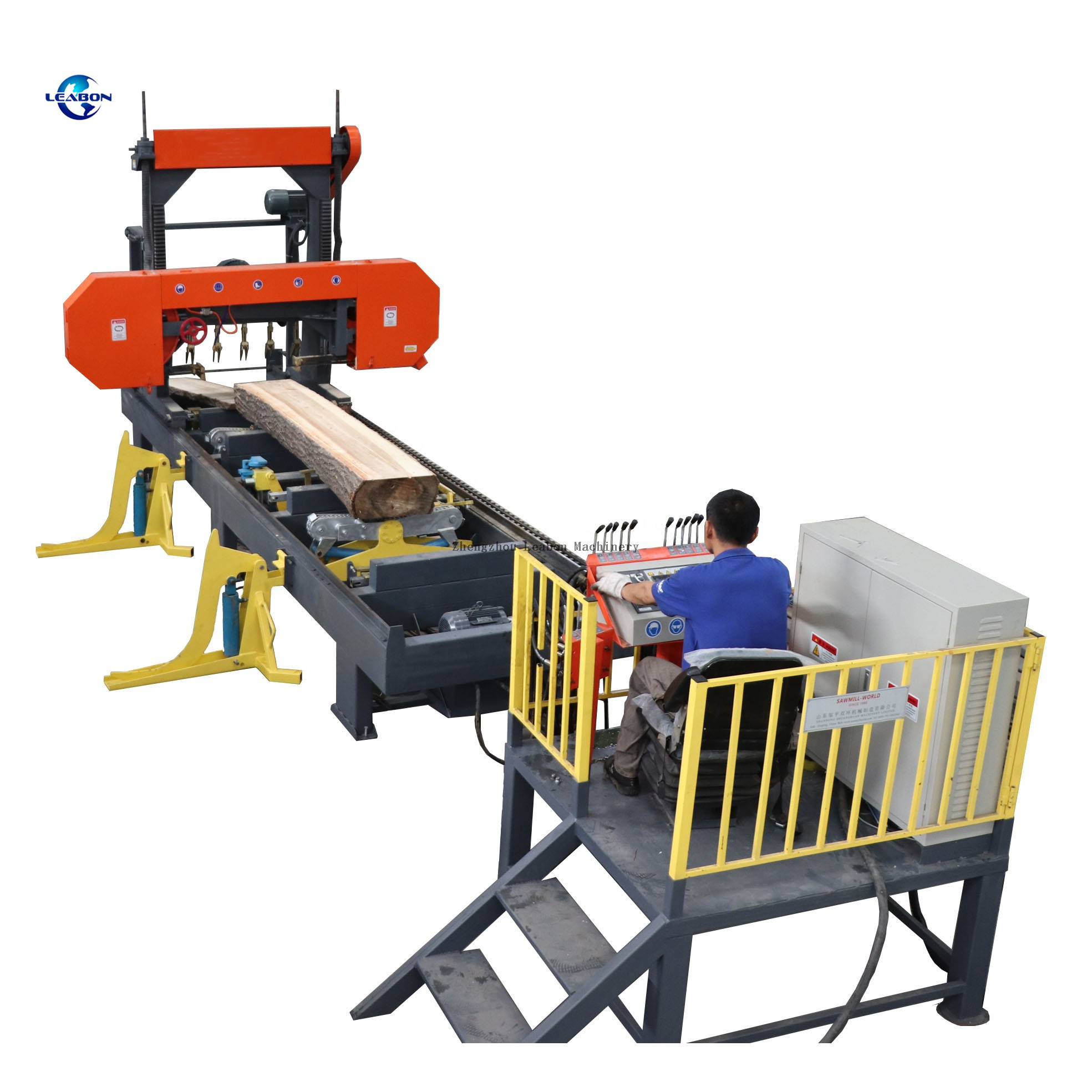

Hydraulic Automatic Horizontal Sawmill
- PRODUCT INTRODUCTION:
Combined with hydraulic automation technology, the hydraulic horizontal band sawmill realizes all-digital intelligent control. Chinese and English operating system, automatic wood rotation, sawing and cutting of large diameter wood, simple operation of equipment, precise cutting thickness, improves wood usage rate.
- DETAILED INFORMATION:
Touch screen sizing,
variable frequency speed adjustable forward.backward.
Hydraulic chain rotation.
Hydraulic rotation clamping.
Hydraulic wood clamp.
Hydraulic log stop pole.
Board automatic return hook.Hydraulic plank roller axle.Hydraulic log loading arm.
-MAIN DATA:
Model | LBH-700 | LBH-1000 | LBH-1300 |
Max sawing wood diameter | 700mm | 1000mm | 1300mm |
Saw wheel diameter | 700mm | 700mm | 700mm |
Max sawing wood thickness | 300mm | 300mm | 300mm |
Standard sawing wood length | 4500mm | 4500mm | 4500mm |
Main Power | 18.5KW | 22KW | 30KW |
Hydraulic Power | 3KW | 4KW | 4KW |
Band saw blade width | 40-80mm | 40-80mm | 40-80mm |
Machine length | 6000mm | 6000mm | 6000mm |
Weight | 3000kg | 3300kg | 3500kg |
-APPLIANCE:
