| Availability: | |
|---|---|
| Quantity: | |
Product Description

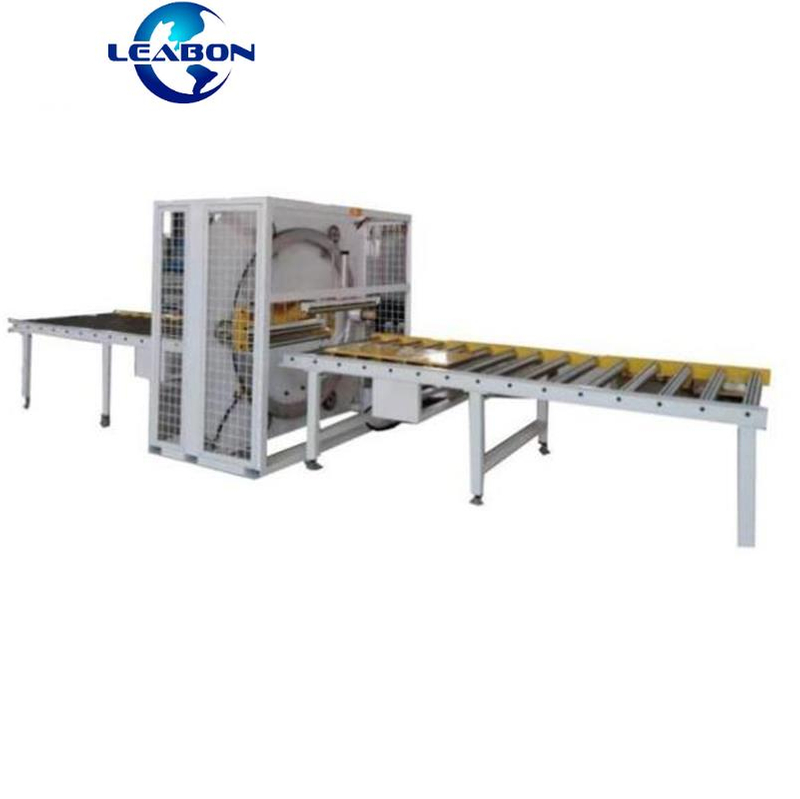

It refers to equipment that wraps packaging tape onto goods through vertical rotating rings. This model needs to be used in conjunction with the power line. Suitable for packaging profiles and long strip goods, it is widely used in industries such as building materials. Can improve logistics efficiency.
Select the swivel size according to the cross-section size of the customer's goods. Optional parts automatically break the film.
Both ends of the horizontal winding machine should be used with conveyor lines.
Product Parameter
Product name/specification | LB-SP1600L |
Package length | ≤2200mm |
Package diameter | 400mm |
Cross section of goods | (W×H）550X550mm |
Packaging speed | 4-6m/min |
Packaging efficiency | 40-60s/piece |
Operation voltage | 380V.50Hz |
Main engine power | 3.5KW |
Packaging material material | Stretch film, anti rust composite paper, woven tape, aluminum plastic film, etc |
Packing material inner diameter | Φ38、Φ50、Φ75 |
Outer diameter of packaging materials | Φ150-Φ600 |
Packaging material width | 50-120mm |
The lifting stroke is 250mm; Horizontal movement 400mm | |
Automatic film breaking mechanism /ZD (optional) | Knife type, pneumatic control, simple and convenient operation and maintenance |
Automatic winding mechanism /ZS | Pneumatic control |
Pneumatic roof pressure /CS | Optional |
Pneumatic roller protector /HG | Optional |
Conveyor line (custom) | Roller conveyor lines, flippers, etc |
External dimension | 1550×1250×1280mm |
Machine weight | 800Kg |
Other Type Wrapping Machine
1.Vertical ring wrapping machine
It refers to equipment that wraps packaging tape onto goods through vertical rotating rings. The difference between this model and the horizontal winding machine is that the rotating ring has an opening. Mainly suitable for circular goods such as tires, steel strips, coils, cables, etc., it can improve packaging efficiency and reduce the loss of packaging materials. It has the advantages of dustproof, moisture-proof, and reducing packaging costs.
According to type, it can be divided into upper opening, lower opening, and horizontal ring body. The selection is based on the outer diameter and cross-sectional size of the goods.
2.Horizontal ring wrapping machine
Horizontal ring body winding packaging machine is a kind of winding machine that takes stretch film and wrapping paper as packaging raw materials and individual packaging of copper rings and various ring items, its point is to completely replace manual winding packaging, with convenient operation and fast packaging speed, which greatly improves production efficiency and reduces the labor intensity of workers. The packaging effect of the winding packaging machine is beautiful and neat, and the tension is strong. Play a dust-proof, moisture-proof, protect the product surface role. Easy to transport and store, improve product appearance quality.
Applicable Material
