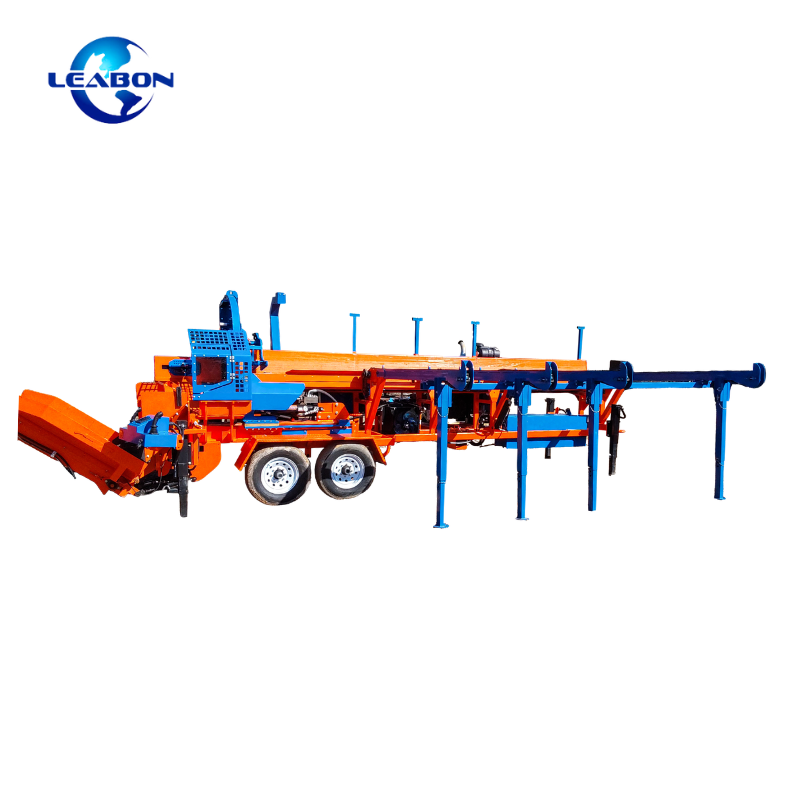

This automatic wood splitter machine is an all-in-one solution for commercial-scale for wood processing. It integrates log feeding, cutting, splitting, and conveying functions into a single mobile unit, enabling you to process raw logs into finished firewood with minimal manual intervention. Built for durability and high efficiency, this machine is ideal for firewood yards, forestry operations, biomass fuel plants, and farms.
This automatic wood splitter machine is an all-in-one solution for commercial-scale for wood processing. It integrates log feeding, cutting, splitting, and conveying functions into a single mobile unit, enabling you to process raw logs into finished firewood with minimal manual intervention. Built for durability and high efficiency, this machine is ideal for firewood yards, forestry operations, biomass fuel plants, and farms.
Technical Parameter
Maximum thrust
40T
Maximum split length
600 mm
Maximum diameter
50 cm
Circulation time
3S
Work efficiency
10-15 CBM/H
Clamping method
Auto
Saw cutting
Automatic cycle sawing
Lubrication
Auto lubrication
Split wood
Auto
Wood Splits
4-way/6-way/8-way choosable
Circular saw motor
11 KW
Hydraulic motor
22 KW
Split wood cylinder
3.15"x24"x2"
Hydraulic fluid chamber
100L
control mode
PLC system
Log table
2*2 m
Feed size
100*50 cm
Discharge size
360*42 cm

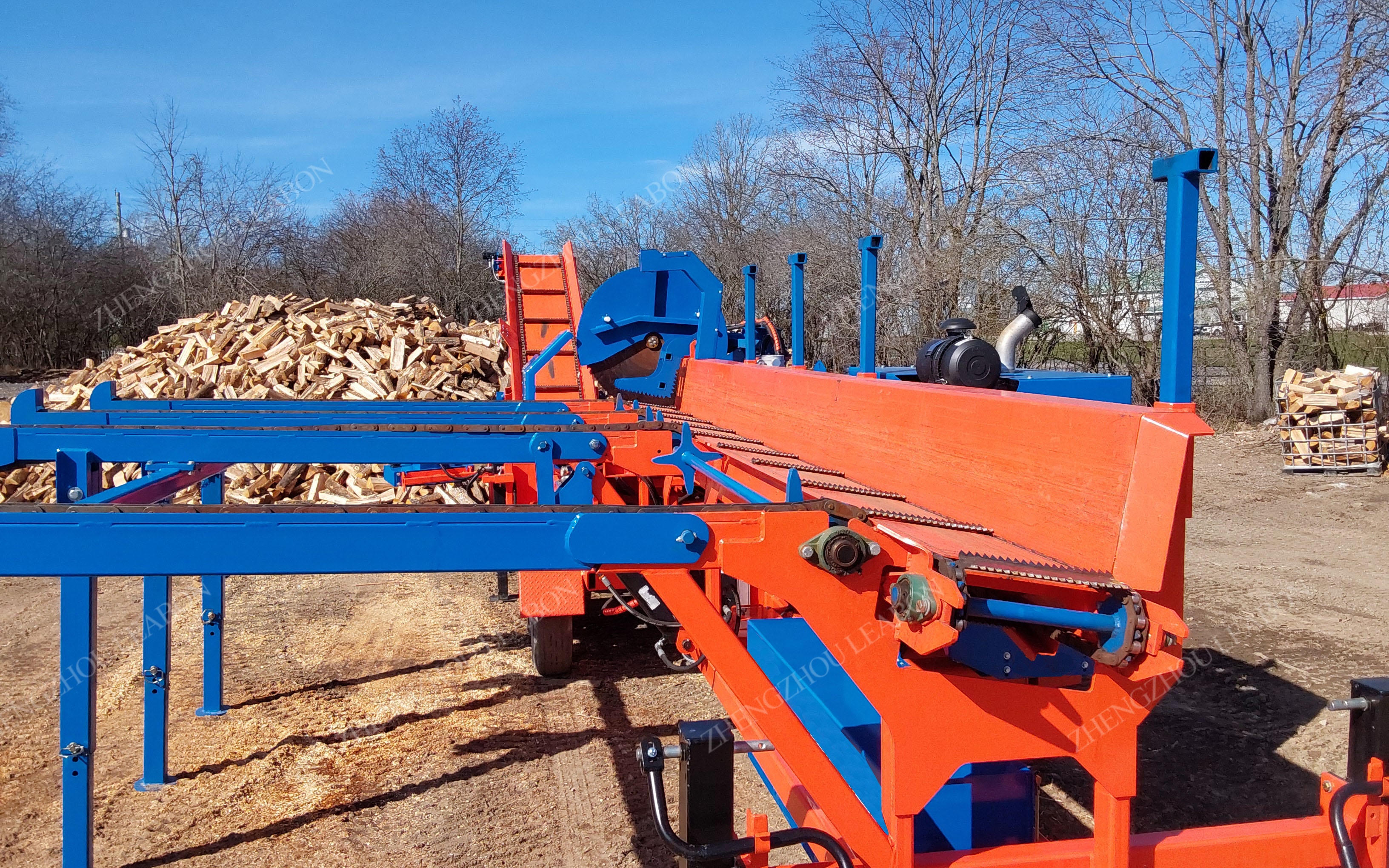

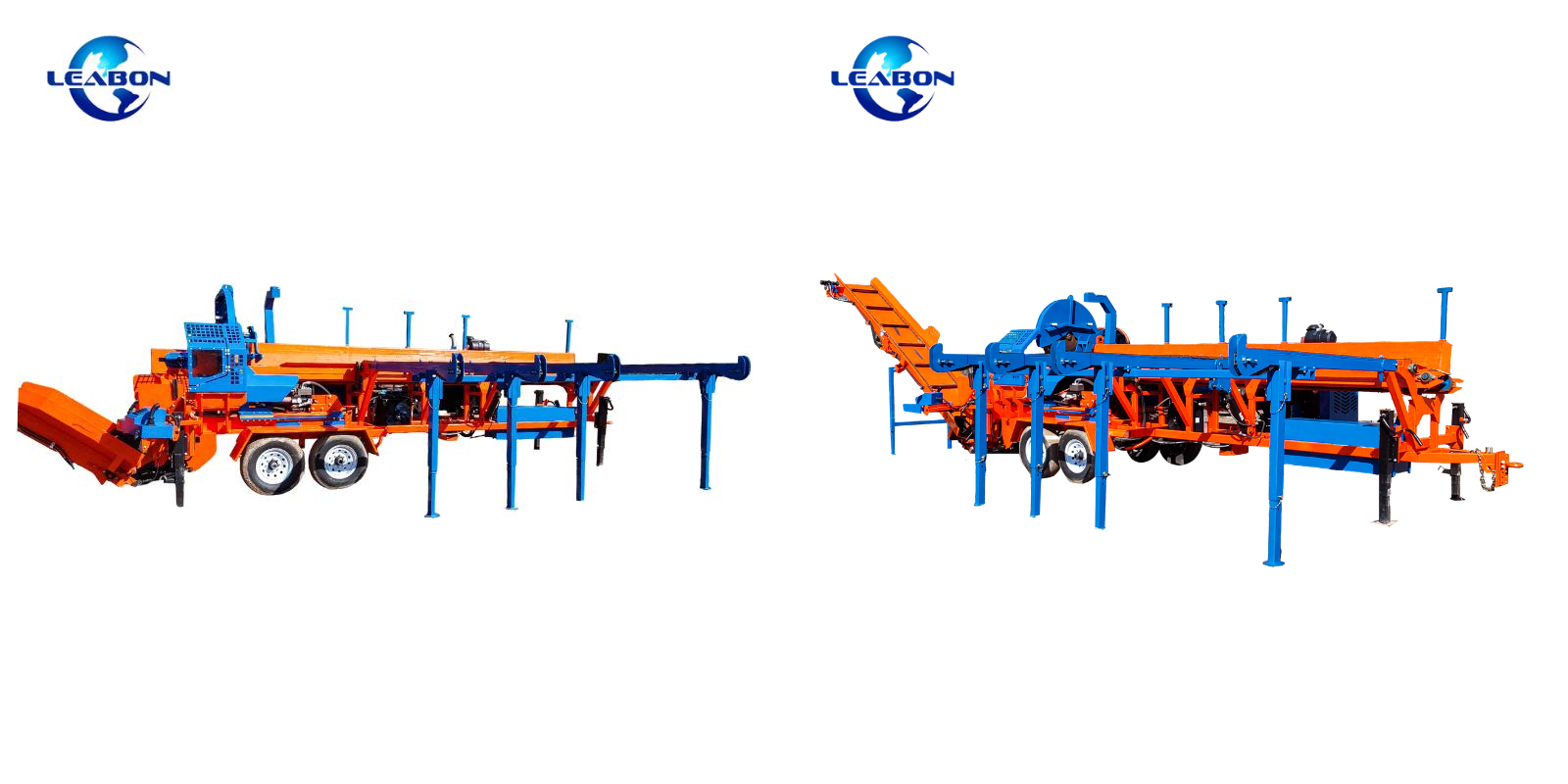

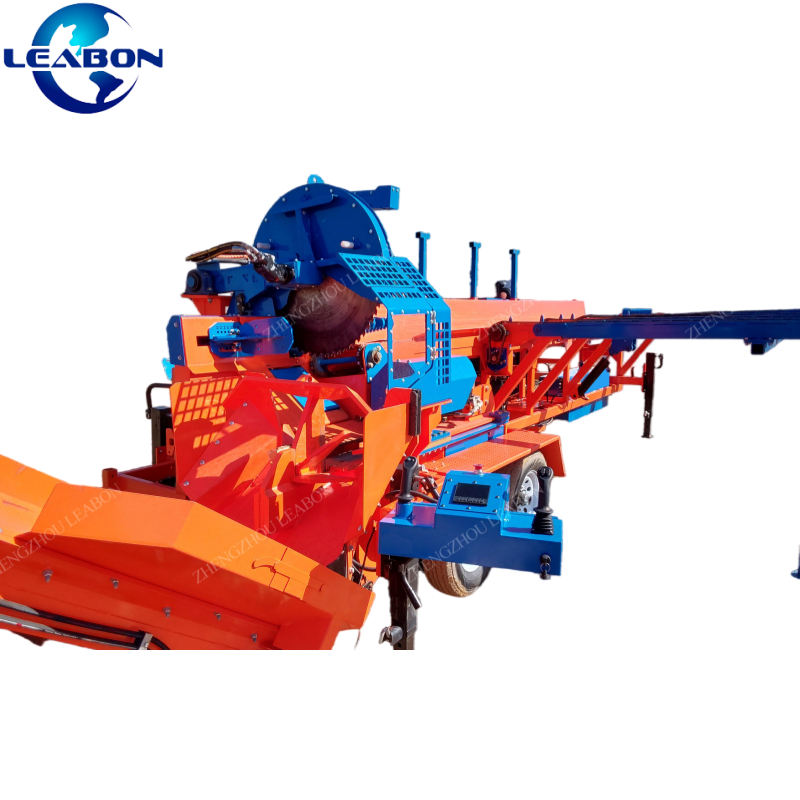

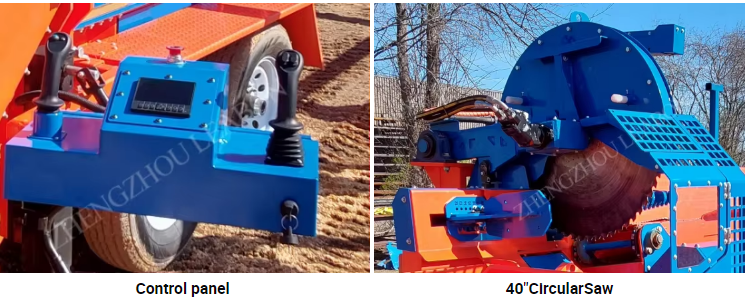

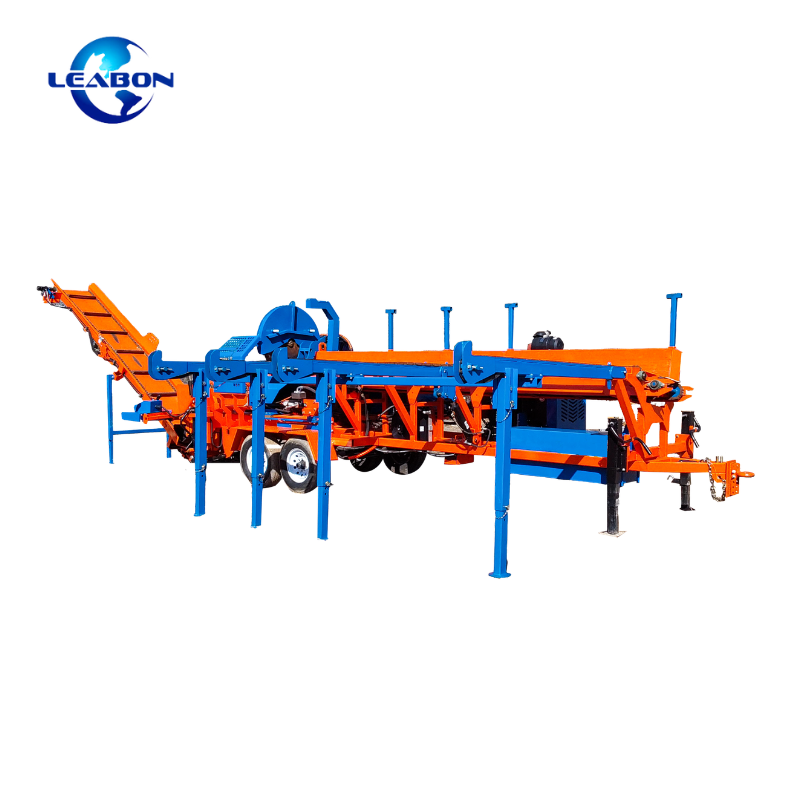

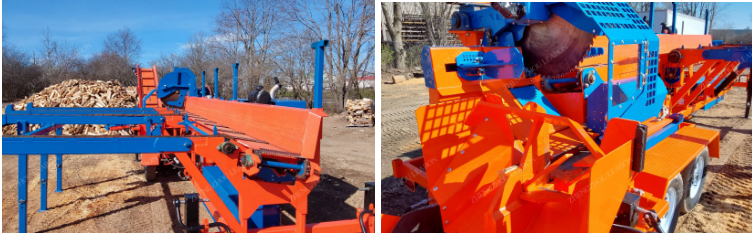

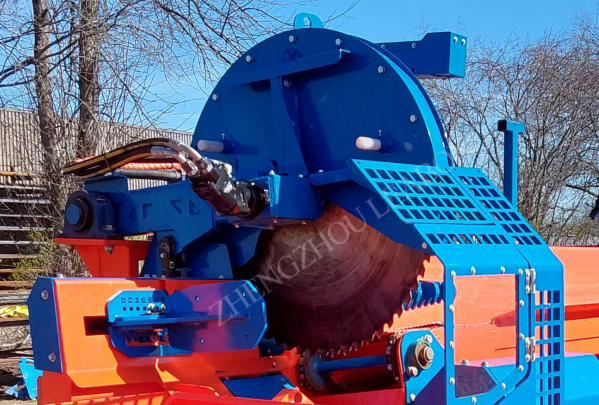

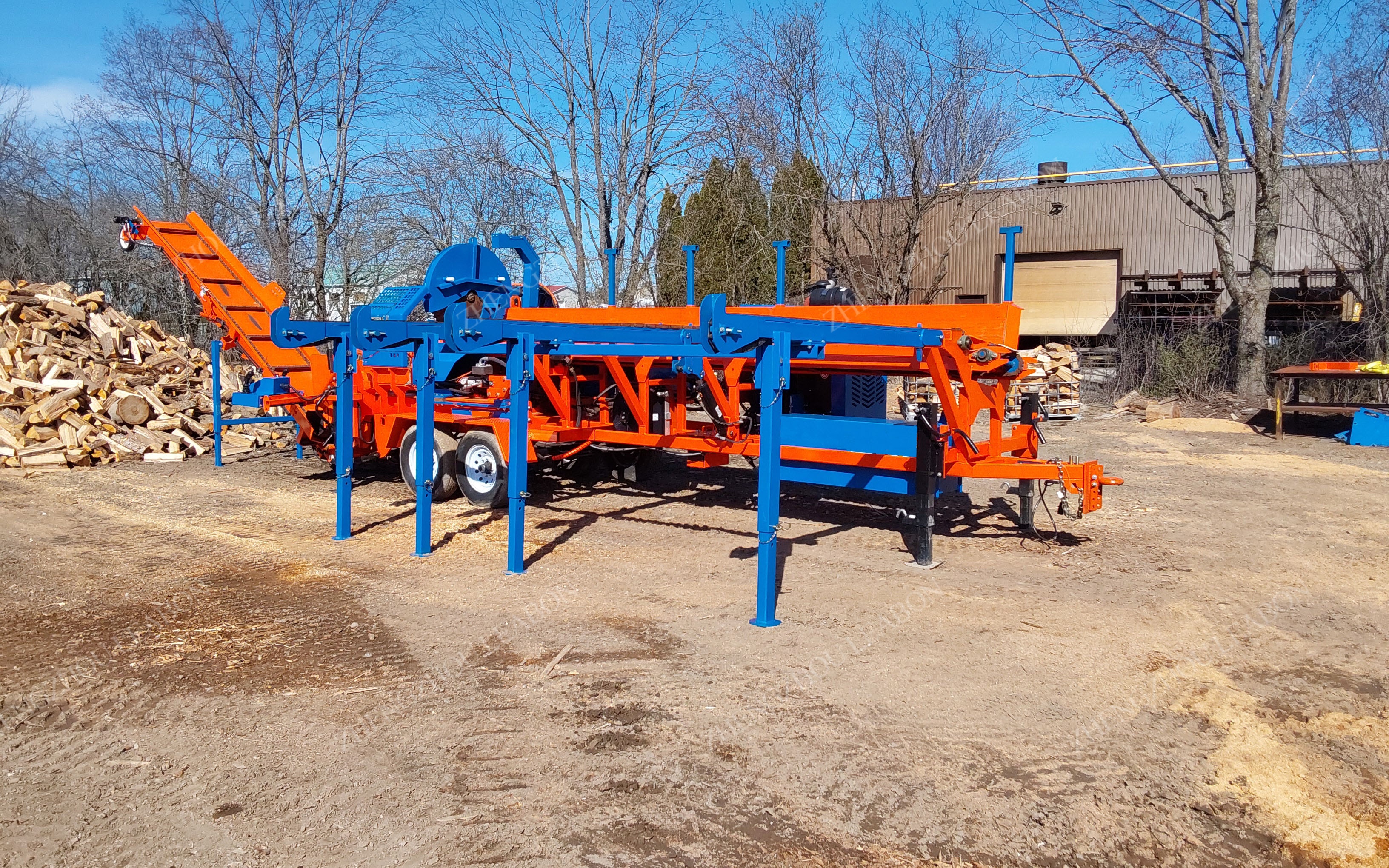

Detailed Pictures
Working Principle
This wood splitter converts raw logs into finished firewood through 4 key steps: 1.Feeding & Conveying: Logs are loaded onto the infeed conveyor and guided into the machine. 2.Cutting: The circular saw blade cuts logs to the preset length. 3.Splitting: The hydraulic piston pushes cut logs against the multi-way wedge to split them. 4.Discharging: Finished firewood is carried away by the outfeed conveyor for collection.

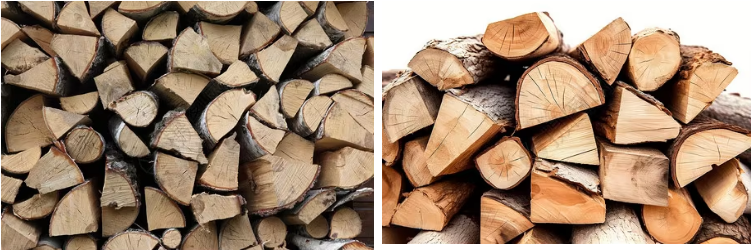

Finished Products
