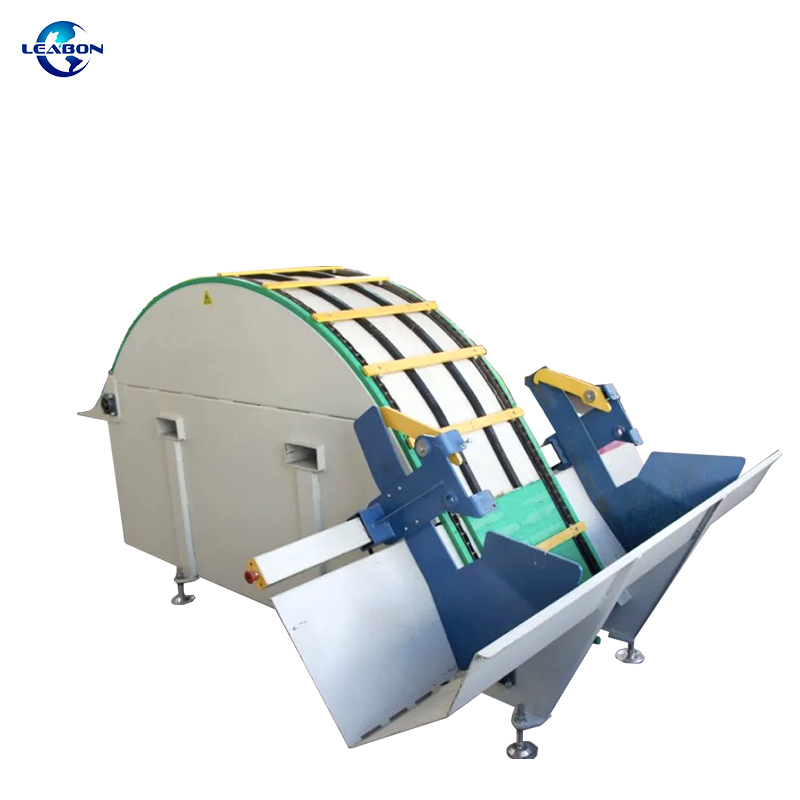

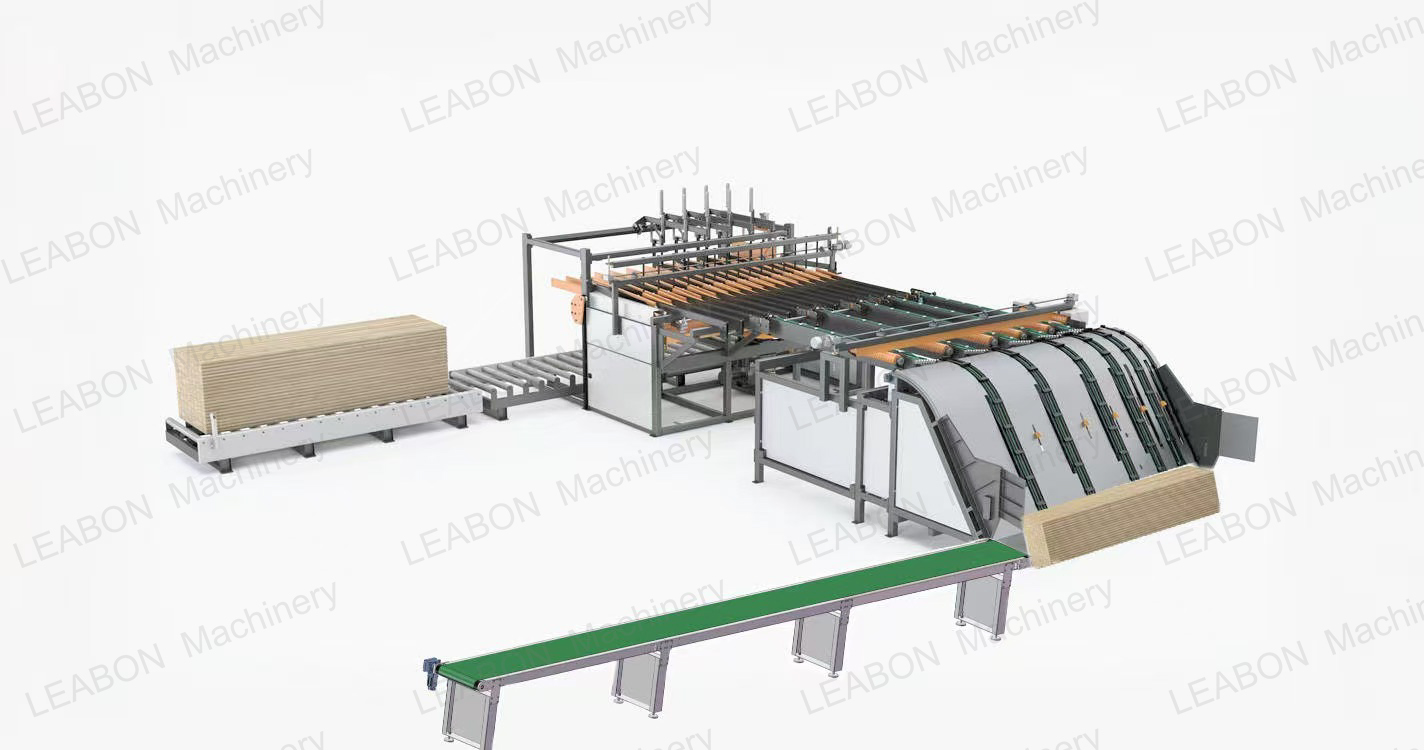

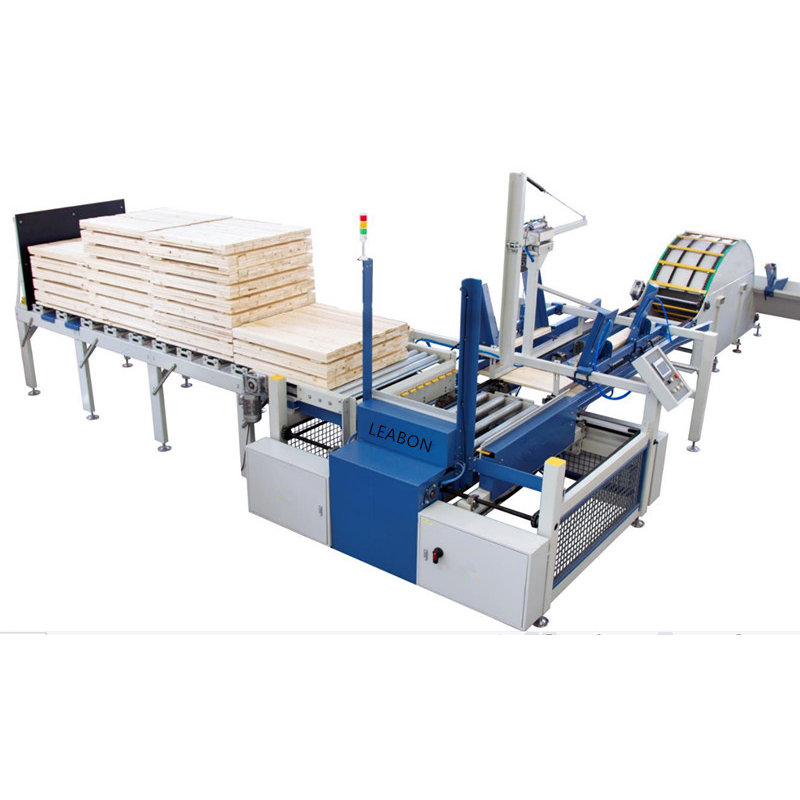

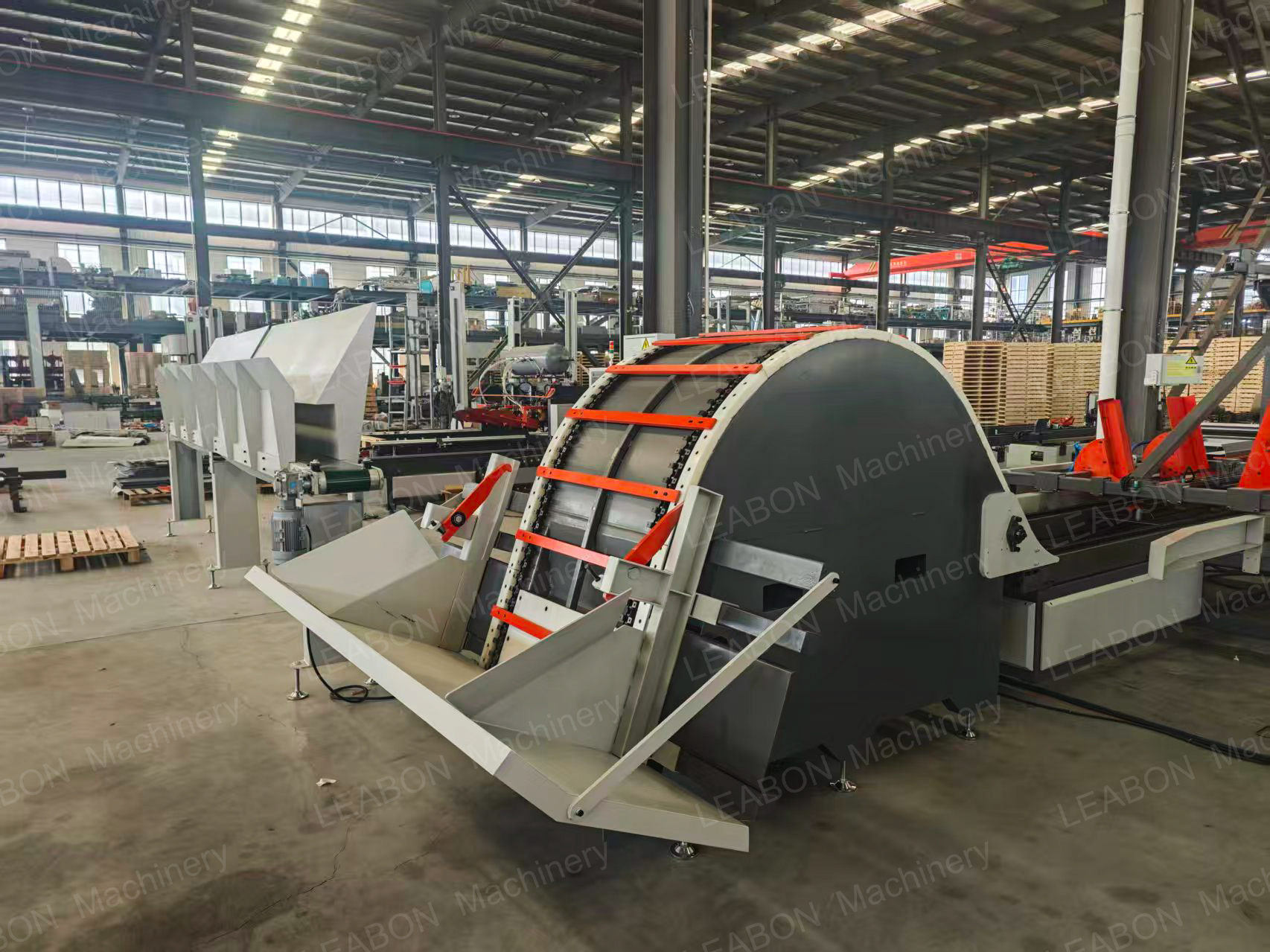

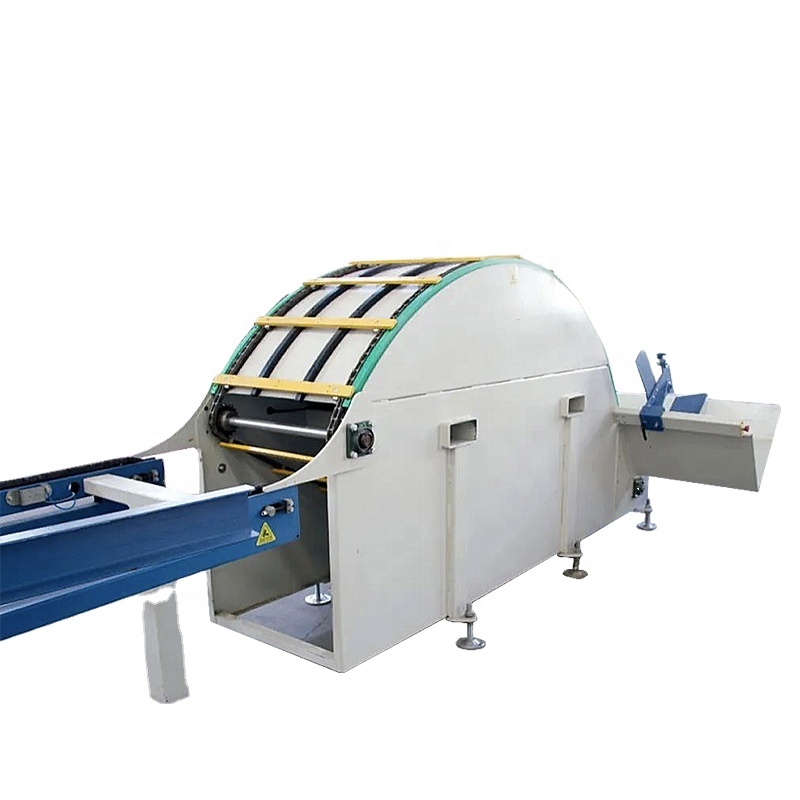

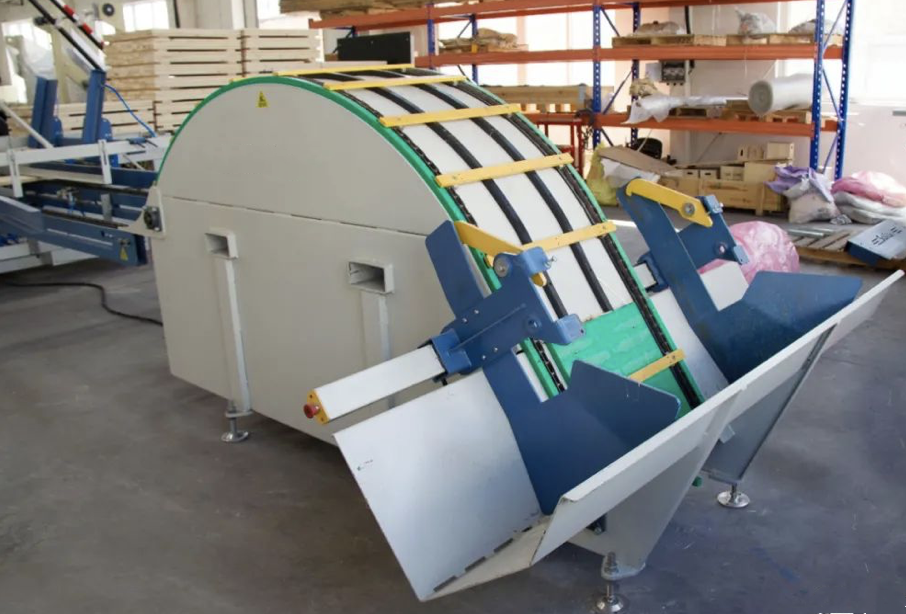

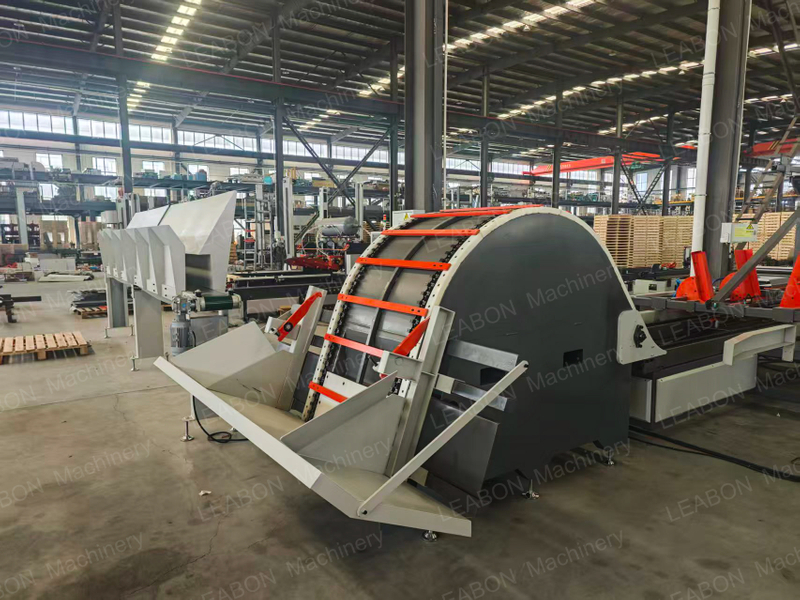

Automatic Planks Stacking Machine
Introduction
Timber finishing equipment is suitable for batch wood finishing.
It can be used for the preparation of wood in the early stage of the equipment, or for the drying/finishing of wood.
The equipment has high operating efficiency, simple operation, numerical control operation, and the number and height of stacking
can be set.
Technical Parameters
| Device model | LB-8010 Pallet Stacker Timber Stacker Wood Planl Palletizer Plate Stacking Machine |
| Operation mode | CNC/Auto Wood Board Stacker /Stacking Machine |
| Stacking length | 900-1350mm |
| Stacking width | 800-1200mm |
| Stacking height | 0-1100mm |
| Length of single board | 900-1350mm |
| Width of single board | 50-200mm |
| Single board thickness | 15-100mm |
| Capacity | 3-4 minutes/1 cube |
| Total power | 12KW |
| Unwind | Artificial |
| Receipt | automatic timber stacking machine |
| Number of operators | 1-2 people |
| Stacking lifting method | mechanical |
| Equipment area | 8.6 m*6.3 m*2.7 m |
| Length of discharge table | Standard 3.6 meters (length can be customized) 1.2 meters multiples |
Technical Parameters
Model | LBMS7x20/25/30 | LBMS9x20/25/30 | LBMS11x20/25/30 | LBMS13x20/25/30 | LBMS15x20/25/30 |
Processing length (cm) | Over 40cm | Over 50cm | Over 70cm |
Minimum working height （cm) | 7 | 9 | 11 | 13 | 15 |
Effective machining width (cm) | 20/25/30 | 20/25/30 | 20/25/30 | 20/25/30 | 20/25/30 |
Saw blade diameter(mm) | 160 | 180 | 210 | 230 | 255 |
Total power equipment(kw) | 31/38/45 | 31/38/45 | 31/38/45 | 38/45/55 | 45/55/61 |
Feeding speed(m/min) | 8m | 8m | 8m | 8m | 8m |
Feeding way | Semi-automatic |
Installation dimensions (m) | 2.2×1.5x1.5 | 2.2×1.5x1.5 | 2.2x1.5x1.5 | 2.2×1.5x1.5 | 2.2x1.5x1.5 |
Equipment quality (kg) | 1450kg | 1500kg | 1550klg | 1600kg | 1700kg |
