Leabon
Product Description

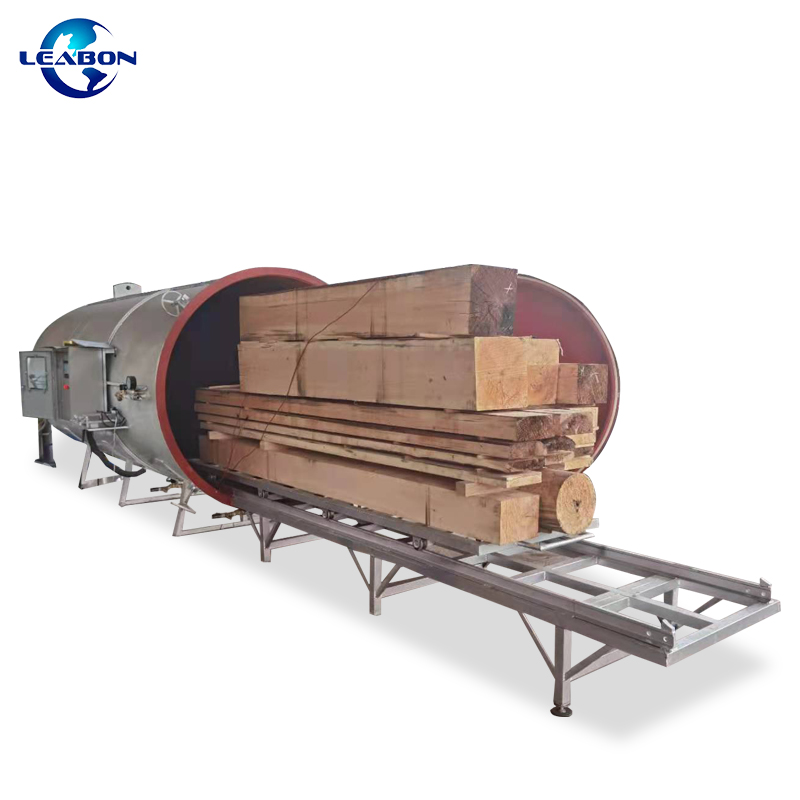

Wood vacuum drying equipment
Vacuum drying of wood is a method of drying wood by stacking it in a closed container under the condition of lower atmospheric pressure. Under vacuum conditions, the boiling point of water decreases and the rate of evaporation increases, thus increasing the drying rate of wood at lower temperatures.
Parameter
Model | MX-2 | MX-3 | MX-5 |
Main machine size (L*W*H) | 3.8*2.1*2.1 M (Including vacuum system) | 4.8*2.1*2.2 M (Including vacuum system) | 6*2.1*2.2 M (Including vacuum system) |
Vacuum pump power | 2.2KW | 3KW | 4KW |
Heating system power | 8KW | 9KW | 60KW |
Configure | 1-Fully automatic P2C touch screen microcomputer control cabinet *1 set. 2-Water ring vacuum pump *1 set. 3-Vacuum pump water tank *1 set. 4-Vacuum pump water inlet solenoid valve *1 set. 5-Vacuum pump intake valve solenoid valve * 1 set. 6-Exhaust solenoid valve *2 sets. 7-Drain solenoid valve *2 sets. 8-Dryer air supply solenoid valve *1 set. 9-High temperature line *1 set. 10-Screen closed line *1 set. 11-Special moisture meter for wood *1 set. 12-Stainless steel probe *8pcs. 13-High temperature fan*1 set. 14-Track car*1 set. 15-PC100 *1 set. 16-Electric control box bracket *1 set. 17-Pressure gauge *1 set. 18-Pressure sensors *1 set. 19-Manual valve *1 set. 20-Vacuum motor *1 set. | 1-Fully automatic P2C touch screen microcomputer control cabinet *1 set. 2-Water ring vacuum pump *1 set. 3-Vacuum pump water tank *1 set. 4-Vacuum pump water inlet solenoid valve *1 set. 5-Vacuum pump intake valve solenoid valve * 1 set. 6-Exhaust solenoid valve *2 sets. 7-Drain solenoid valve *2 sets. 8-Dryer air supply solenoid valve *1 set. 9-High temperature line *1 set. 10-Screen closed line *1 set. 11-Special moisture meter for wood *1 set. 12-Stainless steel probe *8pcs. 13-High temperature fan*1 set. 14-Track car*1 set. 15-PC100 *1 set. 16-Electric control box bracket *1 set. 17-Pressure gauge *1 set. 18-Pressure sensors *1 set. 19-Manual valve *1 set. 20-Vacuum motor *1 set. | 1-Fully automatic P2C touch screen microcomputer control cabinet *1 set. 2-Oil circulation vacuum pump *1 set. 3-Vacuum valve *1 set. 4-Vacuum pump connecting pipe *1 set. 5-Vacuum pump electric valve * 1 set. 6-Exhaust solenoid valve *2 sets. 7-Drain solenoid valve *2 sets. 8-Dryer air supply solenoid valve *1 set. 9-High temperature line *1 set. 10-Screen closed line *1 set. 11-Special moisture meter for wood *1 set. 12-Stainless steel probe *8pcs. 13-Carbonization special high temperature fan 1.50KW 1 set. 14-Track car*1 set. 15-PC100 *1 set. 16-Electric control box bracket *1 set. 17-Pressure gauge *1 set. 18-Pressure sensors *1 set. 19-Manual valve *1 set. 20-Vacuum motor *1 set. 21. Strengthen the insulation layer *1 set. 22. Exhaust water tank *1 set. 23. Exhaust pipe *1 set. |
Applications
It is especially suitable for the drying of thick, hard, large-section square wood (it takes a long time to use conventional drying methods) and precious mahogany wood such as rosewood, wenge, huanghuali, etc., as well as drying of wooden floors.
