Automatic Sawdust Foot Block Machine Pallet Foot Making Machine
Introduction:
1 Easy Operate, only need one worker to operate this machine: automatic feeding, pressing, nailing, length fixed and cutting;
2 High output capacity, high speed, 1200 pieces each hour!
3 Uniform nailing, with same length, completely vertical cutting side
4 Extrusion nailing, with seamless board layer, highly consistent, high quality and high output capacity products;
5 Large size coil nail, adjust the size as you like, foot block, bar, multiple functions, save production cost, improve efficiency, enhance enterprise’s automation process
Machine details:
Item | Description | Specification |
Mechanical specification |
| Model | MDJ-10*10-4 |
1 | Type | Hot pressing machine |
2 | Process target | Wood pallet feet |
3 | Machine type | Four heads |
4 | Nominal voltage | Customed |
5 | Rated power | Customed |
6 | Machine weight | 1300kg |
7 | Scope of application | Shavings sawdust block pieces |
8 | Dimension | 4800*800*1380mm |
9 | The raw material size | 1-5cm Wood chip |
10 | Water content | 10%-12% |
11 | Production capacity | 4-5m³ |
12 | Pressure | 5MPA |
13 | Temperature | 160-180℃ |
14 | Hydraulic motor | 4.5kw |
15 | Heating type | Electric heating, oil heating |

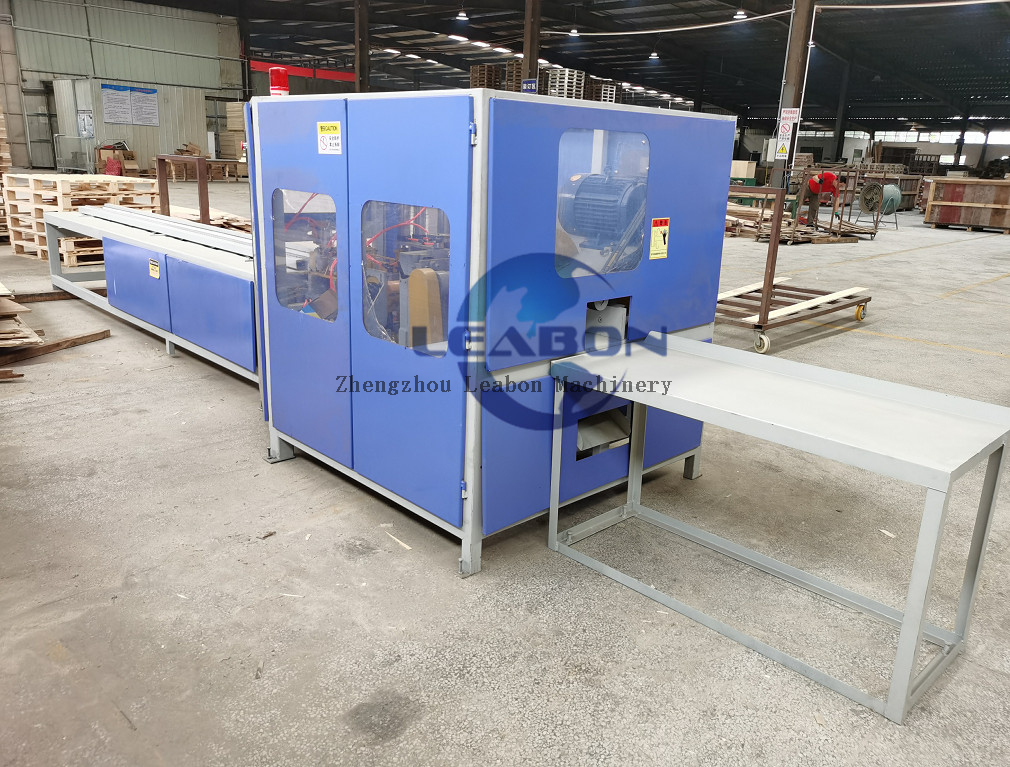

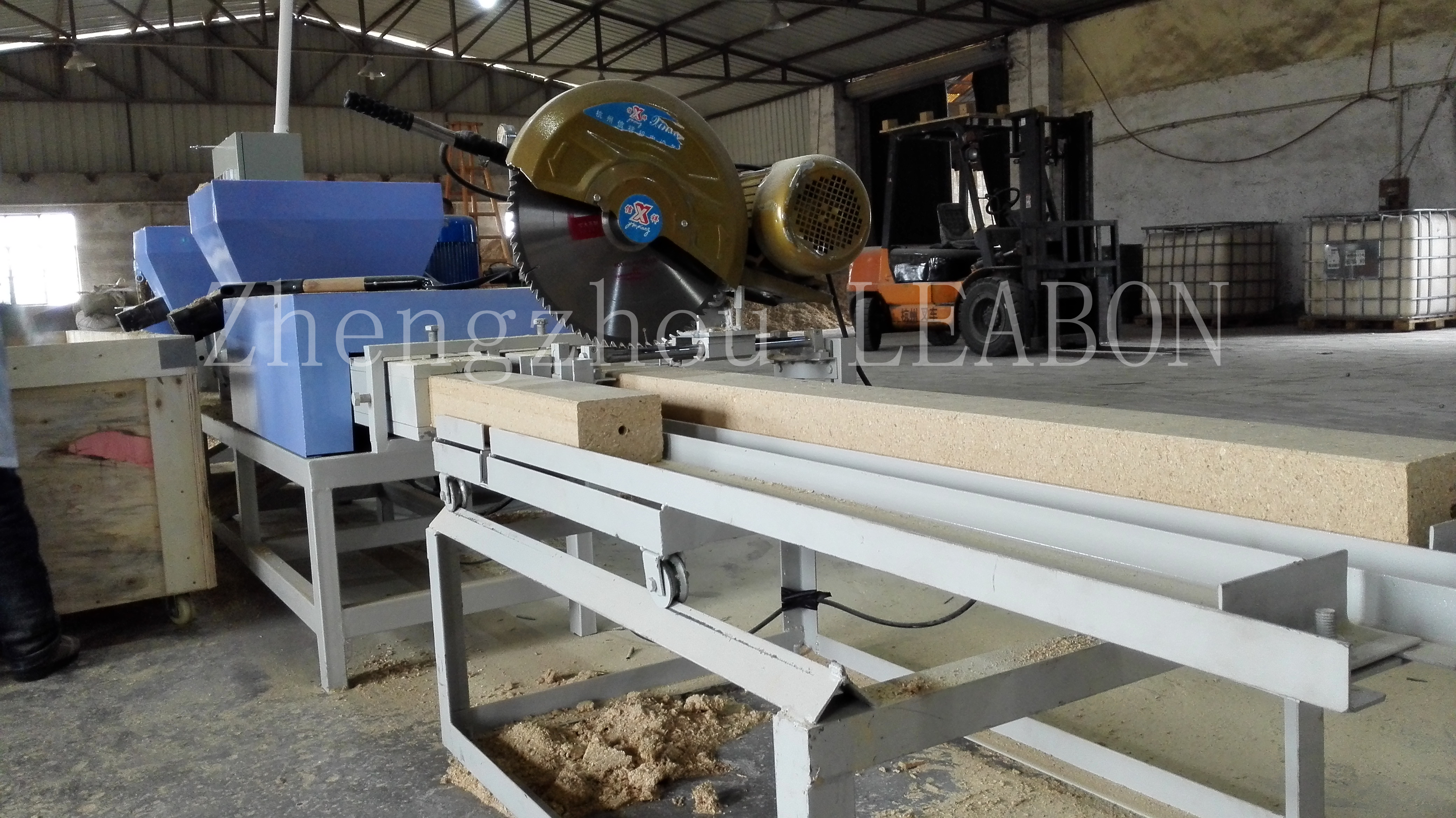

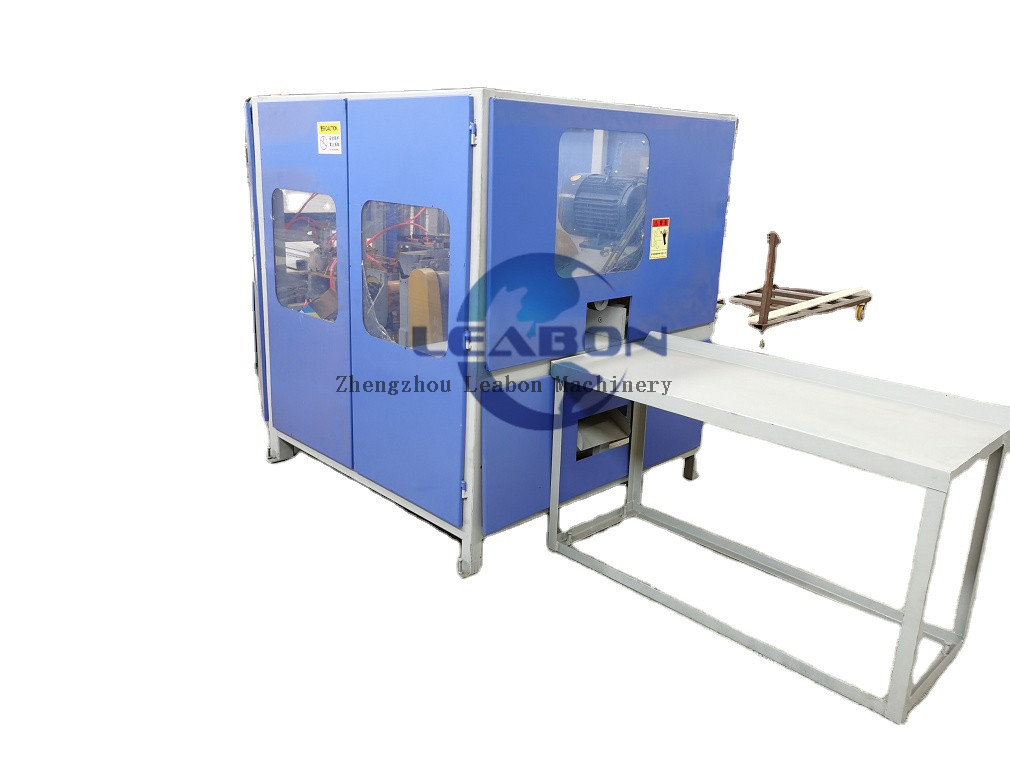

Machine photo:
