| Availability: | |
|---|---|
| Quantity: | |
LB-TP1650N,LB-TP1650F
Leabon

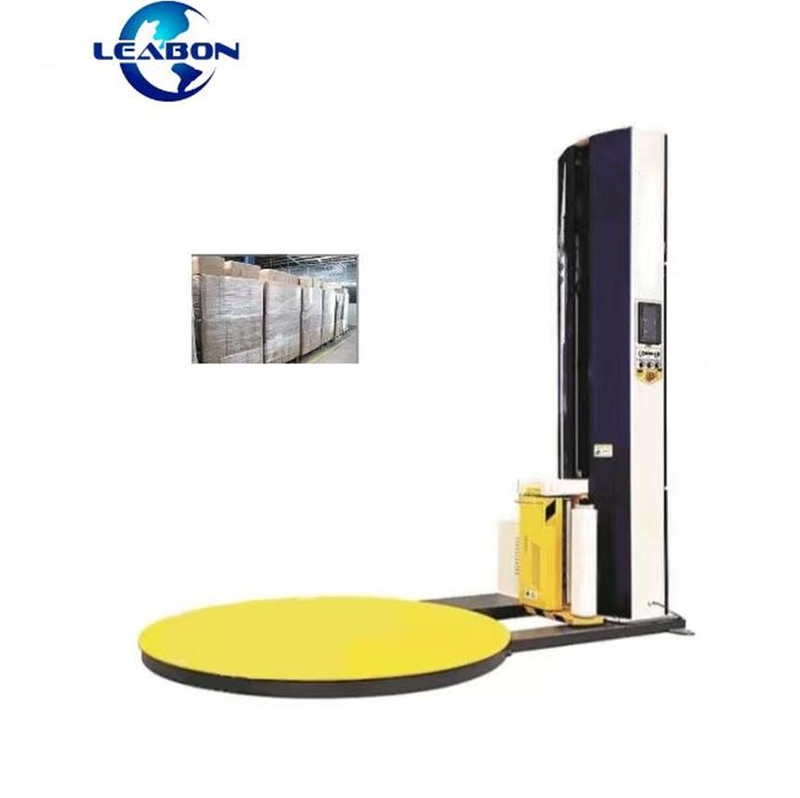

Tray wrapping machine is also known as tray wrapping machine, film wrapping machine, film wrapping packaging machine, etc.The pallet goods are rotated by rotating the turntable, and then the equipment for winding and wrapping the goods is realized. Suitable for packaging of goods shipped on pallets.The selection of pallet winding machine is mainly selected according to the size of the customer's goods.
Winding machines can be divided into tray winding machines, trayless winding machines, online winding machines, horizontal winding machines, self-propelled winding machines,etc.
Advantages and Features
1.8 groups of high-strength nylon rollers,
2.10mm thick support plate
3.12A coarse chain, big gear
4.10mm thick disc
5. Welding after laser cutting and bending
6. Touch screen operation and knob speed regulation
7. Switch between Chinese and English
8. Set the parameters to start with one key and end automatically.
9. You can set a password, and you don't have to worry about debt.
10. It can be jacked, weighed and automatically broken, and can be equipped with slopes and dug pits.
Detail Pictures
High End Pre Stretching Winding Packaging Machine
Equipment model | LB-TP1650N |
Diameter of rotary table | 1650mm |
Wrapping specification | (500-1200 ) mm*(500-1200)mm ( L*W) |
Packaging height | 2000mm/2400mm/2800mm |
Packaging efficiency | 20-40 torr/h |
Turntable speed | 3-12rpm ; Speed variable frequency adjustable |
Turntable diameter | 1650/1800mm/2000mm/2200mm/2400mm/2600mm |
Turntable height | 85mm(Chassis support: square tube specification 100 * 120 * 4; Thickness of reinforcing plate: 10mm) |
Turntable bearing | 2000KG/3000KG |
Membrane rack system | Pre stretching membrane rack, pre stretching up to 250%, automatic film feeding, variable frequency speed regulation |
Lifting column | Variable frequency adjustable lifting speed, 10A double chain transmission mode |
Control system | PLC control, touch screen display, adjustable winding layers and times, automatic reset of turntable, automatic sensing of cargo height |
Column box | Wall thickness 1.5mm; Upper and lower plates 6mm; Inner corner stiffening plate 6mm; Width 400mm |
Operating Weight | 650KG |
Overall dimensions | 2550mm x 1650mm x2485mm |
Power/Voltage | 1.5KW AC220V/50HZ |
Optional | Capping device/weighing device/heightening/weighting |
Pre Stretching Winding Packaging Machine
Equipment model | LB-TP1650F |
Diameter of rotary | 1650mm |
Wrapping specification | (500-1200 ) mmx(500-1200)mm ( L*W) |
Packaging height | 2000mm/2400mm/2800mm |
Packaging efficiency | 20-40 torr/h |
Turntable speed | 3-12rpm; Speed variable frequency adjustable |
Turntable diameter | 1650/1800mm/2000mm/2200mm/2400mm/2600mm |
Turntable height | 85mm (chassis support: square tube specification 100 * 120 * 4; thickness of stiffening plate 10mm) |
Turntable bearing | 2000KG/3000KG |
Membrane rack | Pre stretching membrane rack, pre stretching up to 250%, automatic film feeding, variable frequency speed regulation |
Lifting column | Variable frequency adjustable lifting speed, 10A double chain transmission mode |
Control system | PLC control, touch screen display, adjustable winding layers and times, automatic reset of turntable, automatic sensing of cargo height |
Column box | Wall thickness 1.5mm; Upper and lower plates 6mm; Inner corner stiffening plate 6mm; Width 400mm |
Operating Weight | 650KG |
Overall dimensions | 2550mmxl650mmx2485mm |
Power/Voltage | 1.5KW AC220V/50HZ |
Optional | Capping device/weighing device/heightening/weighting |
Tray wrapping machine is also known as tray wrapping machine, film wrapping machine, film wrapping packaging machine, etc.The pallet goods are rotated by rotating the turntable, and then the equipment for winding and wrapping the goods is realized. Suitable for packaging of goods shipped on pallets.The selection of pallet winding machine is mainly selected according to the size of the customer's goods.
Winding machines can be divided into tray winding machines, trayless winding machines, online winding machines, horizontal winding machines, self-propelled winding machines,etc.
Advantages and Features
1.8 groups of high-strength nylon rollers,
2.10mm thick support plate
3.12A coarse chain, big gear
4.10mm thick disc
5. Welding after laser cutting and bending
6. Touch screen operation and knob speed regulation
7. Switch between Chinese and English
8. Set the parameters to start with one key and end automatically.
9. You can set a password, and you don't have to worry about debt.
10. It can be jacked, weighed and automatically broken, and can be equipped with slopes and dug pits.
Detail Pictures
High End Pre Stretching Winding Packaging Machine
Equipment model | LB-TP1650N |
Diameter of rotary table | 1650mm |
Wrapping specification | (500-1200 ) mm*(500-1200)mm ( L*W) |
Packaging height | 2000mm/2400mm/2800mm |
Packaging efficiency | 20-40 torr/h |
Turntable speed | 3-12rpm ; Speed variable frequency adjustable |
Turntable diameter | 1650/1800mm/2000mm/2200mm/2400mm/2600mm |
Turntable height | 85mm(Chassis support: square tube specification 100 * 120 * 4; Thickness of reinforcing plate: 10mm) |
Turntable bearing | 2000KG/3000KG |
Membrane rack system | Pre stretching membrane rack, pre stretching up to 250%, automatic film feeding, variable frequency speed regulation |
Lifting column | Variable frequency adjustable lifting speed, 10A double chain transmission mode |
Control system | PLC control, touch screen display, adjustable winding layers and times, automatic reset of turntable, automatic sensing of cargo height |
Column box | Wall thickness 1.5mm; Upper and lower plates 6mm; Inner corner stiffening plate 6mm; Width 400mm |
Operating Weight | 650KG |
Overall dimensions | 2550mm x 1650mm x2485mm |
Power/Voltage | 1.5KW AC220V/50HZ |
Optional | Capping device/weighing device/heightening/weighting |
Pre Stretching Winding Packaging Machine
Equipment model | LB-TP1650F |
Diameter of rotary | 1650mm |
Wrapping specification | (500-1200 ) mmx(500-1200)mm ( L*W) |
Packaging height | 2000mm/2400mm/2800mm |
Packaging efficiency | 20-40 torr/h |
Turntable speed | 3-12rpm; Speed variable frequency adjustable |
Turntable diameter | 1650/1800mm/2000mm/2200mm/2400mm/2600mm |
Turntable height | 85mm (chassis support: square tube specification 100 * 120 * 4; thickness of stiffening plate 10mm) |
Turntable bearing | 2000KG/3000KG |
Membrane rack | Pre stretching membrane rack, pre stretching up to 250%, automatic film feeding, variable frequency speed regulation |
Lifting column | Variable frequency adjustable lifting speed, 10A double chain transmission mode |
Control system | PLC control, touch screen display, adjustable winding layers and times, automatic reset of turntable, automatic sensing of cargo height |
Column box | Wall thickness 1.5mm; Upper and lower plates 6mm; Inner corner stiffening plate 6mm; Width 400mm |
Operating Weight | 650KG |
Overall dimensions | 2550mmxl650mmx2485mm |
Power/Voltage | 1.5KW AC220V/50HZ |
Optional | Capping device/weighing device/heightening/weighting |
