2-5T/H CE Certification Hard Wood Pellet Mill Price
Introduction:
Ring die wood pellet mill is widely used in compacting of wood, straw, other biomass sources into pellet. Capacity ranges from 1T to 10T per hour. Our LB series pellet mill adopt SKF bearings from Sweden and NSK bearings from Japan, Siemens motors, high quality components make the pellet mill more efficient and durabl
Advantages of ring die pellet mill
Ring die pellet mill is designed more advanced and complex than flat die pellet mill. There are also two main advantages of ring die pellet mills. Firstly, ring die pellet mill generate less wear and tear when pelletizing. Secondly, it is more energy efficient than the flat die pellet mill. These factors have led to ring die pellet mills being adopted in most large scale pellet production lines. The ring die pellet mill will be much easier to produce high quality pellets and high efficiency output.
Features:
1) Adopt high-precision gear drive advanced flexible coupling, for high productive efficiency.
2) Main driving adopt imported SKF (NSK) bearing, NSK oil seal and Siemens motor
3) Frequency converter control feeder flow, full stainless steel feeder, cover and chute.
4) Full stainless steel lengthened conditioner; both paddle and shaft are made of stainless steel.
5) Frequency converter control feeder flow, full stainless steel feeder, cover and chute.
6) With CE certificate
7) Available for testing before delivery.
Technical parameter:
Model | MainPower | Capacity | Feeding Power | Conditioner Power (KW) | Die Diameter |
LH- 320 | 37 | 0.2-0.3 | 1.5 | 2.2 | 320 |
LH- 350 | 55 | 0.5-0.7 | 1.5 | 3 | 350 |
LH- 420 | 90 | 0.8-1.2 | 2.2 | 5.5 | 420 |
LH- 480 | 90 | 1.0-1.3 | 2.2 | 5.5 | 480 |
LH- 508 | 132 | 1.7-2.2 | 2.2 | 5.5 | 508 |
LH- 558 | 160 | 2.0-2.5 | 2.2 | 5.5 | 572 |
LH- 678 | 185 | 2.5-3.5 | 3 | 11 | 678 |
LH- 768 | 250 | 4.0-5.5 | 4 | 18.5 | 768 |

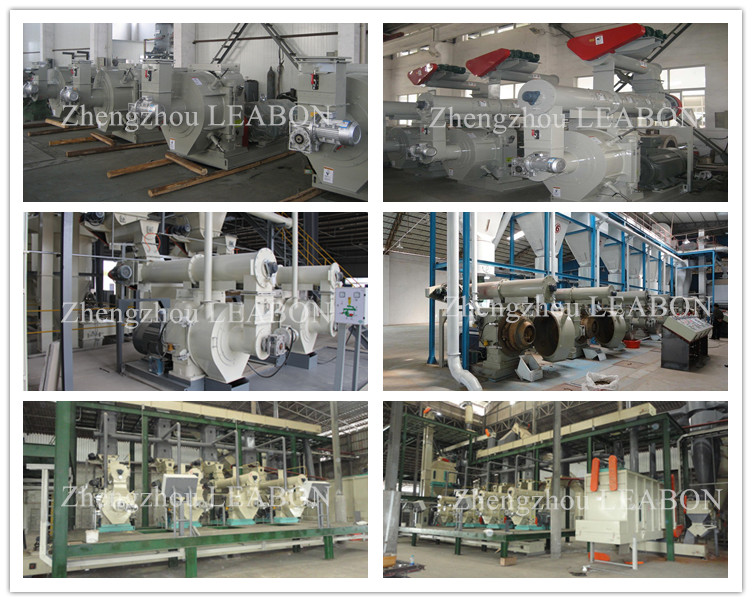

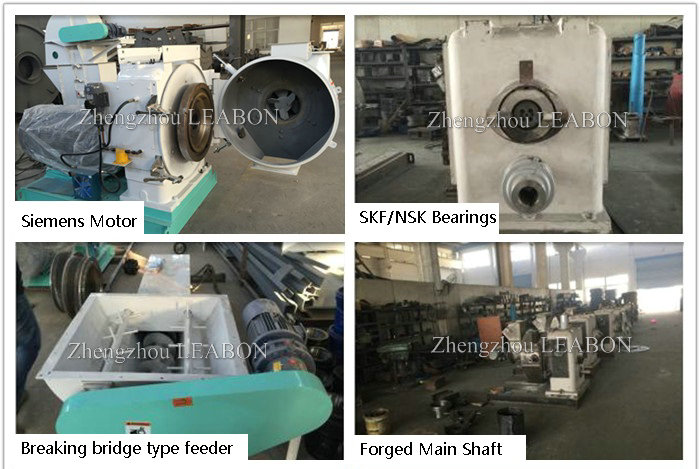

Details Pictures of Wood Pellet Machine:

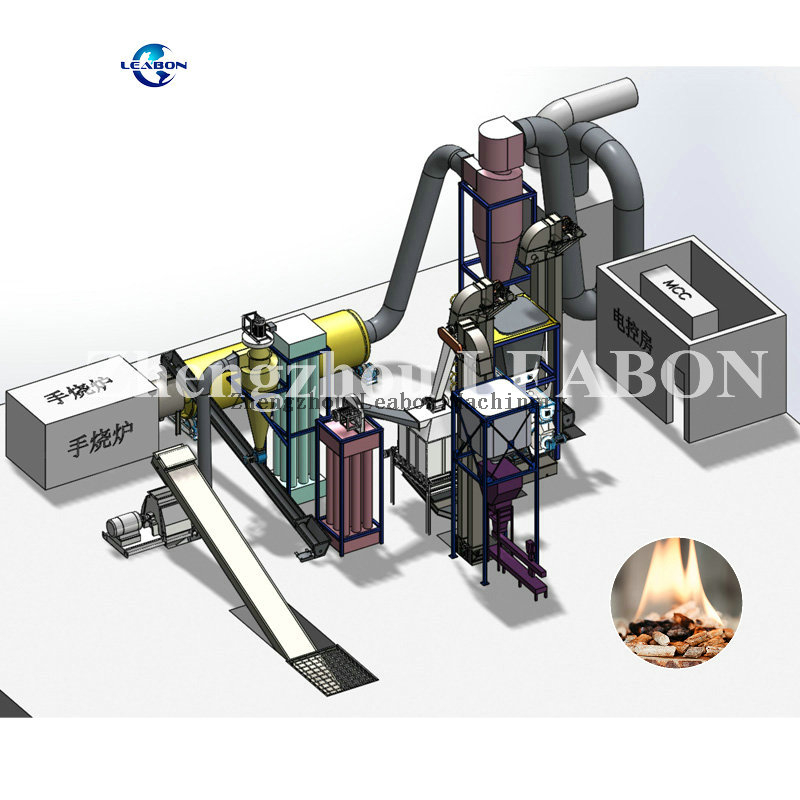

Complete Wood Pellet Production Line
2-5T/H CE Certification Hard Wood Pellet Mill Price
Introduction:
Ring die wood pellet mill is widely used in compacting of wood, straw, other biomass sources into pellet. Capacity ranges from 1T to 10T per hour. Our LB series pellet mill adopt SKF bearings from Sweden and NSK bearings from Japan, Siemens motors, high quality components make the pellet mill more efficient and durabl
Advantages of ring die pellet mill
Ring die pellet mill is designed more advanced and complex than flat die pellet mill. There are also two main advantages of ring die pellet mills. Firstly, ring die pellet mill generate less wear and tear when pelletizing. Secondly, it is more energy efficient than the flat die pellet mill. These factors have led to ring die pellet mills being adopted in most large scale pellet production lines. The ring die pellet mill will be much easier to produce high quality pellets and high efficiency output.
Features:
1) Adopt high-precision gear drive advanced flexible coupling, for high productive efficiency.
2) Main driving adopt imported SKF (NSK) bearing, NSK oil seal and Siemens motor
3) Frequency converter control feeder flow, full stainless steel feeder, cover and chute.
4) Full stainless steel lengthened conditioner; both paddle and shaft are made of stainless steel.
5) Frequency converter control feeder flow, full stainless steel feeder, cover and chute.
6) With CE certificate
7) Available for testing before delivery.
Technical parameter:
Model | MainPower | Capacity | Feeding Power | Conditioner Power (KW) | Die Diameter |
LH- 320 | 37 | 0.2-0.3 | 1.5 | 2.2 | 320 |
LH- 350 | 55 | 0.5-0.7 | 1.5 | 3 | 350 |
LH- 420 | 90 | 0.8-1.2 | 2.2 | 5.5 | 420 |
LH- 480 | 90 | 1.0-1.3 | 2.2 | 5.5 | 480 |
LH- 508 | 132 | 1.7-2.2 | 2.2 | 5.5 | 508 |
LH- 558 | 160 | 2.0-2.5 | 2.2 | 5.5 | 572 |
LH- 678 | 185 | 2.5-3.5 | 3 | 11 | 678 |
LH- 768 | 250 | 4.0-5.5 | 4 | 18.5 | 768 |

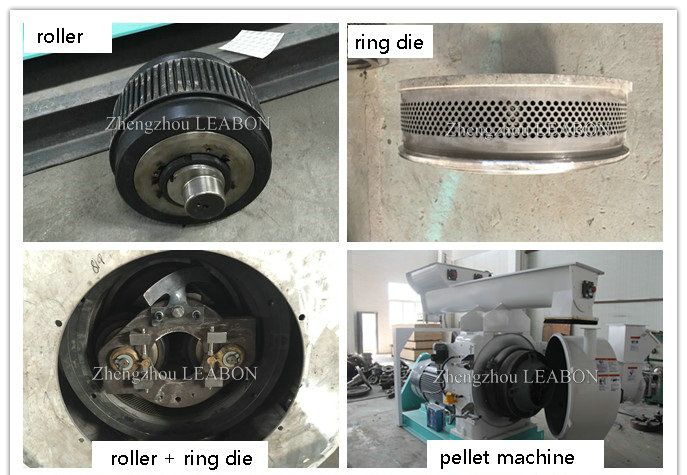

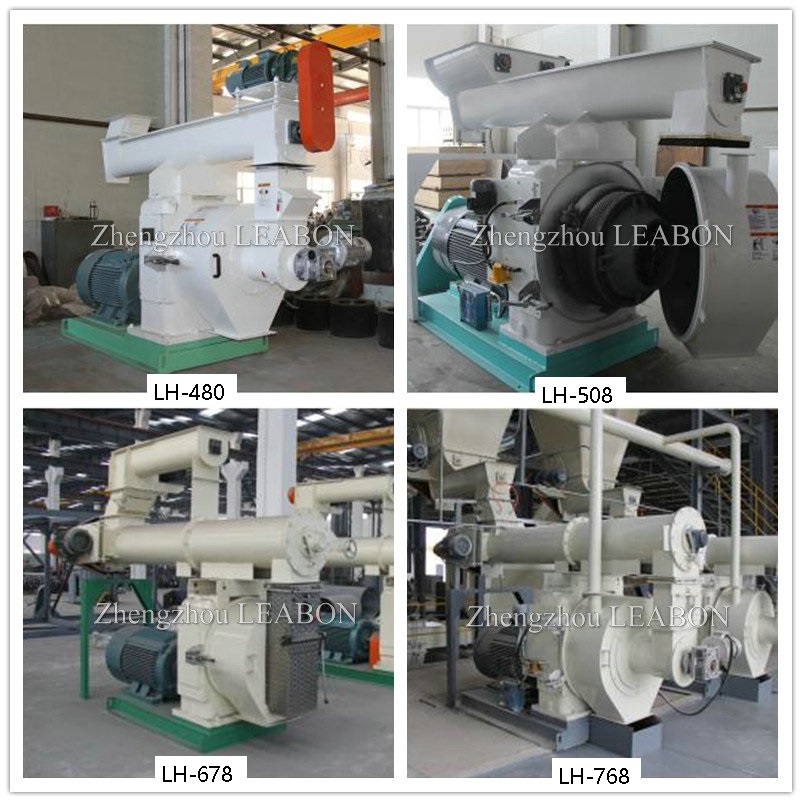

Details Pictures of Wood Pellet Machine:
Complete Wood Pellet Production Line
Model | Main Power (KW) | Capacity (t/h) | Feeding Power(KW) | Conditioner Power(KW) | Die Diameter (mm) | Pellet size (mm) |
LB- 508 | 132 | 1.7-2.2 | 2.2 | 5.5 | 508 | 6,8,10,12 |
Model | Main Power (KW) | Capacity (t/h) | Feeding Power(KW) | Conditioner Power(KW) | Die Diameter (mm) | Pellet size (mm) |
LB- 508 | 132 | 1.7-2.2 | 2.2 | 5.5 | 508 | 6,8,10,12 |
