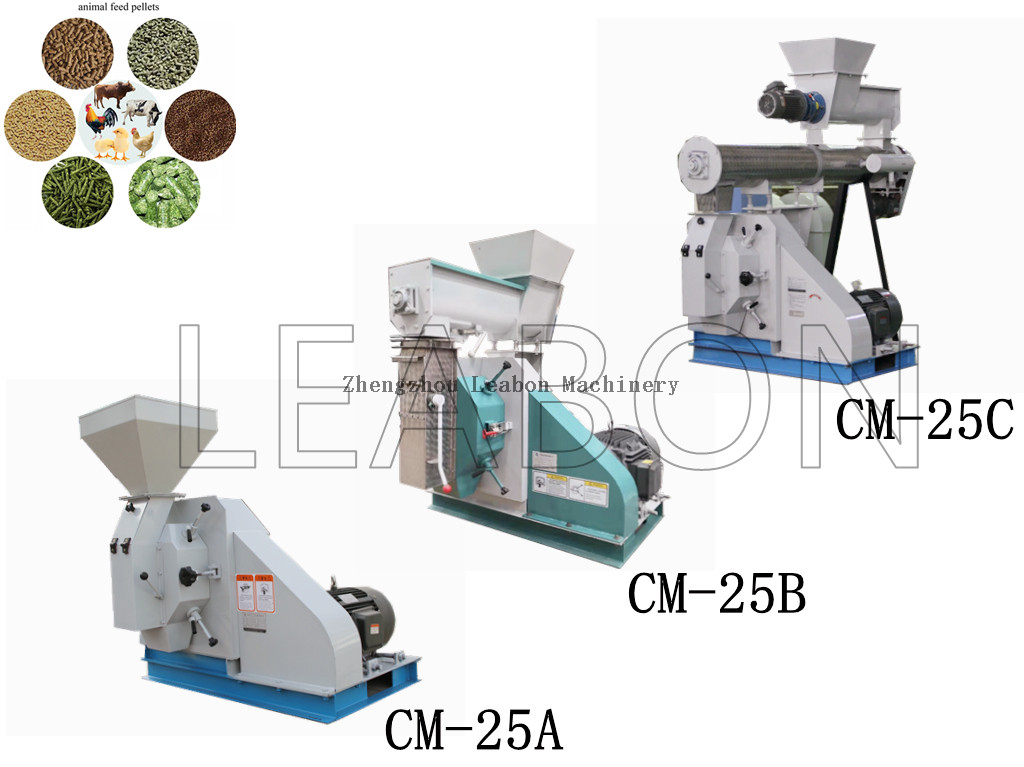

CM Series Ring Mould Feed Processing Machine is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for checmical industry, fertilizer and industry and sugar industry.
Main date
Model No.
CM-25A
CM-25B
CM-30C
Output(kg/h)
1000
1000-1500
1000-2000
Power (kw)
22
22
22
Feeding motor(kw)
0.75
0.75
1.85
Revolving Speed of ring die (r/min)
306
306
306
Inside diameter of ring die(mm)
250
250
250
Pellet diameter(mm)
Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8
Dimension(m)
1.1*1.15.1.25
1.1*1.15*1.25
1.1*1.86*1.6
Weight(kgs)
625
710
900
Features
1. Drive mechanism adopts high strength belt, with steady running and low noise; 2. Drive mechanism adopts high quality bearing to ensure high speed and stable operation; 3. Feeding part is equipped with a permanent magnet to remove metallic impurities; this prolongs the service life of main parts and meanwhile reduce the use of auxiliary equipment.
CM Series Ring Mould Feed Processing Machine is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for checmical industry, fertilizer and industry and sugar industry.
Main date
Model No.
CM-25A
CM-25B
CM-30C
Output(kg/h)
1000
1000-1500
1000-2000
Power (kw)
22
22
22
Feeding motor(kw)
0.75
0.75
1.85
Revolving Speed of ring die (r/min)
306
306
306
Inside diameter of ring die(mm)
250
250
250
Pellet diameter(mm)
Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8
Dimension(m)
1.1*1.15.1.25
1.1*1.15*1.25
1.1*1.86*1.6
Weight(kgs)
625
710
900
Features
1. Drive mechanism adopts high strength belt, with steady running and low noise; 2. Drive mechanism adopts high quality bearing to ensure high speed and stable operation; 3. Feeding part is equipped with a permanent magnet to remove metallic impurities; this prolongs the service life of main parts and meanwhile reduce the use of auxiliary equipment.
Spare parts(Ring Die + Rollers)
Ring die (Working life of 1500-2000 tons)
Roller (Working life of 500 tons)
Raw Materials
Final pellets
Application
