Introduction 1. The new product LB series “double vertical ring-die pellet mill”, Research, Design,Produced by ourselves, With alone shape,more reasonable structure and stability, Professional for Wood,Rice husk,Peanut shell,Bamboo and Palm fiber etc. 2. Gearbox: Continue the New generation gearbox, Driving with high-precision gears, Automatic Lubricant pump system keep the gearbox working stability and warranty period 3. Vertical motor: the most characteristic is mounting hole with output shaft as the center,Equidistant distribution around, More powerful and stability of machine working 4. Blower system: Located in one side of work bin, Free control the working time,The main function is dedusting and discharge steam 5. Working parts: Ring-die and rollers materials are alloy steel, Heat treatment made by ourselves,Hardness more than 52,In this hardness can assure the pelleting quality and warranty time.
Product Description

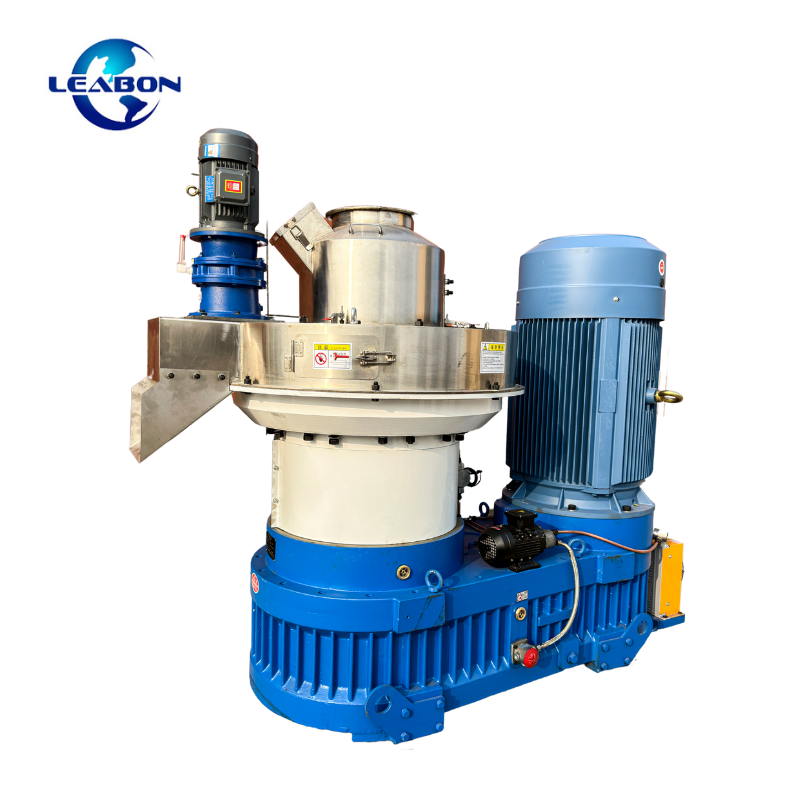

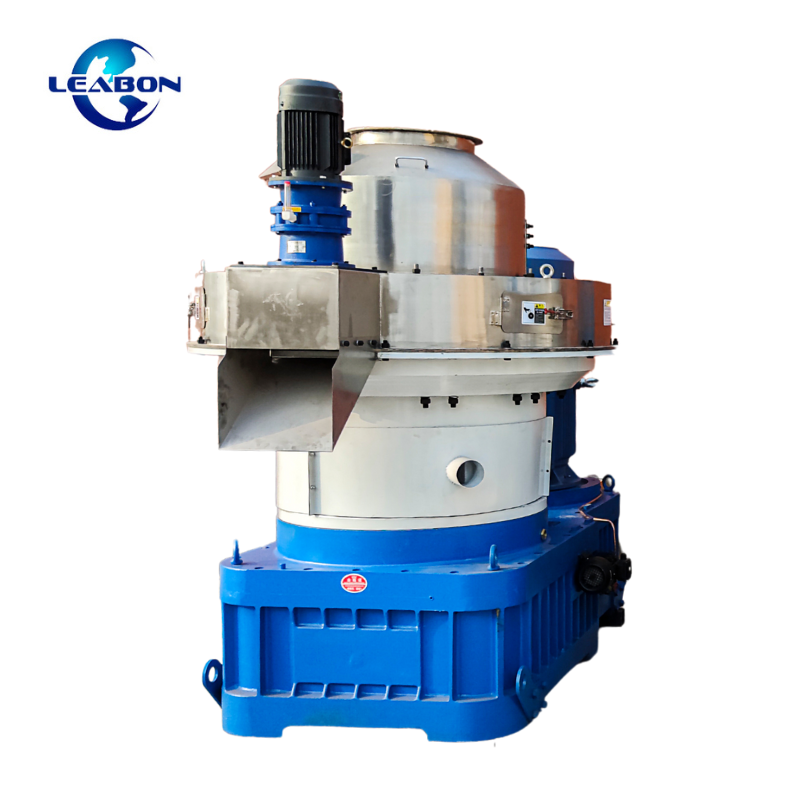

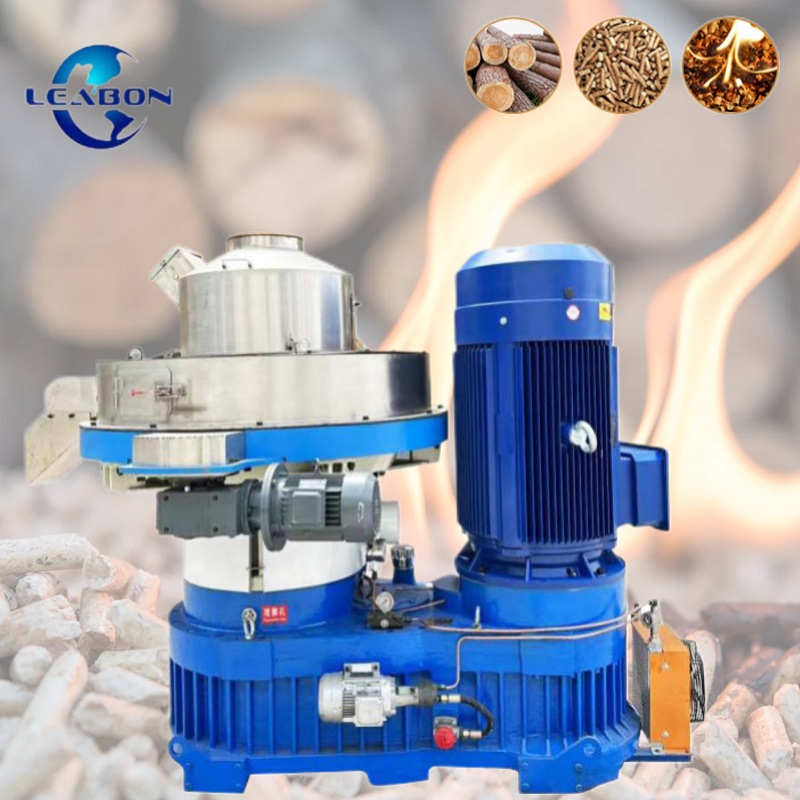

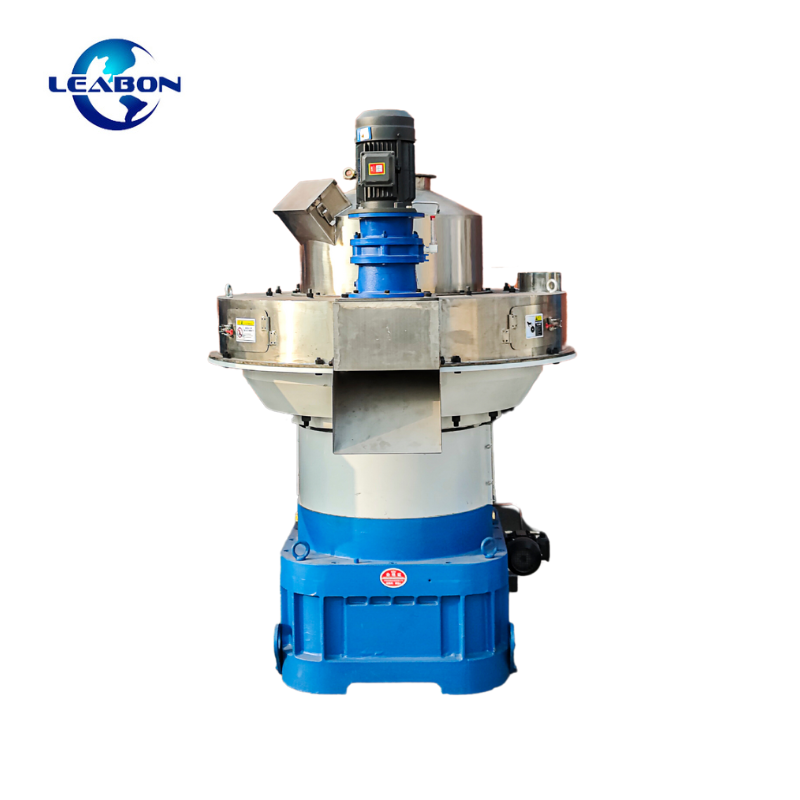

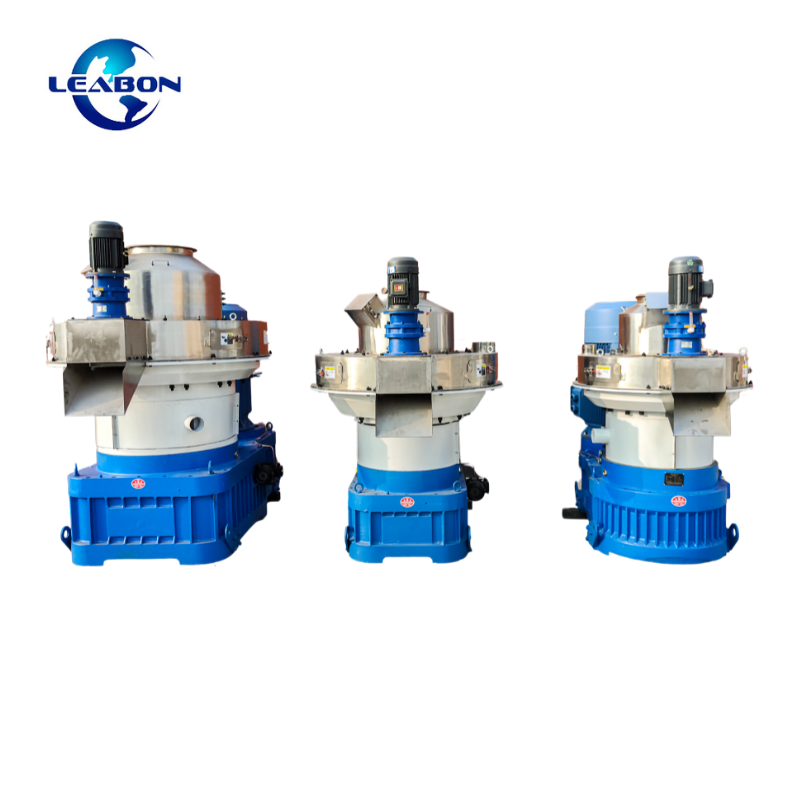

1-4T/H Biomass Vertical Ring Die Wood Pellet Mill Wood Sawdust Pellet Making Machine
Introduction- Pellet Machine
1. The new product LB series “double vertical ring-die pellet mill”, Research, Design,Produced by ourselves, With alone shape,more reasonable structure and stability, Professional for Wood,Rice husk,Peanut shell,Bamboo and Palm fiber etc.
2. Gearbox: Continue the New generation gearbox, Driving with high-precision gears, Automatic Lubricant pump system keep the gearbox working stability and warranty period
3. Vertical motor: the most characteristic is mounting hole with output shaft as the center,Equidistant distribution around, More powerful and stability of machine working
4. Blower system: Located in one side of work bin, Free control the working time,The main function is dedusting and discharge steam
5. Working parts: Ring-die and rollers materials are alloy steel, Heat treatment made by ourselves,Hardness more than 52,In this hardness can assure the pelleting quality and warranty time.
Main Data of Wood Pellet Mill
Model
Power(kw)
Capacity(t/h)
Weight(kg)
Size(mm)
LB560
90KW 280model
1-1.2
4200
2300*1250*1950
110KW 315model
1.2-1.5
4500
2300*1250*1950
132KW 315model
1.5-2
5000
2300*1250*2100
LB700
160KW 315model
2.5-3
6200
2800*1400*2100
LB850
220KW 315model
3-4
10400
3200*1630*2300

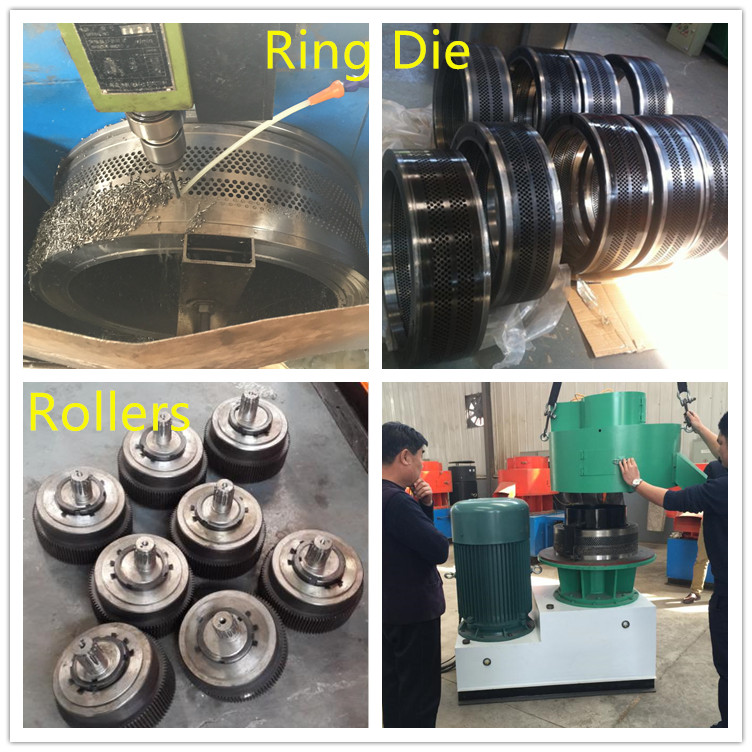

Spare Parts of Sawdust Pellet Machine: Ring Die + Roller
Final Wood Pellets Product as Fuel:
